Hart Cooley 075057 Supply Register 30x6 White Steel

Product Description

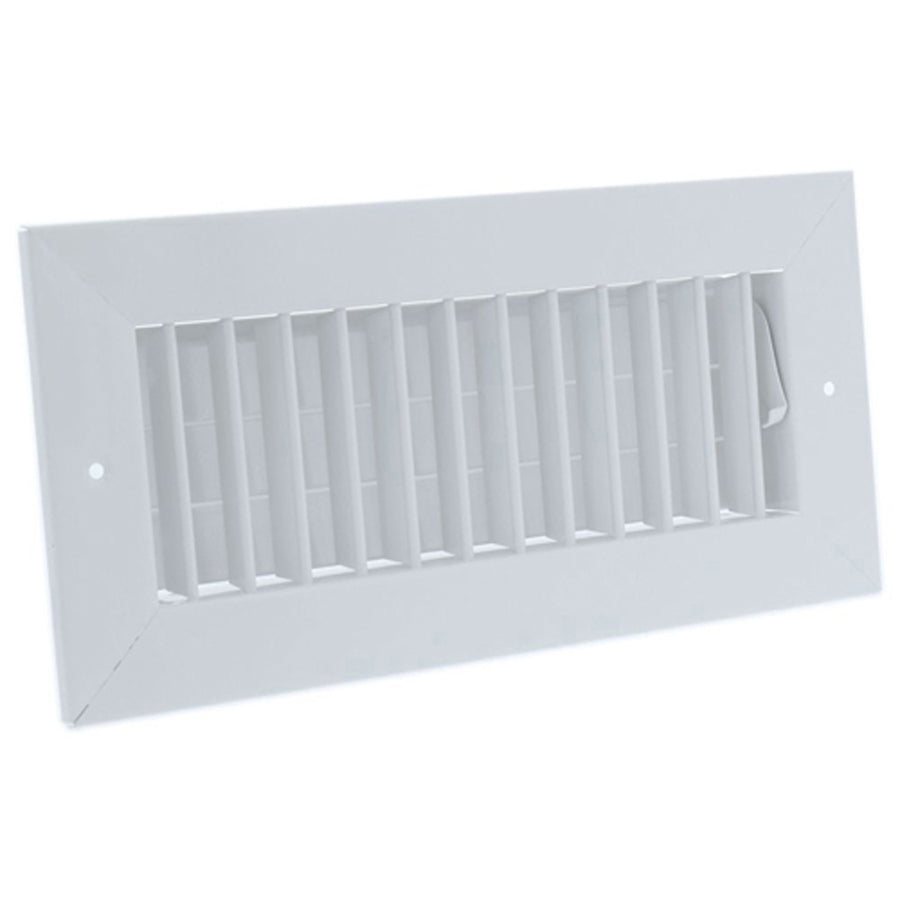

The HART COOLEY 075057 is a steel supply register designed for residential and light commercial forced-air HVAC systems. Finished in bright white enamel, it measures 31-7/8 inches wide by 7-7/8 inches tall with a depth of 2-1/4 inches. The register features vertical adjustable face bars for directional airflow control and a horizontal multi-shutter valve that allows the technician or installer to regulate or shut off airflow to the zone. The one-piece construction keeps the unit rigid and simplifies installation. HVAC technicians and installers use this register as the visible termination point for supply duct runs in walls or ceilings.

This supply register is suited for standard residential supply duct openings in forced-air heating and cooling systems. The 30 x 6 nominal size fits common framed-wall and floor-joist duct openings. The bright white enameled finish blends with standard interior trim and drywall. The adjustable face bars let the installer direct conditioned air horizontally across the room, while the multi-shutter valve provides zone-level volume control without requiring a separate damper component.

Key Features

• Bright white enameled steel construction for durability and clean appearance
• Vertical adjustable face bars for directional airflow control
• Horizontal multi-shutter valve for airflow volume regulation
• One-piece design for structural rigidity and straightforward installation
• 3/4 inch fin spacing for balanced air distribution
• Nominal 30 x 6 size fits standard supply duct openings

Compatibility

Designed as an OEM-style replacement or new-installation supply register for standard 30 x 6 nominal supply duct openings in residential and light commercial forced-air HVAC systems.

Installation Notes

Supply registers are installed by HVAC technicians or qualified installers. Power down the air handling unit or furnace before working on duct terminations. The register face frame seats against the wall, floor, or ceiling surface and is typically secured with screws through the face frame into the surrounding finish material. Adjust the face bars and multi-shutter valve after system startup to balance airflow to the space.

Technical Specifications

• Material: Steel
• Finish: Bright White Enameled
• Overall Width: 31-7/8 inches
• Overall Height: 7-7/8 inches
• Overall Depth: 2-1/4 inches
• Fin Spacing: 3/4 inch
• Face Bar Type: Vertical Adjustable
• Actuation Type: Horizontal Multi-Shutter Valve
• Construction: 1-Piece

Standard Information

• Brand: HART COOLEY
• Manufacturer Part Number: 075057
