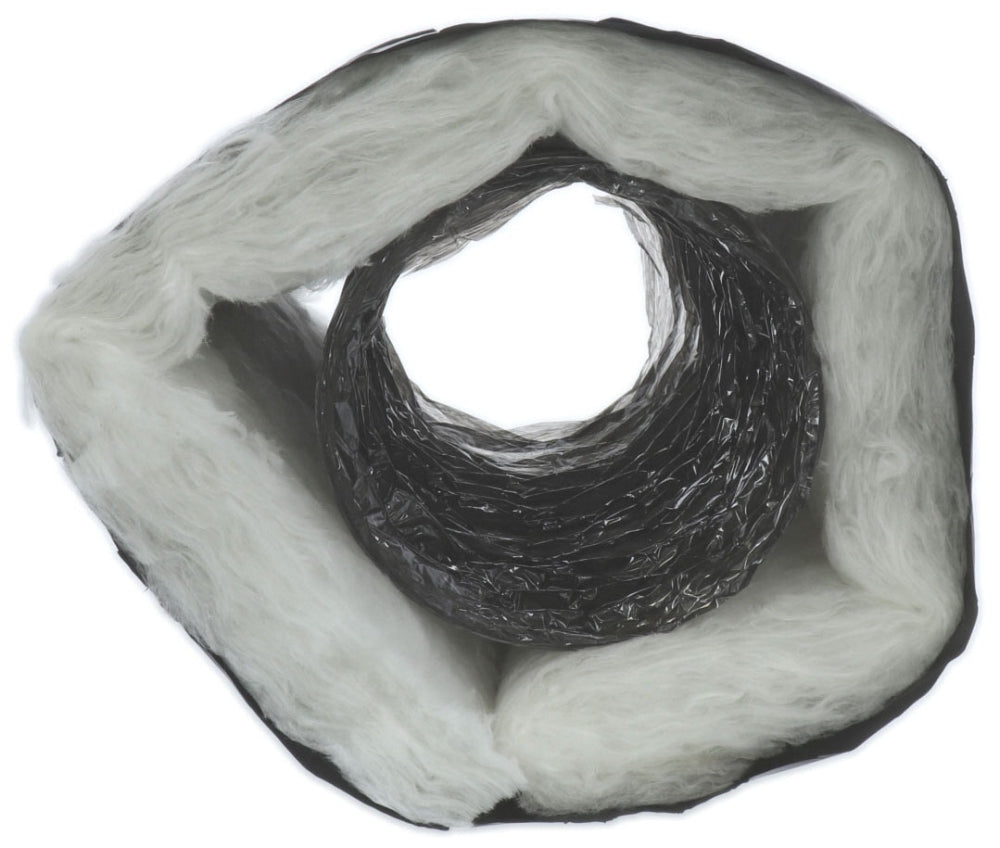

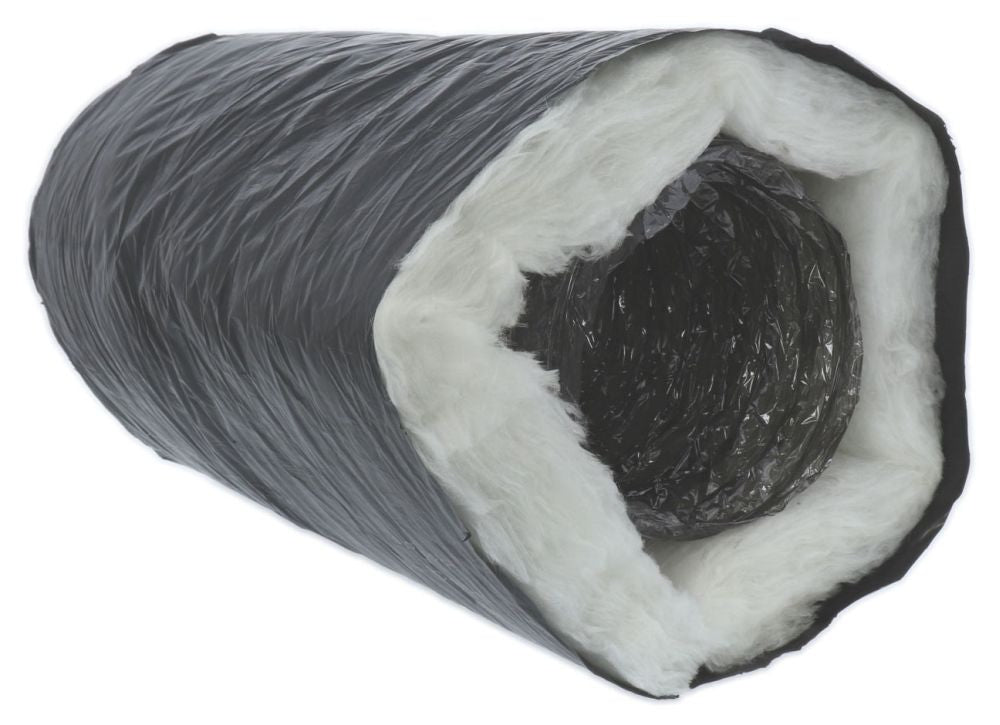

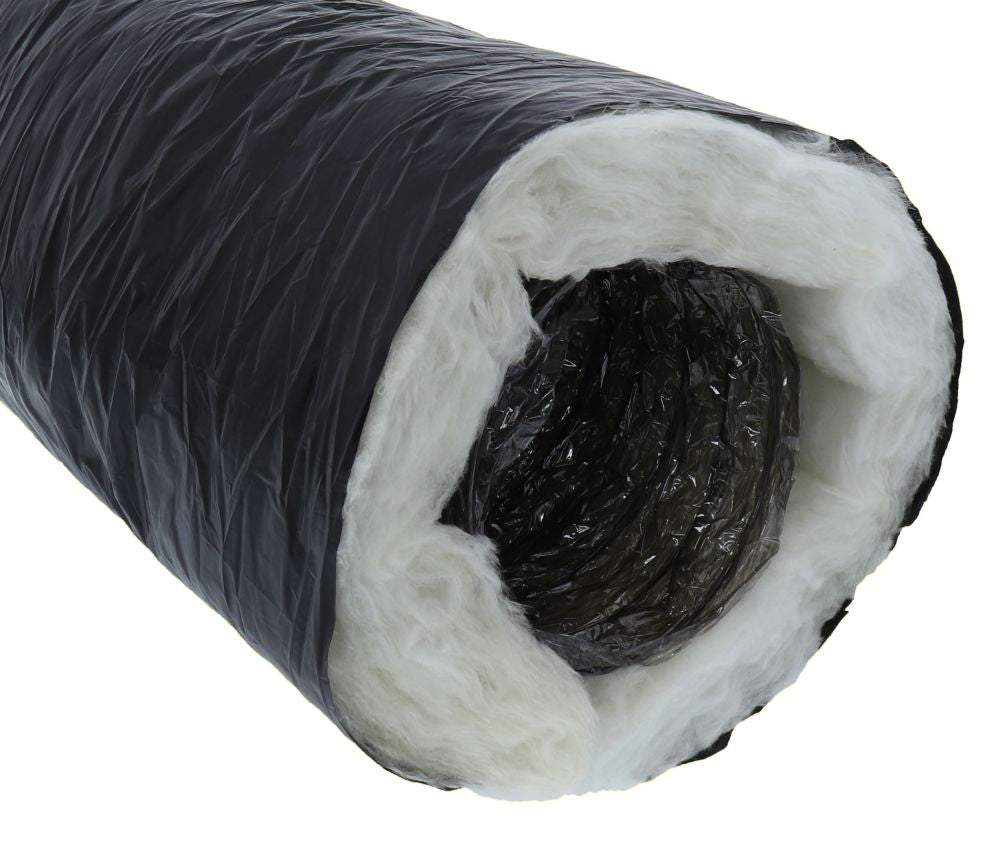

The HART & COOLEY 051318 Hc F116 Poly Flex Duct is a flexible air duct with R-6 insulation. It features a black polyethylene jacket and a 2-ply black polyester core. Suitable for residential and light commercial applications, this duct has an air velocity of 5000 FPM and complies with UL 181, NFPA 90A/90B, HUD, IMC, UMC, CHPS, and GREENGUARD standards.
Durable, scuff-resistant black polyethylene vapor barrier provides improved protection against damaging ultra-violet light
Reinforcing fiberglass yarn scrim acts as a rip-stop and helps prevent tearing for easy installation
Flame spread less than 25, smoke developed less than 50
Product Highlights
Durable and easy to install, this flexible air duct is ideal for residential and light commercial use, ensuring efficient air handling.
Product Information
Standard Information
Brand: HART & COOLEY
Manufacturer Part Number: 051318
Technical Specifications
Air Velocity
5000 FPM
Applicable Standard
UL 181, NFPA 90A/90B, HUD, IMC, UMC, CHPS, GREENGUARD
Burning Character
Flame Spread Less than 25, Smoke Developed Less than 50
Catalog Number
051318
Customer UPC
68404851318
Category
HVAC/R & Fans
Core Material
2-Ply Black Polyester
Insulation Type
R-6
Jacket Material
Black Polyethylene
Length
25 Foot
Manufacturer Name
Hart & Cooley
Manufacturer Part Number
051318
Manufacturer Part Number Additional
F116_12X25FT
Rated Negative Pressure
3/4 Inch WC Negative per UL 181
Rated Positive Pressure
12 Inch WC Positive per UL 181
Series/Model
F116
Temperature Rating
-20 to 250 Deg F (Intermittent), -20 to 140 Deg F (Continuous)
UNSPSC Code
40141901
Width
12 Inch
Diameter
12
Material Type
Polyester
Maximum Airflow
5000
R value
R6
UL Listed
UL 181 Class 1
UPC
684048513182
Vent Duct Shape
Round
Additional Information
Application Residential and Light Commercial; Packaging Type Bagged
