Hart & Cooley 051317 HC F116 10X25 Poly Flex Duct

Product Description

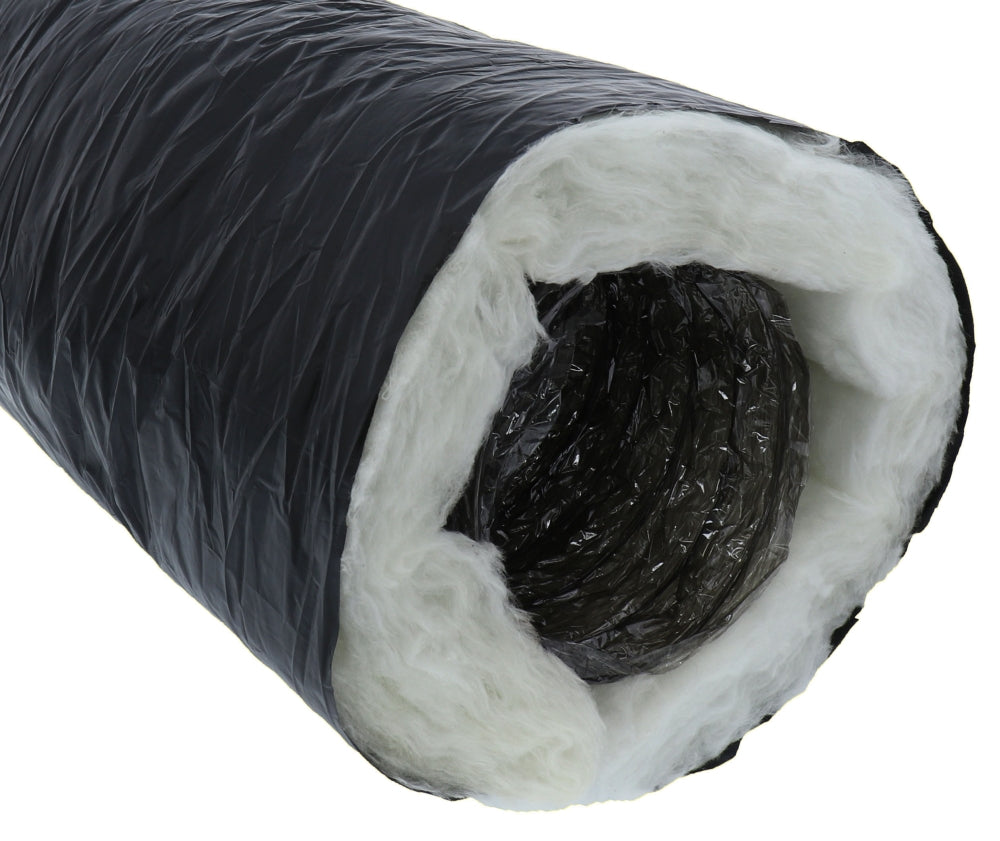

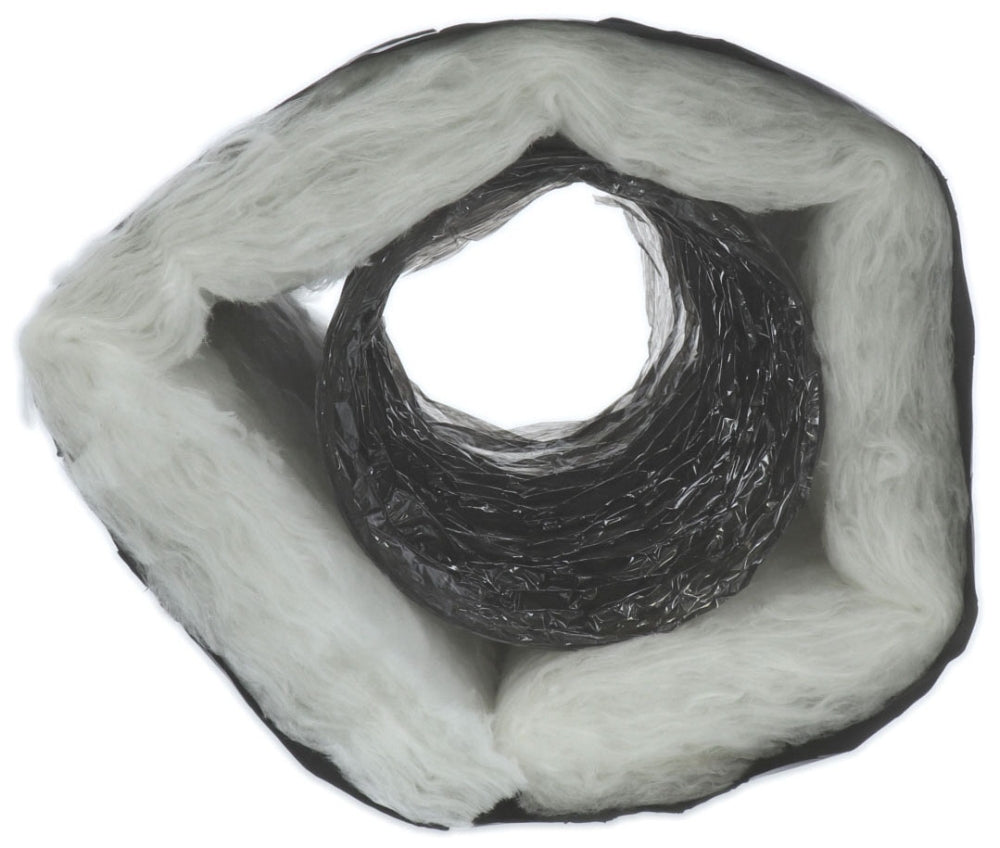

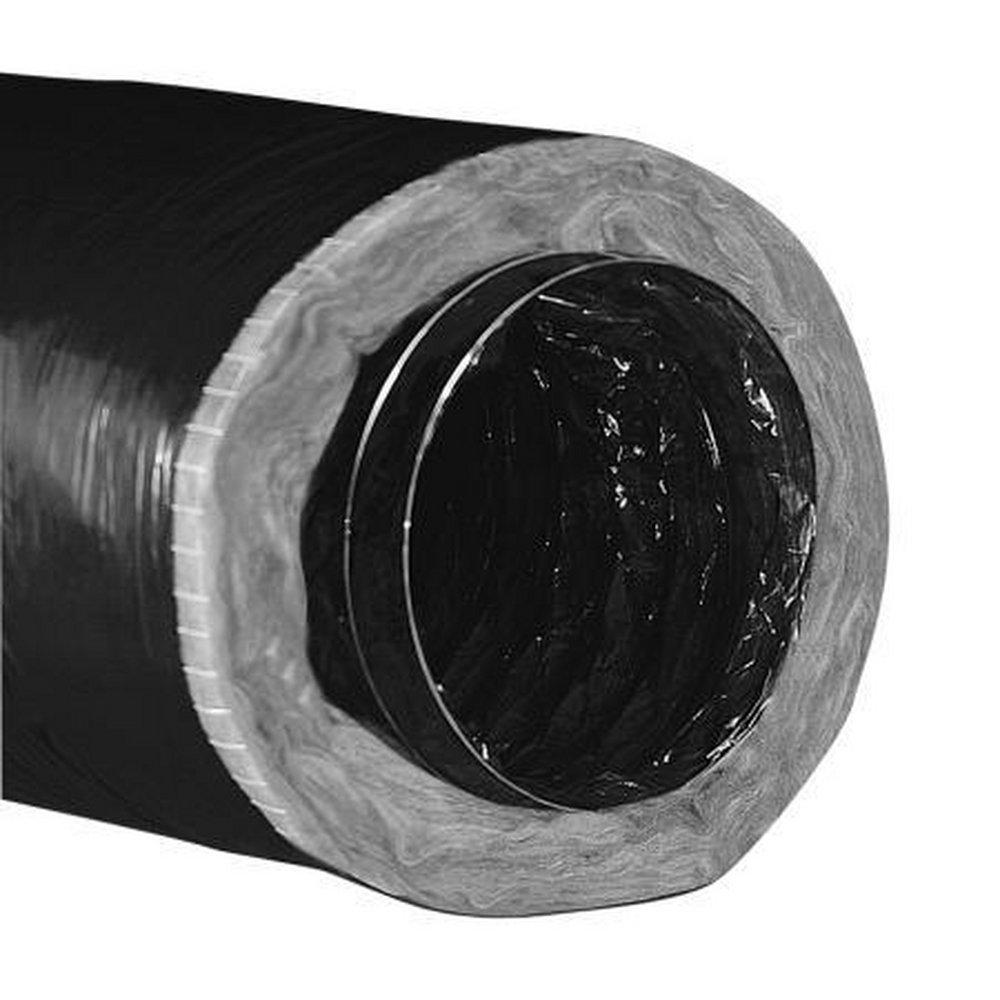

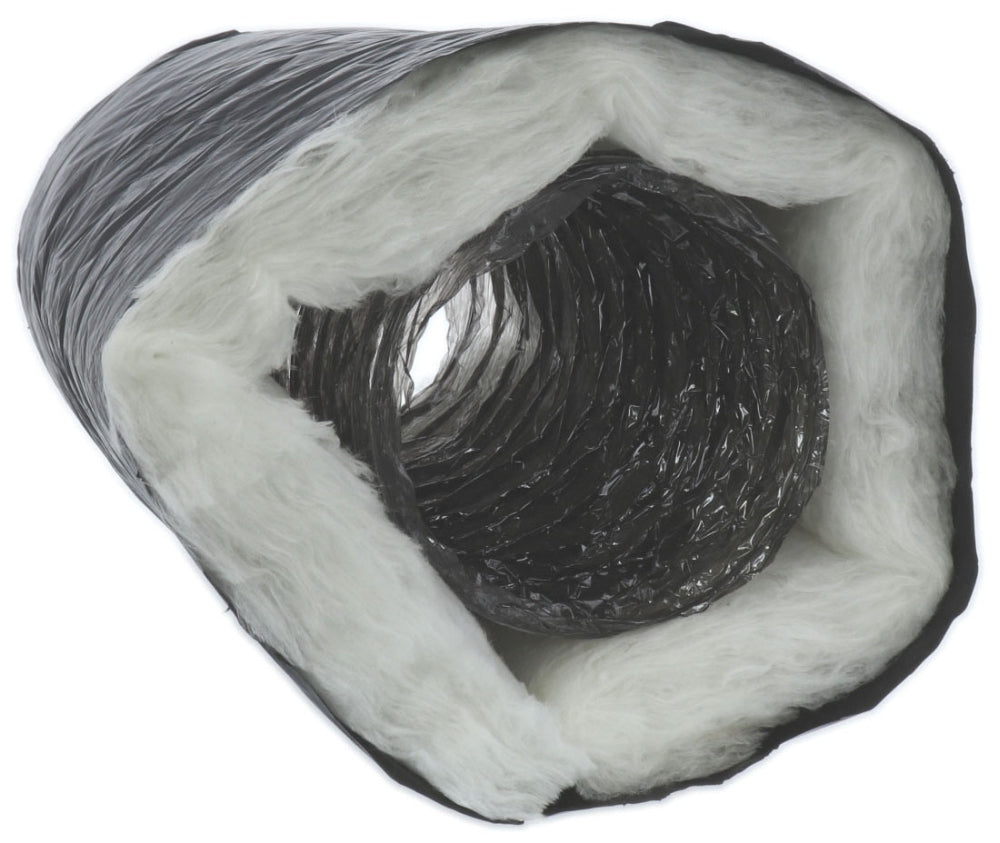

The HART & COOLEY 051317 HC F116 Poly Flex Duct is a flexible air duct with R-6 insulation. It features a flame spread less than 25 and smoke developed less than 50. Designed with a black polyethylene jacket and a 2-ply black polyester core, this duct is suitable for residential and light commercial applications.

• Durable, scuff-resistant black polyethylene vapor barrier provides improved protection against damaging ultra-violet light
• Reinforcing fiberglass yarn scrim acts as a rip-stop and helps prevent tearing for easy installation
• Suitable for residential and light commercial applications

Product Highlights

This flexible air duct is ideal for air-handling needs in residential and light commercial settings. It meets UL 181, NFPA 90A/90B, HUD, IMC, UMC, CHPS, and GREENGUARD standards.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 051317

Technical Specifications

• Air Velocity: 5000 FPM
• Applicable Standard: UL 181, NFPA 90A/90B, HUD, IMC, UMC, CHPS, GREENGUARD
• Burning Character: Flame Spread Less than 25, Smoke Developed Less than 50
• Catalog Number: 051317
• Customer UPC: 68404851317
• Category: HVAC/R & Fans
• Core Material: 2-Ply Black Polyester
• Insulation Type: R-6
• Jacket Material: Black Polyethylene
• Length: 25 Foot
• Manufacturer Name: Hart & Cooley
• Manufacturer Part Number: 051317
• Manufacturer Part Number Additional: F116_10X25FT
• Rated Negative Pressure: 3/4 Inch WC Negative per UL 181
• Rated Positive Pressure: 12 Inch WC Positive per UL 181
• Series/Model: F116
• Temperature Rating: -20 to 250 Deg F (Intermittent), -20 to 140 Deg F (Continuous)
• UNSPSC Code: 40141901
• UPC: 684048513175
• Width: 10 Inch
• ASTM: ASTM C518, ASTM E96
• Diameter: 10
• Material: Plastic, Steel
• Material Type: Polyester
• Maximum Airflow: 5000
• R value: R6
• UL Listed: UL 181 Class 1
• Vent Duct Shape: Round
