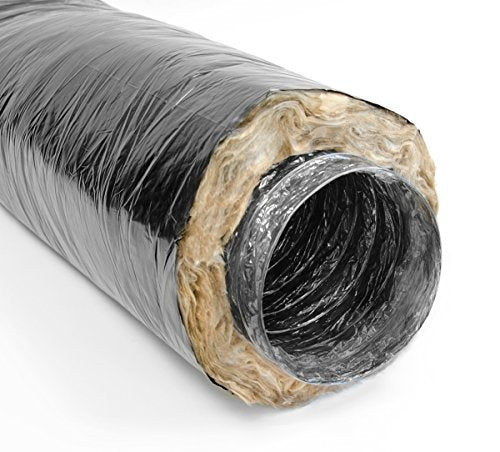

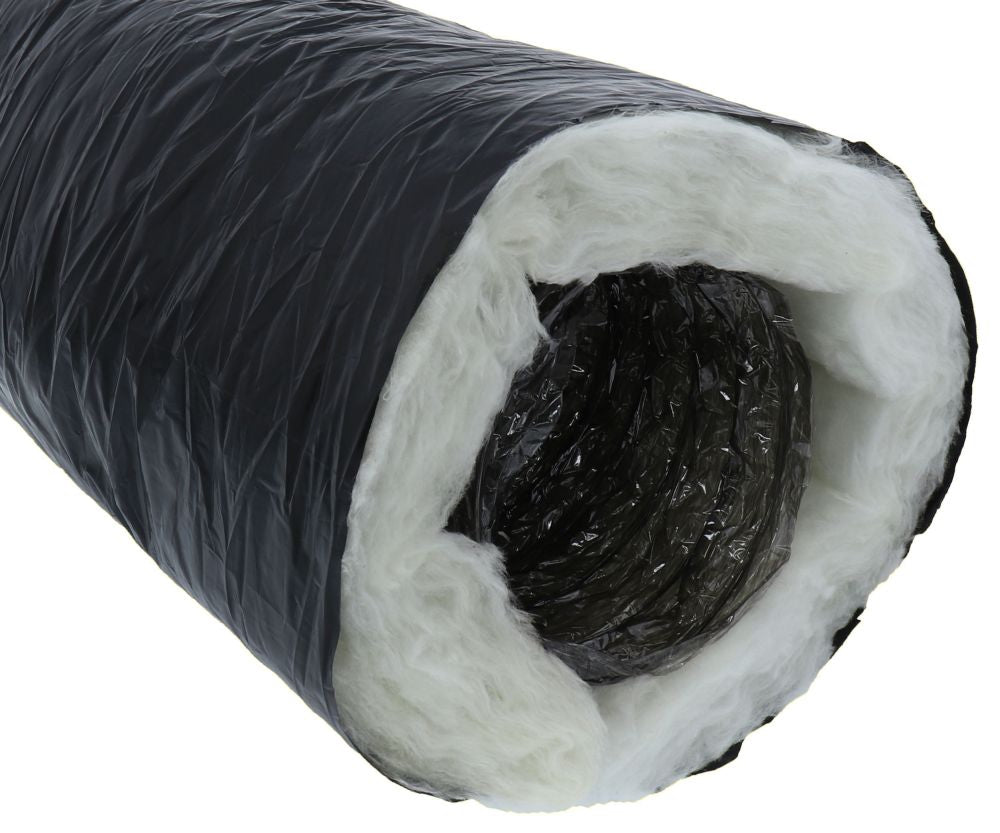

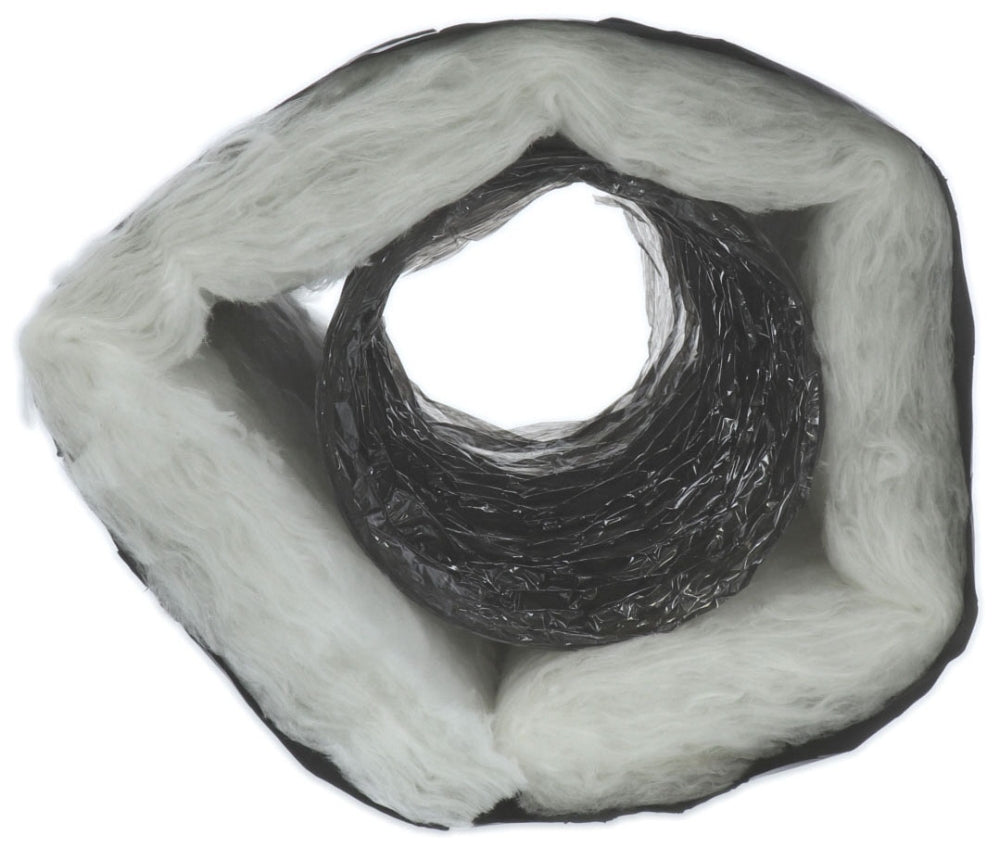

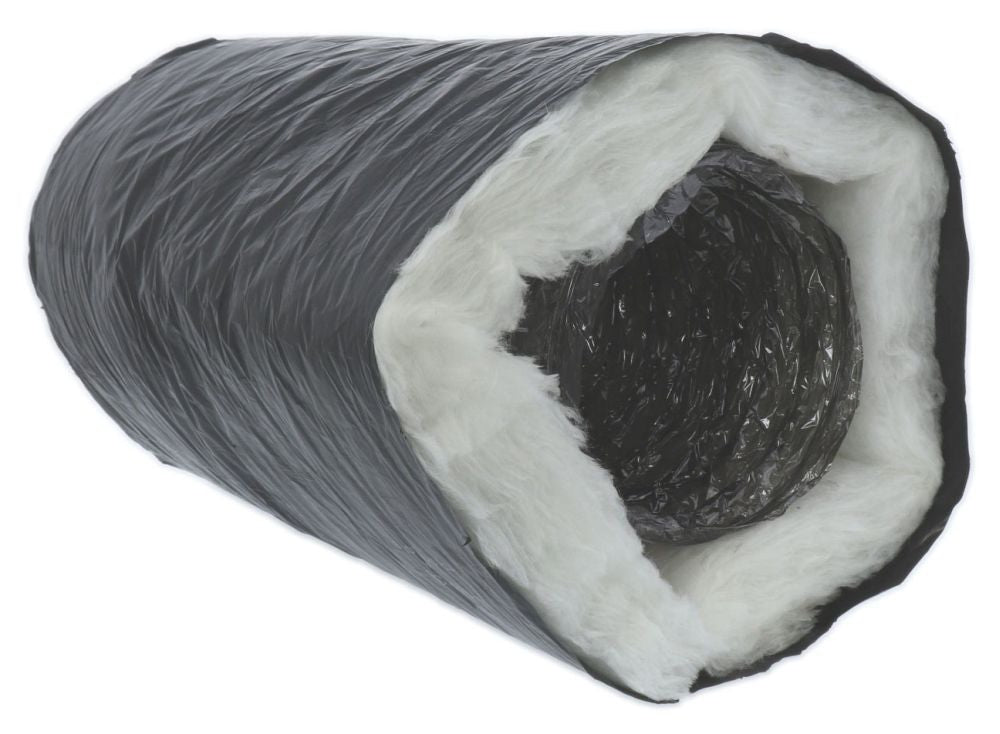

Hart & Cooley 051314 HC F116 7x25 Poly Flex Duct

Product Description

The HART & COOLEY 051314 HC F116 poly flex duct features a durable, scuff-resistant black polyethylene vapor barrier that provides improved protection against damaging ultra-violet light. The reinforcing fiberglass yarn scrim acts as a rip-stop and helps prevent tearing, making installation easy. Suitable for residential and light commercial applications.

• Durable, scuff-resistant black polyethylene vapor barrier
• Reinforcing fiberglass yarn scrim acts as a rip-stop
• Suitable for residential and light commercial applications

Product Highlights

The HART & COOLEY 051314 flex duct is designed for residential and light commercial use, featuring a polyethylene jacket and fiberglass scrim for easy installation.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 051314

Technical Specifications

• Air Velocity: 5000 FPM
• Applicable Standard: UL 181, NFPA 90A/90B, HUD, IMC, UMC, CHPS, GREENGUARD
• Burning Character: Flame Spread Less than 25, Smoke Developed Less than 50
• Catalog Number: 051314
• Customer UPC: 68404851314
• Category: HVAC/R & Fans
• Core Material: 2-Ply Black Polyester
• Insulation Type: R-6
• Jacket Material: Black Polyethylene
• Length: 25 Foot
• Manufacturer Name: Hart & Cooley
• Manufacturer Part Number: 051314
• Manufacturer Part Number Additional: F116_7X25FT
• Rated Negative Pressure: 3/4 Inch WC Negative per UL 181
• Rated Positive Pressure: 12 Inch WC Positive per UL 181
• Series/Model: F116
• Temperature Rating: -20 to 250 Deg F (Intermittent), -20 to 140 Deg F (Continuous)
• UNSPSC Code: 40141901
• Width: 7 Inch
• Additional Information: Application Residential and Light Commercial; Packaging Type Bagged
