Hart & Cooley 051313 HC F116 6x25 Poly Flex Duct 6 Inch x 25 Foot

Product Description

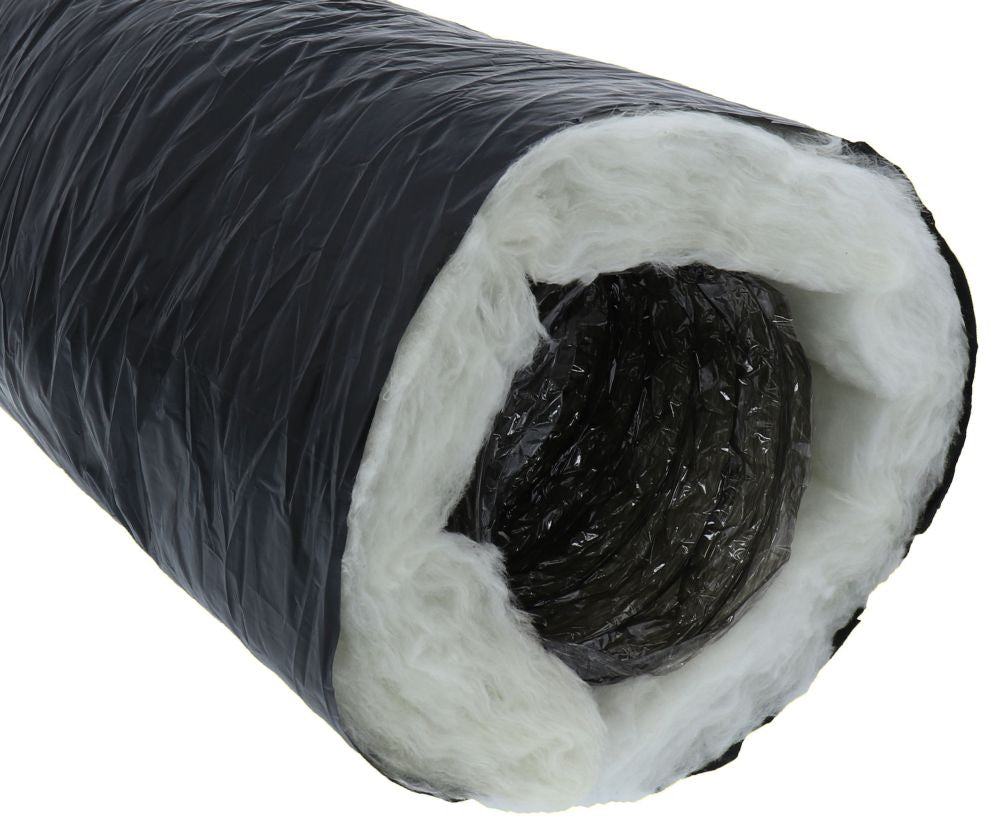

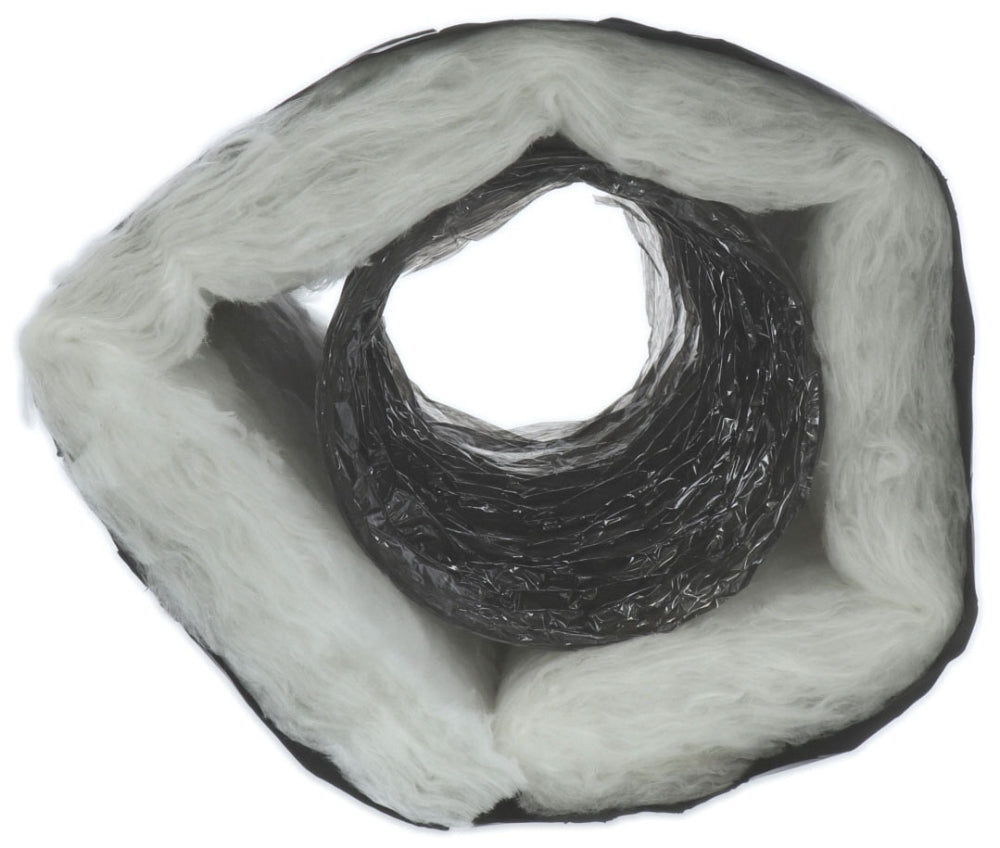

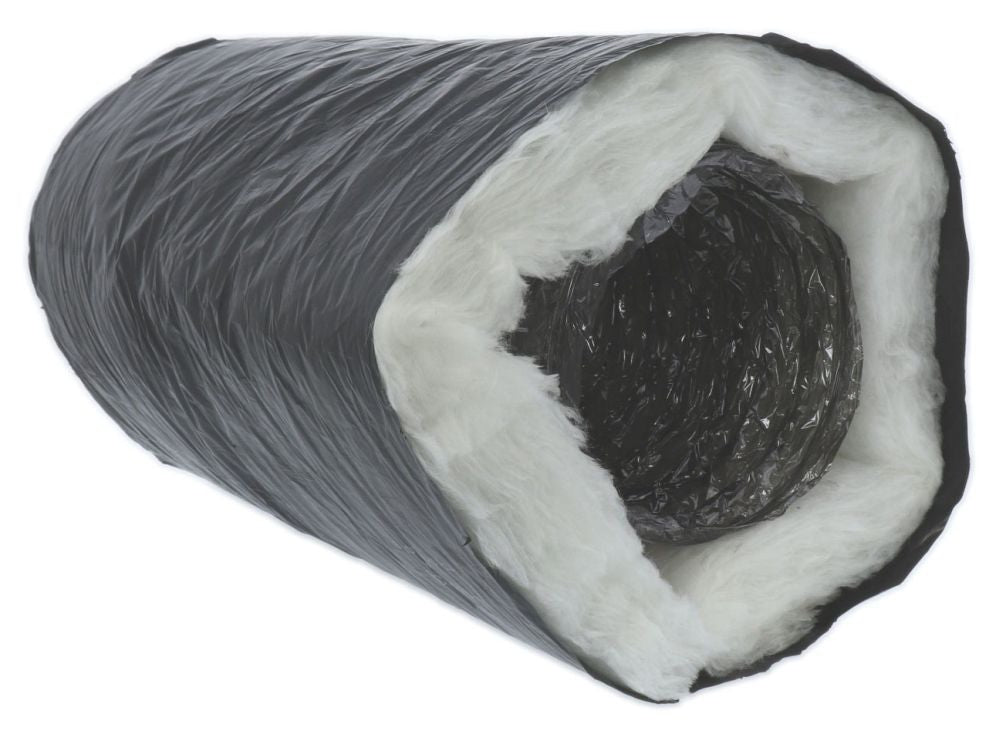

The HART & COOLEY 051313 HC F116 Poly Flex Duct is a flexible air duct with R-6 insulation, designed for residential and light commercial applications. It features a black polyethylene jacket and a 2-ply black polyester core. The duct is suitable for temperatures ranging from -20 to 250 Deg F (Intermittent) and -20 to 140 Deg F (Continuous).

• Durable, scuff-resistant black polyethylene vapor barrier provides improved protection against damaging ultra-violet light
• Reinforcing fiberglass yarn scrim acts as a rip-stop and helps prevent tearing for easy installation
• Flame spread less than 25, smoke developed less than 50

Product Highlights

This flexible air duct is ideal for residential and light commercial use, providing an economical solution for air-handling needs with improved indoor air quality.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 051313

Technical Specifications

• Air Velocity: 5000 FPM
• Applicable Standard: UL 181, NFPA 90A/90B, HUD, IMC, UMC, CHPS, GREENGUARD
• Burning Character: Flame Spread Less than 25, Smoke Developed Less than 50
• Catalog Number: 051313
• Customer UPC: 68404851313
• Category: HVAC/R & Fans
• Core Material: 2-Ply Black Polyester
• Insulation Type: R-6
• Jacket Material: Black Polyethylene
• Length: 25 Foot
• Manufacturer Name: Hart & Cooley
• Manufacturer Part Number: 051313
• Manufacturer Part Number Additional: F116_6X25FT
• Rated Negative Pressure: 3/4 Inch WC Negative per UL 181
• Rated Positive Pressure: 12 Inch WC Positive per UL 181
• Series/Model: F116
• Temperature Rating: -20 to 250 Deg F (Intermittent), -20 to 140 Deg F (Continuous)
• UNSPSC Code: 40141901
• UPC: 684048513137
• Width: 6 Inch
• ASTM: ASTM C518, ASTM E96
• Diameter: 6
• Material: Plastic, Steel
• Material Type: Polyester
• Maximum Airflow: 5000
• R value: R6
• UL Listed: UL 181 Class 1
• Vent Duct Shape: Round
