Hart & Cooley 051312 HC F116 5x25 Poly Flex Duct

Product Description

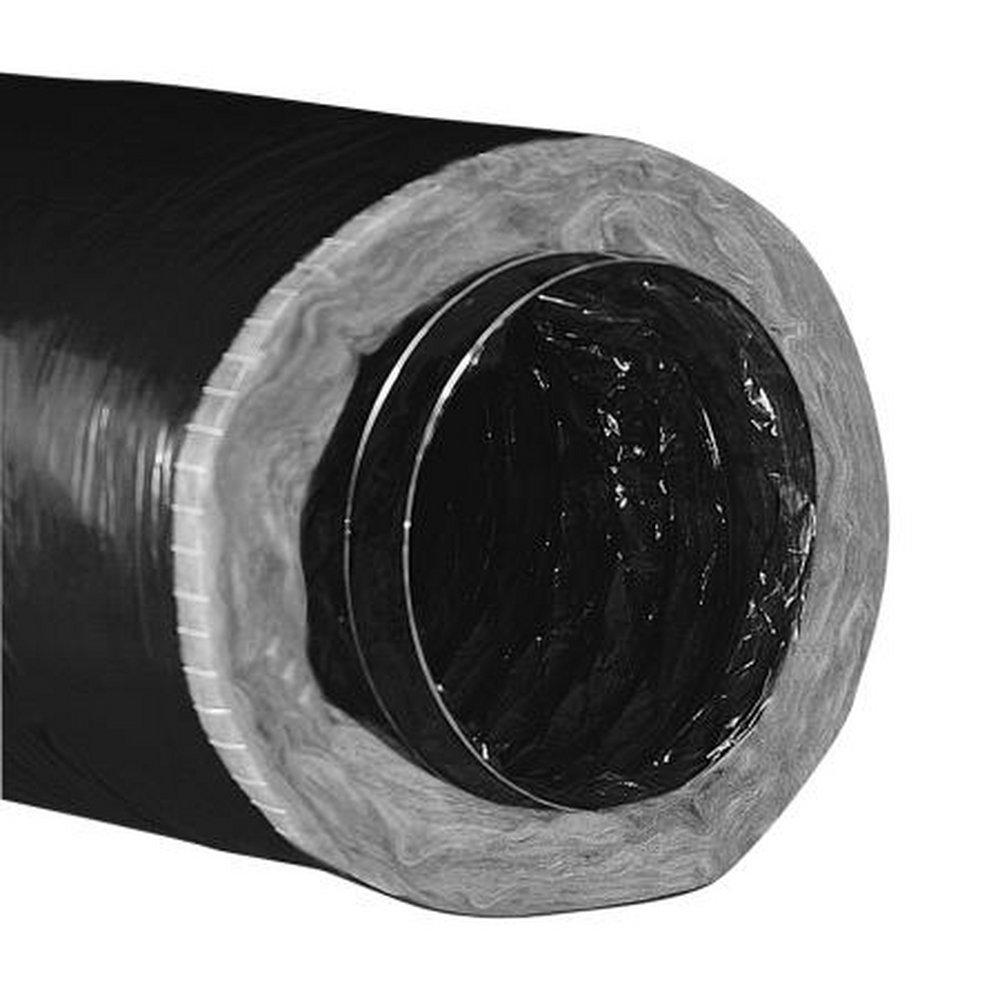

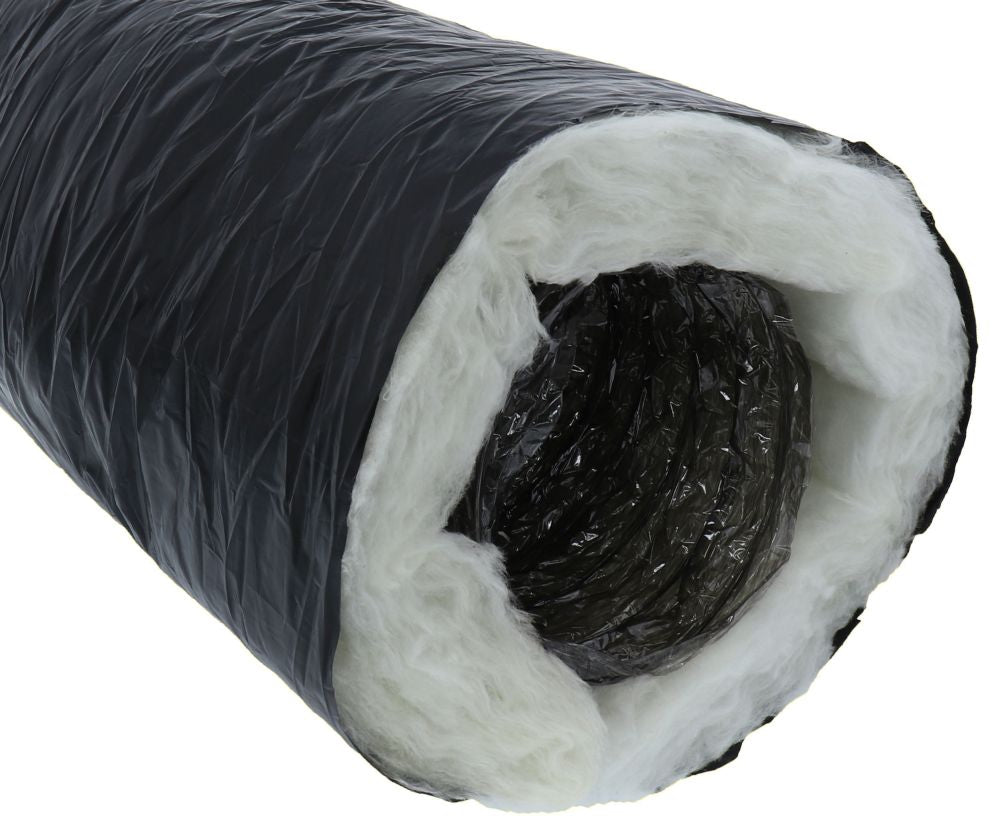

The HART & COOLEY 051312 HC F116 flexible air duct is a Class 1 insulated duct with a plain end and R-6 insulation. It features a black polyethylene jacket reinforced with fiberglass scrim and a black 2-ply polyester film encapsulated steel wire helix core. Designed for residential applications, it has an air velocity of 5000 feet per minute.

• Durable, scuff-resistant black polyethylene vapor barrier provides UV light protection.
• Reinforcing fiberglass yarn scrim prevents tearing during installation.
• Temperature rating: -20 to 140 Deg F (Continuous), -20 to 250 Deg F (Intermittent).

Product Highlights

This flexible air duct is UL 181, NFPA 90A/90B, HUD, IMC, UMC, ADC, and GREENGUARD compliant.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 051312

Technical Specifications

• Air Velocity: 5000 Foot per Minute
• Applicable Standard: UL 181, NFPA 90A/90B, HUD, IMC, UMC, ADC, GREENGUARD
• Burning Character: Maximum Flame Spread Less than 25, Maximum Smoke Developed Less than 50
• Catalog Number: 051312
• Customer UPC: 68404851312
• Category: HVAC/R & Fans
• Core Material: Black 2-Ply Polyester Film Encapsulated Steel Wire Helix
• Insulation Type: R-6
• Jacket Material: Black Polyethylene Reinforced with Fiberglass Scrim
• Length: 25 Foot
• Manufacturer Name: Hart & Cooley
• Manufacturer Part Number: 051312
• Manufacturer Part Number Additional: "F116-5""X25'"
• Rated Negative Pressure: 3/4 Inch WC
• Rated Positive Pressure: 12 Inch WC
• Series/Model: F116
• Temperature Rating: -20 to 140 Deg F (Continuous), -20 to 250 Deg F (Intermittent)
• Type: Class 1, Insulated, Plain End
• UNSPSC Code: 40141901
• UPC: 684048513120
• Width: 5 Inch
• Perm Rating: 0.1
• Application: Residential
• Packaging Type: Boxed
• Material: Plastic
• Material Type: Polyester
• R value: R6
• UL Listed: Yes
