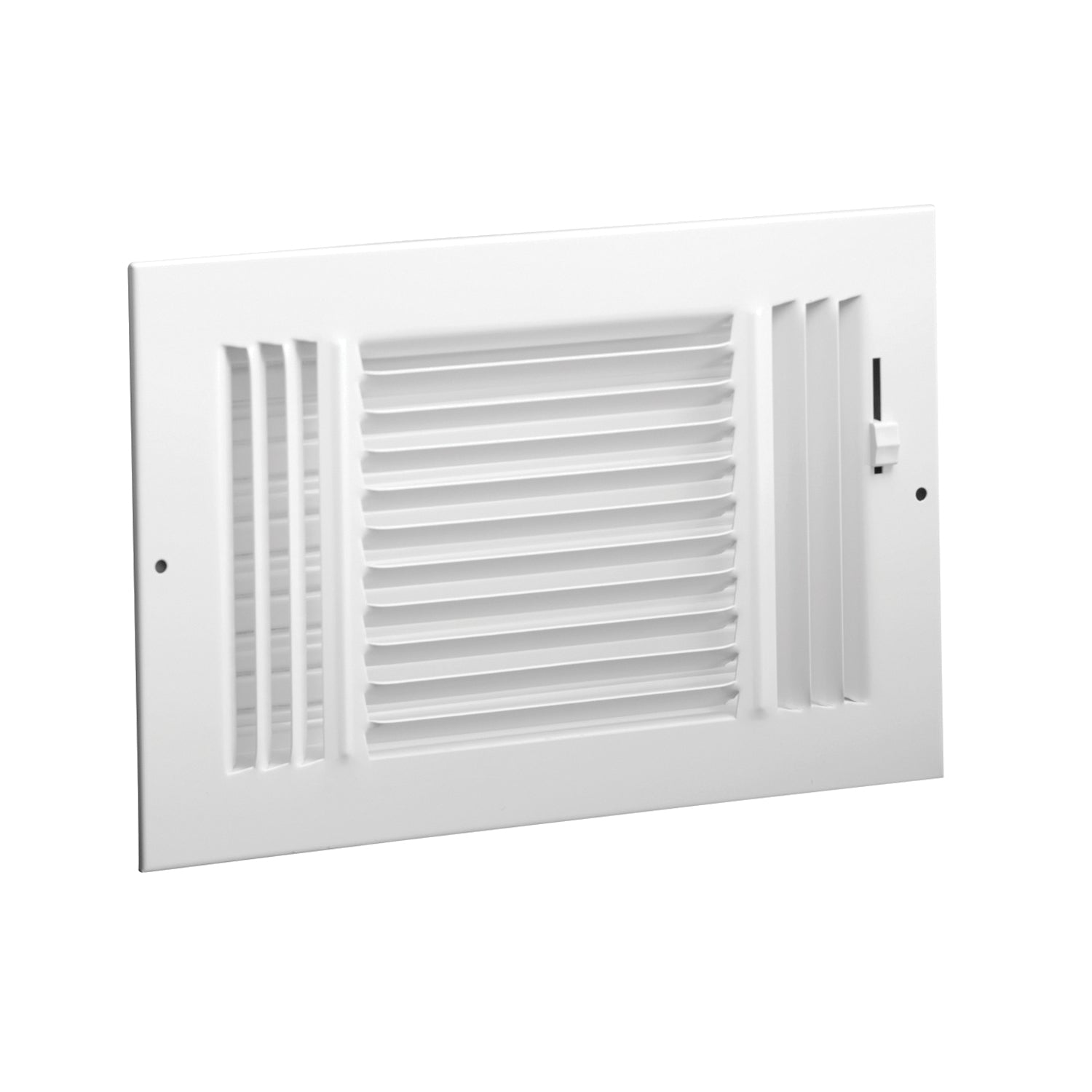

Hart & Cooley 043866 683 10 x 6 in 3-Way Sidewall/Ceiling Register

Product Description

The Hart & Cooley 683 10 x 6 in 3-Way Sidewall/Ceiling Register, MPN 043866, is designed for versatile air distribution. This register allows for efficient air flow whether installed on the ceiling or sidewall. With a three-way deflection feature, it effectively directs airflow in multiple directions, enhancing overall comfort in any space.

• Used for ceiling or sidewall installation
• Three-way deflection for better airflow direction
• Ideal for shallow duct installation

Product Highlights

This register features a multi-shutter valve and interlocking louvers for reliable performance and positive shut-off. The design includes a blade spacing of half an inch and an overall dimension of ten by six inches, making it suitable for various HVAC applications.

Product Information

Standard Information

• Brand: Hart & Cooley
• Part Number: L2332

Technical Specifications

• Blade Spacing: 1/2 in
• Country of Origin: US
• Deflection Angle: 40 deg
• Domestic/Import: Domestic
• Duct Height: 5-11/16 in
• Duct Width: 9-7/16 in
• Finish: Bright White Enamel
• Material: Steel
• Overall Length: 7-3/4 in
• Overall Width: 11-3/4 in
• Package Volume: 0.08453 cu-in
• Package Weight: 1.3425 lb
• Series: 683
• Size: 10 x 6 in
• Type: 3-Way
