Hart & Cooley 027813 Hc F118 5X25 Poly Flex Dct

Product Description

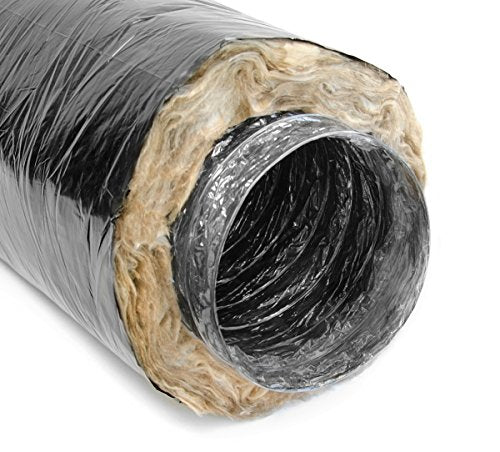

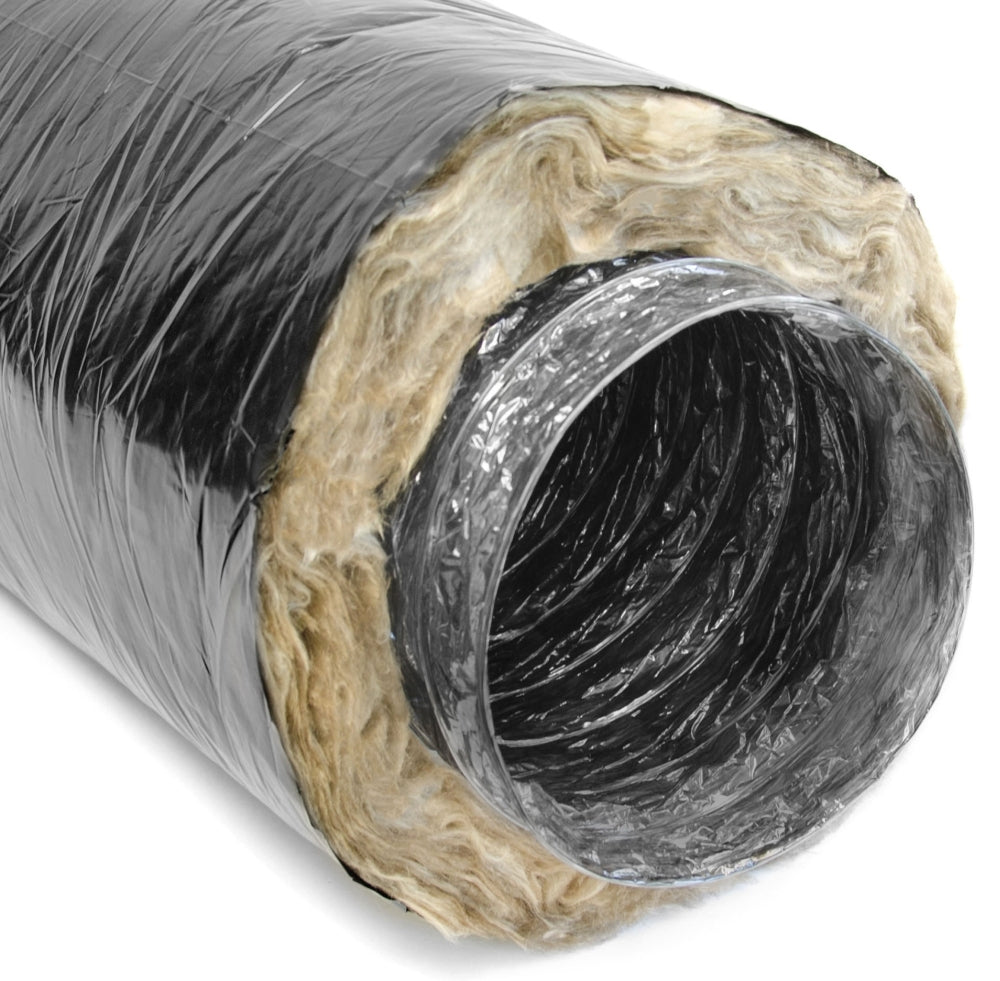

The HART & COOLEY 027813 flexible air duct is a Class 1 insulated duct with a plain end. Features a durable, scuff-resistant black polyethylene vapor barrier that provides improved protection against damaging ultra violet light. Installation is made easy with the reinforcing fiberglass yarn scrim, which acts as a rip-stop and helps prevent tearing. Suitable for residential applications.

• Insulation Type R-8
• Temperature Rating -20 to 140 Deg F (Continuous), -20 to 250 Deg F (Intermittent)
• Air Velocity 5000 Foot per Minute

Product Highlights

Durable polyethylene vapor barrier protects against UV light. Easy installation with reinforcing fiberglass yarn scrim.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 027813

Technical Specifications

• Air Velocity: 5000 Foot per Minute
• Applicable Standard: UL 181, NFPA 90A/90B, HUD, IMC, UMC, ADC, GREENGUARD
• Burning Character: Maximum Flame Spread Less than 25, Maximum Smoke Developed Less than 50
• Catalog Number: 027813
• Customer UPC: 68404827813
• Category: HVAC/R & Fans
• Core Material: Black 2-Ply Polyester Film Encapsulated Steel Wire Helix
• Description: Flexible Air Duct; Type Class 1, Insulated, Plain End; Insulation Type R-8; Burning Character Maximum Flame Spread Less than 25, Maximum Smoke Developed Less than 50; Air Velocity 5000 Foot per Minute; Rated Positive Pressure 12 Inch WC; Rated Negative Pressure 3/4 Inch WC; Jacket Material Black Polyethylene Reinforced with Fiberglass Scrim; Core Material Black 2-Ply Polyester Film Encapsulated Steel Wire Helix; Length 25 Foot; Width 5 Inch; Temperature Rating -20 to 140 Deg F (Continuous), -20 to 250 Deg F (Intermittent); Applicable Standard UL 181, NFPA 90A/90B, HUD, IMC, UMC, ADC, GREENGUARD; Perm Rating 0.1; Application Residential; Packaging Type Boxed
• Features/Benefits: These Feature a Durable, Scuff-Resistant Black Polyethylene Vapor Barrier that Provides Improved Protection Against Damaging Ultra Violet Light; Installation is Made Easy with the Reinforcing Fiberglass Yarn Scrim, Which Acts as a Rip-Stop and Helps Prevent Tearing
• Insulation Type: R-8
• Jacket Material: Black Polyethylene Reinforced with Fiberglass Scrim
• Length: 25 Foot
• Manufacturer Name: Hart & Cooley
• Manufacturer Part Number: 027813
• Manufacturer Part Number Additional: "F118-5""X25'"
• Rated Negative Pressure: 3/4 Inch WC
• Rated Positive Pressure: 12 Inch WC
• Series/Model: F118
• Temperature Rating: -20 to 140 Deg F (Continuous), -20 to 250 Deg F (Intermittent)
• Type: Class 1, Insulated, Plain End
• UNSPSC Code: 40141901
• UPC: 684048278135
• Width: 5 Inch
• Brand: Hart & Cooley
• Manufacturer: Hart & Cooley
• Model / MPN: F118 5"X25'"
