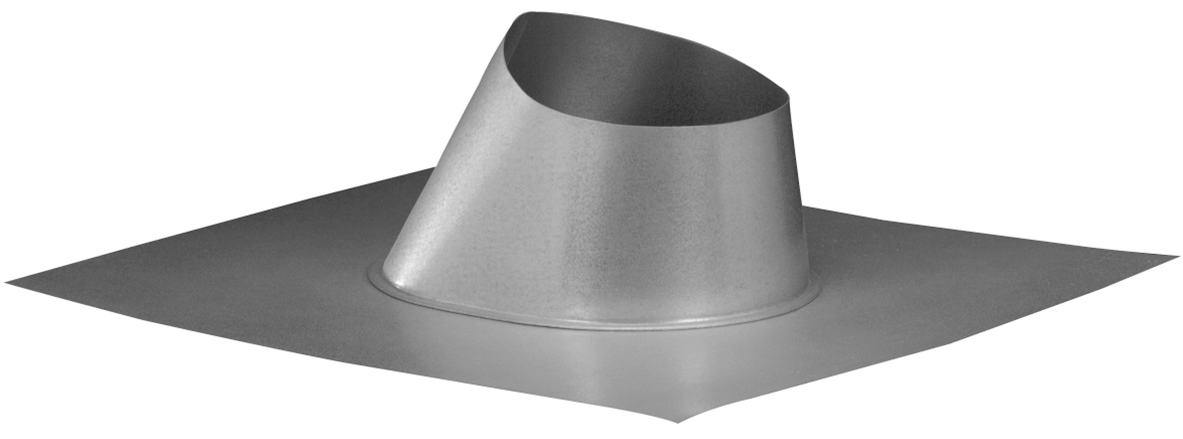

Hart & Cooley 016709 Type B Gas Vent Adjustable Roof Flashing 12 inches

Product Description

The HART & COOLEY 016709 Type B Gas Vent is a double-wall, air-insulated system secured by locking joints. Designed for negative pressure applications and flue gas temperatures not exceeding 400 degrees above ambient for Category I appliances. The galvanized outer pipe and aluminum inner pipe provide corrosion and external damage protection. Hart & Cooley's two-step engagement helps installers achieve quick and easy installation.

• Adjustable pitch from flat to 6/12
• Dimension "A" is 4-3/4"
• Dimension "B" is 18"
• Dimension "C" is 8"

Product Highlights

Durable galvanized steel roof flashing with adjustable pitch for Type B gas vents. Features a double-wall, air-insulated design for safety and easy installation.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 016709

Technical Specifications

• Shape: Roof Flashing
• Type: Type-B
• P1 Diameter (inches): 12
• P1 Style: Round
• Material: Galvanized Steel
