HART & COOLEY 016126 Hart & Cooley 16126 HAC4RFA Gas Vent Roof Flashing 4 Inch

Product Description

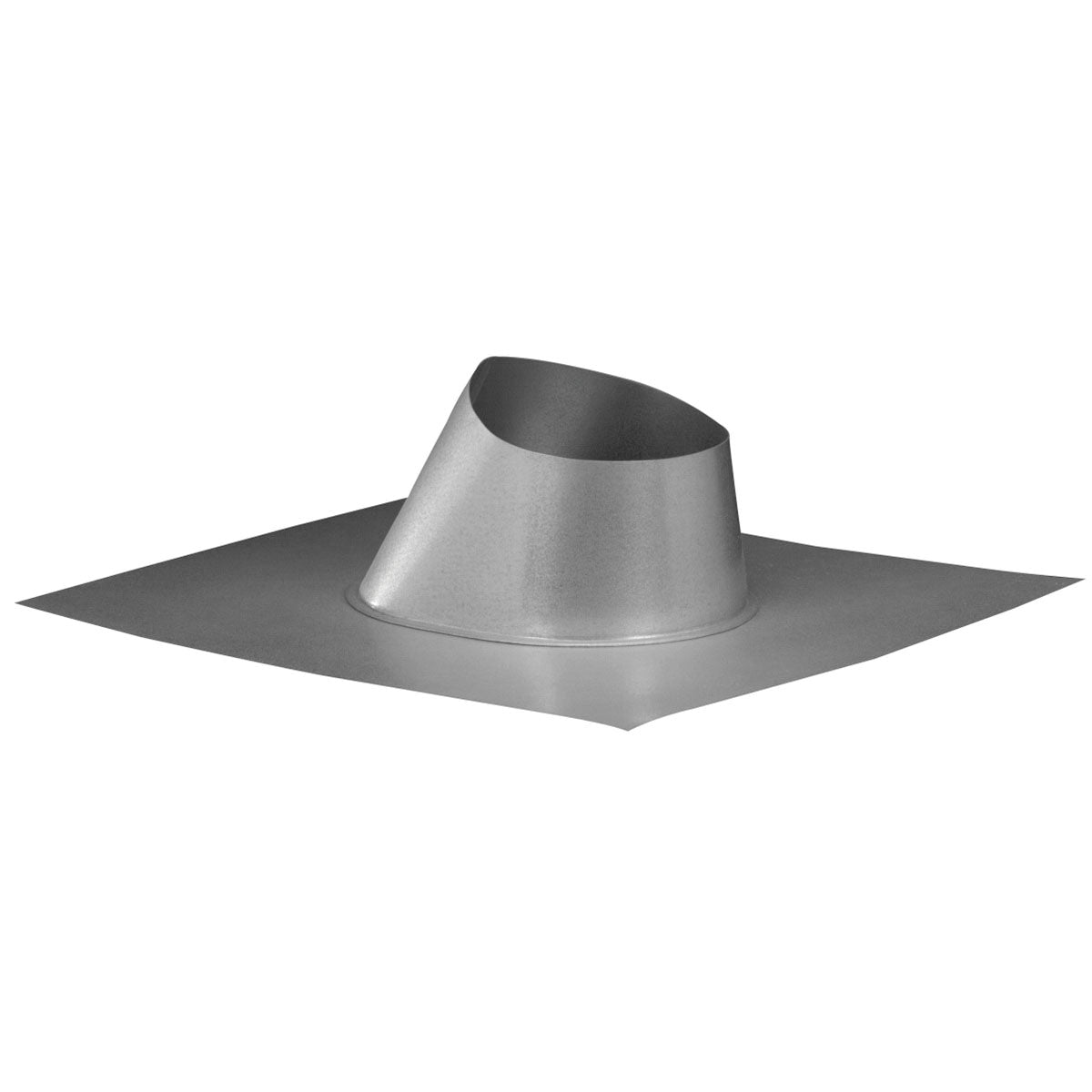

The Hart & Cooley 016126 is a gas vent roof flashing designed for adjustable roof applications. This model is suitable for type B gas vent installations. It features a size of four inches and a lower height of five and three-eighths inches. The overall height is seven and nine-sixteenths inches. The adjustable pitch ranges from six twelve to twelve twelve, providing flexibility in installation. The cone base size measures seven and three-eighths inches, with an overall base size of eighteen and one-half inches in length by seventeen and one-eighth inches in width.

• Material: G90 Galvanized Steel
• Standard Compliance: UL 441
• Material Thickness: 0.018 inches

Product Highlights

This flashing is effective in preventing water infiltration around the gas vent system, making it an essential component for any appropriate venting solution.

Product Information

Standard Information

• Brand: Hart & Cooley
• Model Number: HAC4RFA

Technical Specifications

• Applicable Standard: UL 441
• Cone Base Size: seven and three-eighths inches
• Lower Height: five and three-eighths inches
• Material Thickness: 0.018 inches
• Material: G90 Galvanized Steel
• Overall Base Size: eighteen and one-half inches length x seventeen and one-eighth inches width
• Overall Height: seven and nine-sixteenths inches
• Pitch: six twelve to twelve twelve
• Size: four inches
• Type: Adjustable Roof
