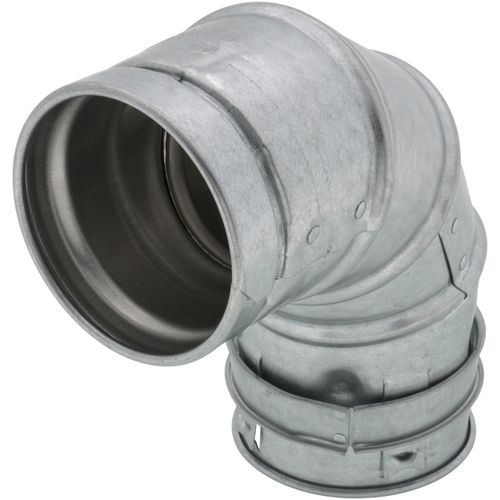

Hart & Cooley 016009 Hart & Cooley 16009 HAC3REA90 Power Adjustable Round Double Wall Type B

Product Description

The Hart & Cooley 016009 is a double-wall, air-insulated B-Vent system. It features locking joints that ensure the vent stays secure, preventing separation caused by vibration. This design minimizes the risk of vent failure or fire hazards. The Type B Gas Vent serves negative pressure applications and can handle flue gas temperatures up to four hundred degrees Fahrenheit above ambient for Category I appliances.

With quality materials, the galvanized outer pipe and aluminum inner pipe resist corrosion and external damage. The installation process is simplified with a two-step engagement method. Installers can easily connect the pipe sections and slide the lock ring over the security tabs, creating solid connections without screws.

• Double-wall construction for enhanced safety
• Locking mechanism for reliable performance
• Simple installation process with no screws required

Product Highlights

The Hart & Cooley B-Vent system includes various fittings, supports, and caps for versatile installation options.

Product Information

Standard Information

• Manufacturer: Hart & Cooley
• Min Order Quantity: 1

Technical Specifications

• Angle: 90 Degree
• Applicable Standard: UL 441
• Inclusions/Features: Locking Band
• Material Thickness: 0.012 Inch (Inner Wall), 0.018 Inch (Outer Wall)
• Material: Aluminum (Inner Wall), G90 Galvanized Steel (Outer Wall)
• Series/Model: REA
• Size A: 3 Inch Diameter
• Size B: 3 Inch Diameter
• Type: Adjustable, Round, Double Wall, Type B
• UPC - 11 Digit: 68404816009
• UPC - 12 Digit: 684048160096
