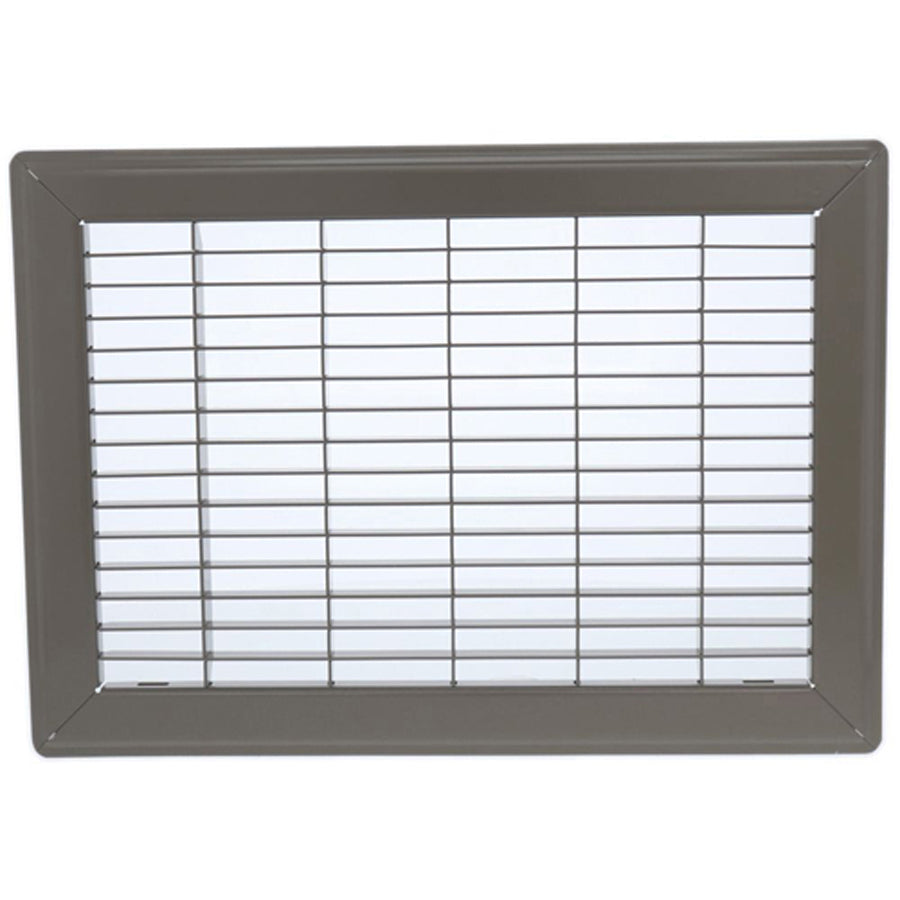

Hart Cooley 011920 Floor Return Air Grille 20x30 Golden Sand

Product Description

The HART COOLEY 011920 is a steel floor return air grille finished in Golden Sand enamel, designed for residential and light commercial HVAC return air applications. Built with an extremely rigid construction and a smooth surface face, it handles the demands of high-traffic floor installations without flexing underfoot. The grille opening measures 20 inches wide by 30 inches tall, with an overall installed footprint of 21-13/16 inches wide by 31-13/16 inches tall and a depth of approximately 1.55 inches. Fin spacing runs 1/2 inch by 2 inches, delivering a free area that averages over 75 percent for strong, unrestricted return airflow. HVAC technicians and installers select this grille as a direct floor-mount return air component.

This grille is intended for floor-mounted return air installations in ducted forced-air systems. The Golden Sand enamel finish blends with period-appropriate or neutral interior trim in residential settings. Its rigid steel construction makes it well suited for locations where foot traffic is a concern, such as hallways, living rooms, and common areas. The smooth face surface is easy to clean and resists snagging. The 20 by 30 inch opening size fits a standard duct boot cut-out of that dimension, making it a common replacement or new-construction choice for larger return air pathways.

Key Features

• Extremely rigid steel construction withstands foot traffic without deflection
• Smooth surface face for easy cleaning and a finished appearance
• Free area averages over 75 percent for high-volume return airflow
• 1/2 inch by 2 inch fin spacing for balanced air distribution
• Golden Sand enamel finish for a durable, consistent color coat
• Floor-mount design fits standard 20 by 30 inch return air duct openings

Compatibility

Designed as an OEM-style replacement or new-installation floor return air grille for ducted residential and light commercial forced-air HVAC systems using a 20 by 30 inch return air opening.

Installation Notes

Installation is typically performed by an HVAC technician or qualified installer. Shut down the air handling system before removing an existing grille or making any duct modifications. Verify the rough opening and duct boot dimensions match the 20 by 30 inch nominal size before securing the grille. Fasten according to local mechanical code requirements and ensure the grille lies flush and level with the finished floor surface to prevent a tripping hazard.

Technical Specifications

• Grille Size: 20 inches wide x 30 inches tall
• Overall Width: 21-13/16 inches
• Overall Height: 31-13/16 inches
• Overall Depth: approximately 1.55 inches
• Fin Spacing: 1/2 inch x 2 inches
• Free Area: averages over 75 percent
• Material: Steel
• Finish: Golden Sand Enameled
• Type: Return Air, Floor
• Style: Extremely Rigid, Smooth Surface Face

Standard Information

• Brand: HART COOLEY
• Manufacturer Part Number: 011920
