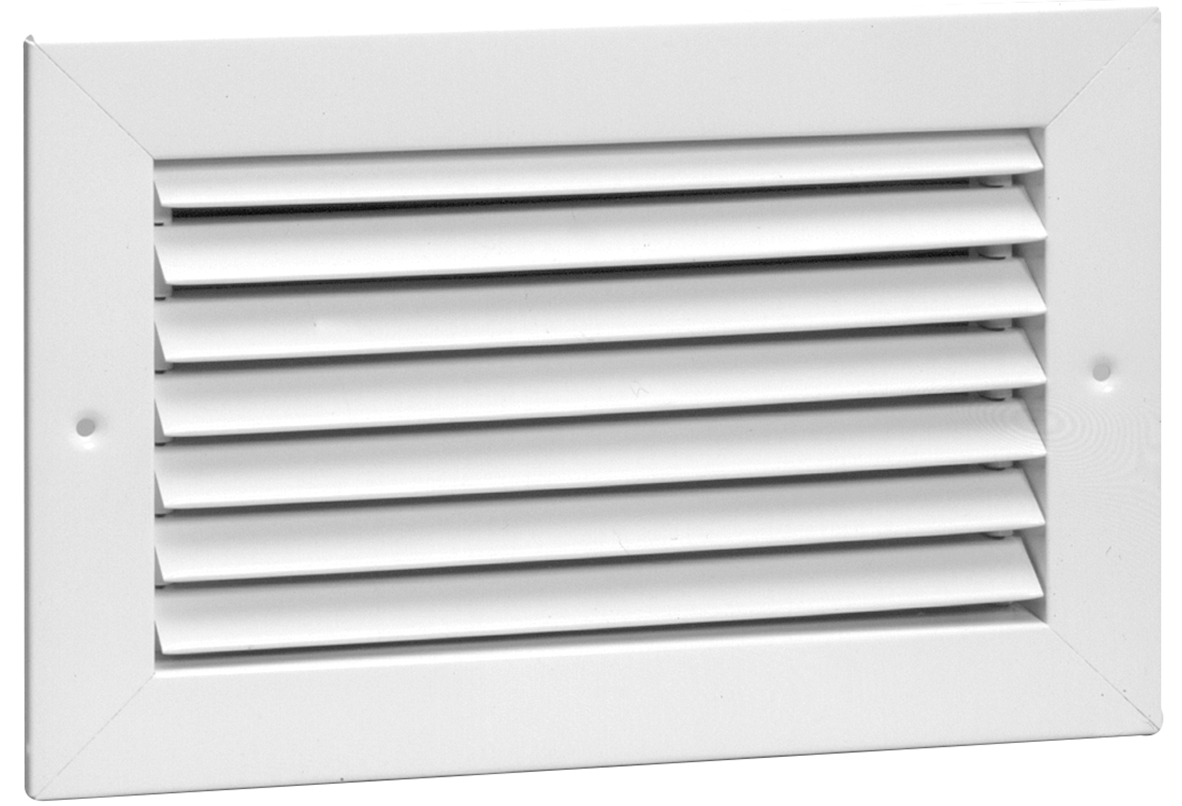

Hart & Cooley 011770 Return Air Grille Steel 30 inches x 6 inches

Product Description

The HART & COOLEY 011770 is a steel return air grille with 3/4" spaced fixed fins. The horizontal fins are set at a 35-degree angle. It is designed for a 30" x 6" duct opening. The grille features an all-steel construction.

• All steel construction
• 3/4" spaced fixed fins
• Horizontal fins are set at 35 degrees

Product Highlights

This HART & COOLEY return air grille is made of steel with fixed blades and a 35-degree deflection angle.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 011770
• Country of Origin: Domestic

Technical Specifications

• Model: 011770
• Manufacturer: HART & COOLEY
• Blade Spacing: 3/4 in
• Deflection Angle: 35 deg
• Domestic/Import: Domestic
• Duct Height: 5-1/4 in
• Duct Width: 29-1/4 in
• Finish: Bright White
• Grate Type: Fixed Blade
• Material: Steel
• Overall Depth: 1 in
• Overall Width: 31-3/4 in
• Series: 94A
• Size: 30 x 6 in
• Type: Return Air Grille
