Hart & Cooley 011302 Toe Space Grille (12 x 2) 420-12X02-WH

Product Description

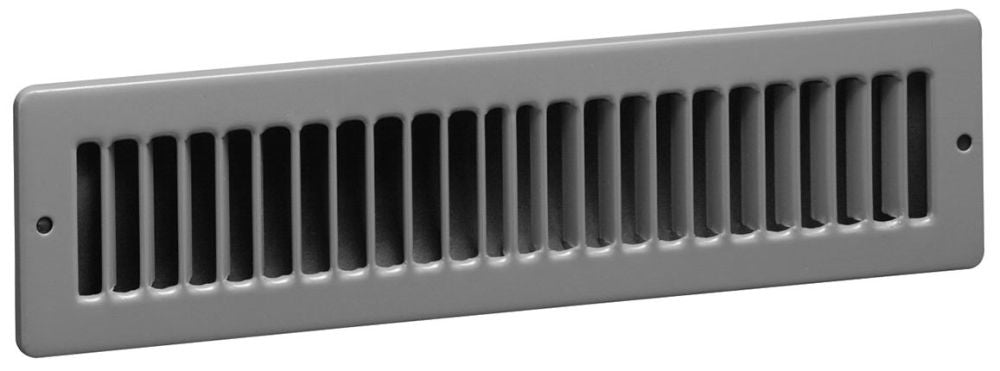

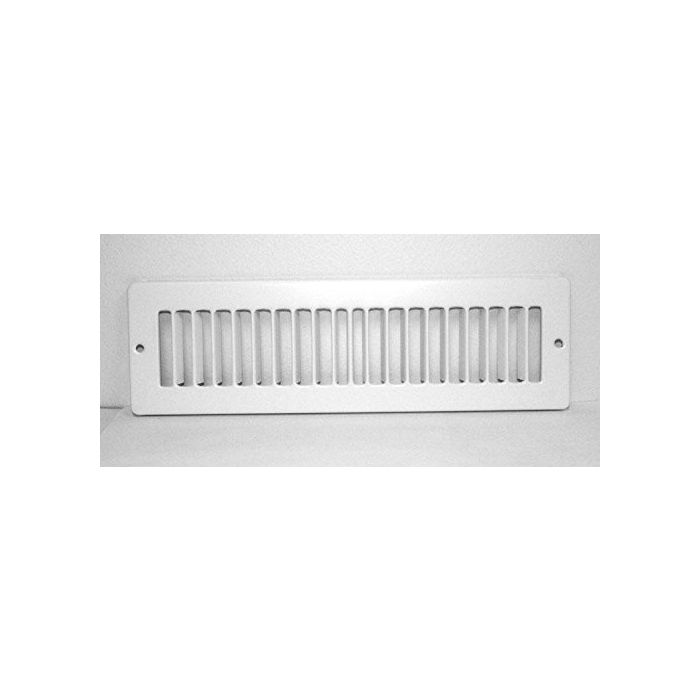

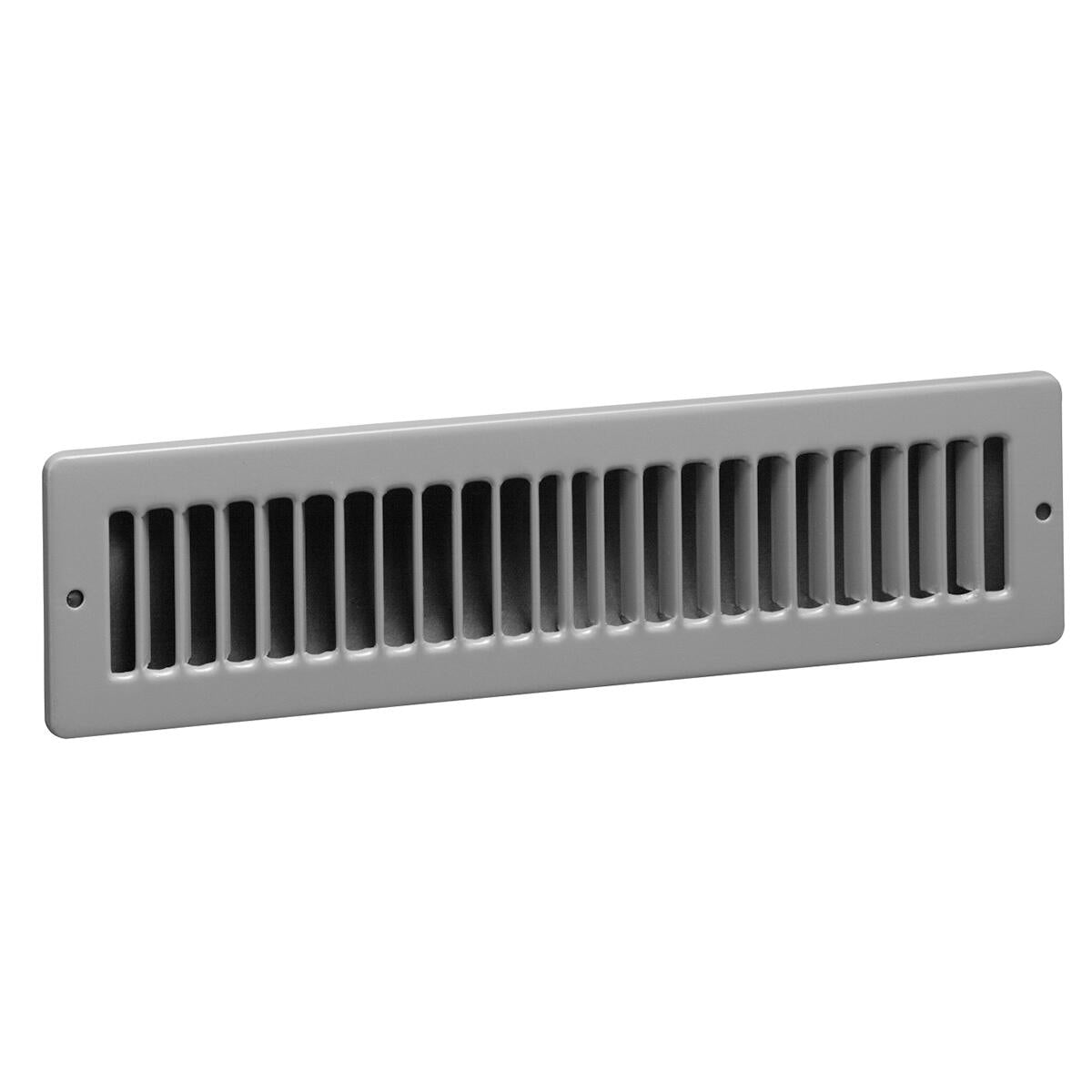

Hart & Cooley 011302 is a steel toe space grille with a heavy-gauge stamped face and multi-angle fins intended for residential toe-kick return air applications. The nominal grill size is 12 x 2 inches with overall dimensions of 13-1/8 in W x 7/32 in D x 3-3/8 in H. Fin spacing is 1/2 inch and the finish is bright white enamel; free area is 17 sq in and it is rated 100 CFM at 1000 fpm.

• Heavy-gauge stamped steel face with multi-angle fins and 1/2 in fin spacing
• Nominal grill size 12 x 2 in; overall dimensions 13-1/8 in W x 7/32 in D x 3-3/8 in H
• Bright white enamel finish; free area 17 sq in; rated 100 CFM at 1000 fpm for residential return air

Product Highlights

Toe-space return air grille for 12 x 2 in openings; steel construction with multi-angle fins and 1/2 in fin spacing.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 011302

Technical Specifications

• Brand: Hart & Cooley
• Manufacturer Part Number: 011302
• Alternate Part Number: 420-12X02-WH
• Series/Model: 420
• Category: HVAC/R & Fans
• Type: Toe space grille
• Material: Steel
• Finish: Bright white enamel
• Grill Size (Nominal): 12 in x 2 in

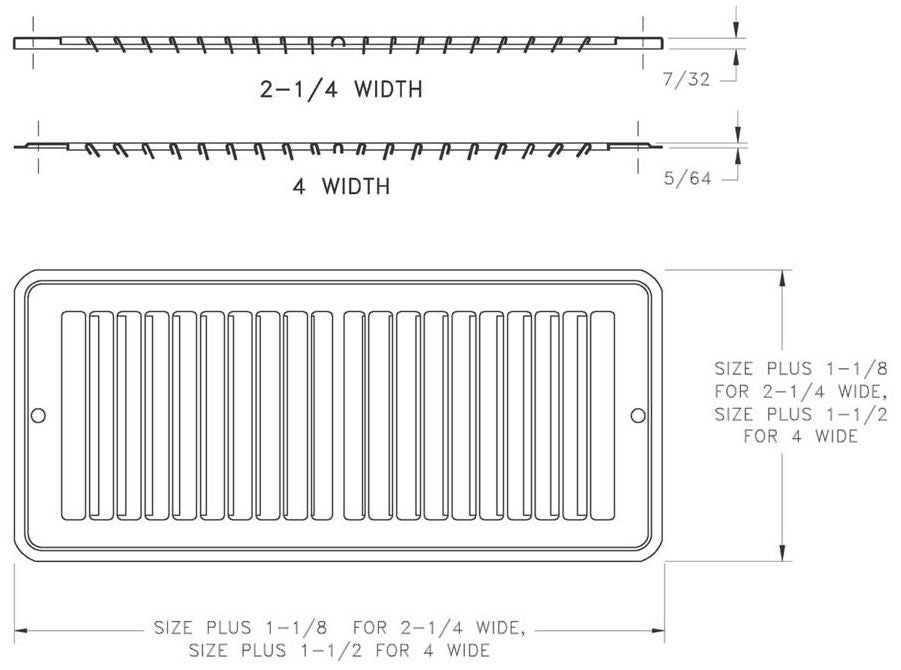

• Overall Dimensions: 13-1/8 in W x 7/32 in D x 3-3/8 in H
• Fin Spacing: 1/2 in
• Fin Angle: Multi-angle
• Free Area: 17 square in
• Airflow Rating: 100 CFM at 1000 fpm
• Face Velocity Range: 300 to 1000 FPM
• Application: Residential
• Weight: 0.363 lb
• UPC: 684048113023
• UNSPSC Code: 40101500
• Style: Heavy-gauge stamped face
