Hart & Cooley 010844 Sidewall/Ceiling Register 12 x 12 (Replacement 9178)

Product Description

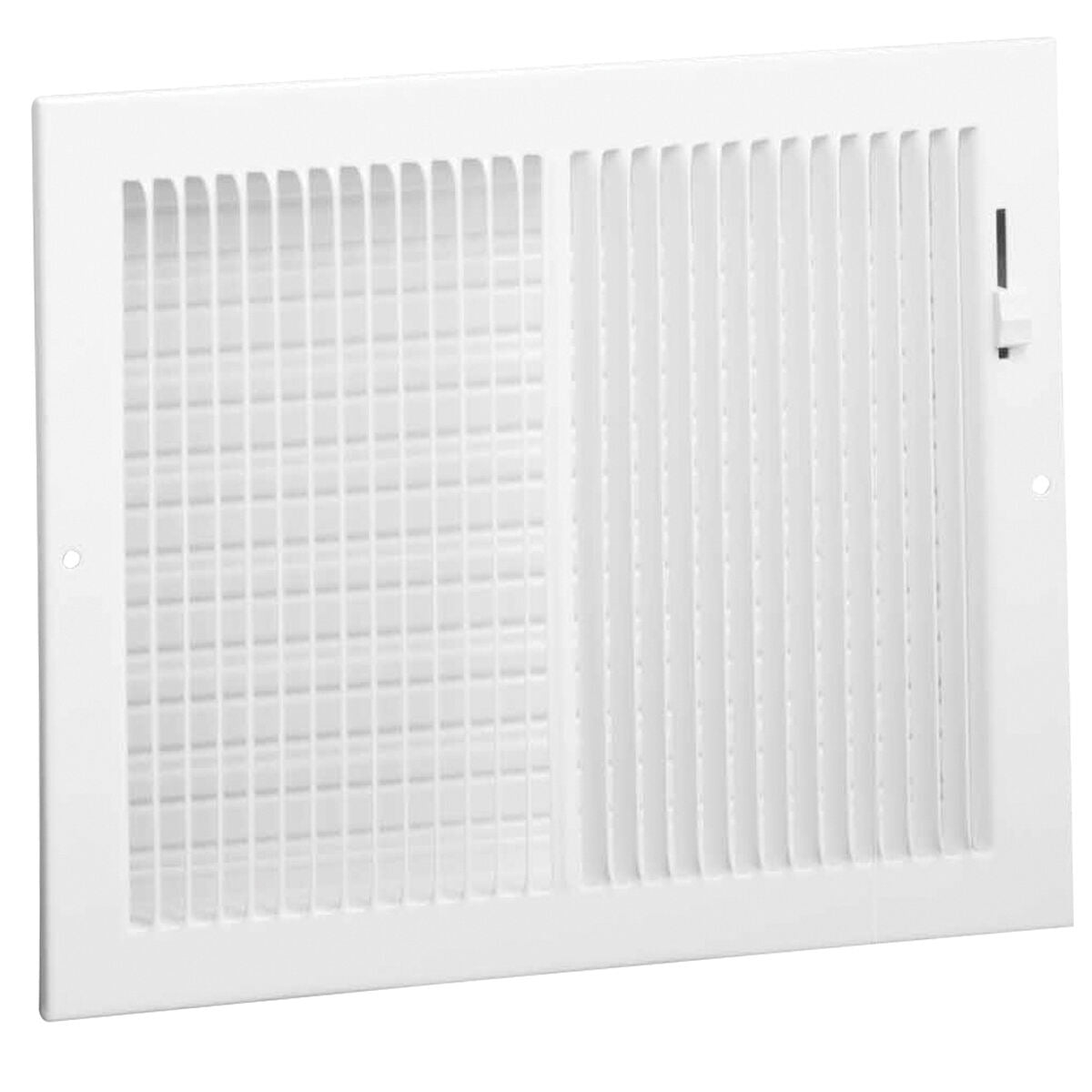

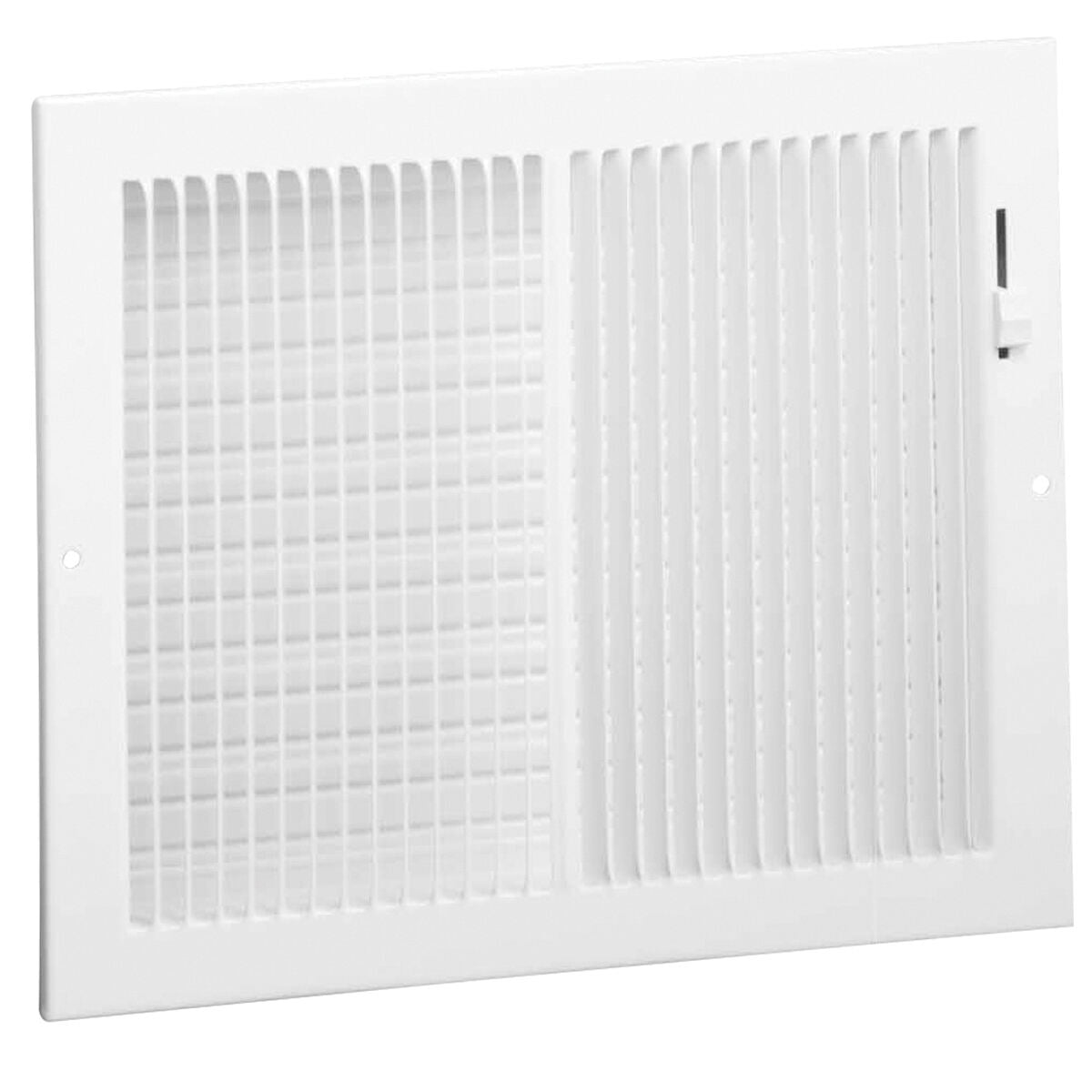

Hart & Cooley 010844 is a sidewall/ceiling register with an integral multi-shutter damper for heating and cooling air distribution. The 12" x 12" stamped steel face has a bright white enamel finish and 1/3" spaced fins set at a 45 degree angle providing two-way deflection. The galvanized multi-shutter valve includes interlocking valve louvers for positive shut-off and opens to a 1-5/8" depth for shallow duct installations.

• Stamped steel construction with bright white enamel finish; nominal size 12" x 12"
• 1/3" fin spacing at a 45 degree angle providing two-way deflection
• Galvanized multi-shutter damper with interlocking valve louvers and 1-5/8" open depth

Product Highlights

12" x 12" stamped steel sidewall/ceiling register with 1/3" fins, 45 degree deflection, and integral multi-shutter damper

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 010844

Technical Specifications

• Brand: Hart & Cooley
• MPN: 010844
• Series/Model: 661
• Alternate MPN: 661-12-12-W
• Product Type: Sidewall/Ceiling register
• Nominal Size: 12" x 12"
• Overall Dimensions: 13-5/8" x 1-5/8" x 13-5/8"
• Material: Stamped steel
• Finish: Bright white enamel
• Fin Spacing: 1/3"
• Fin Angle: 45 degree
• Deflection: Two-way
• Damper Type: Galvanized multi-shutter damper
• Valve Louvers: Interlocking valve louvers for positive shut-off
• Depth (Open): 1-5/8"
• Application: Heating and cooling; sidewall or ceiling installations; suitable for shallow duct
• Individual Item Weight: 3.6 lb
• Replacement MPN: 9178
• UPC: 684048108449
