Hart & Cooley 010727 Baseboard Diffuser 4 Foot

Product Description

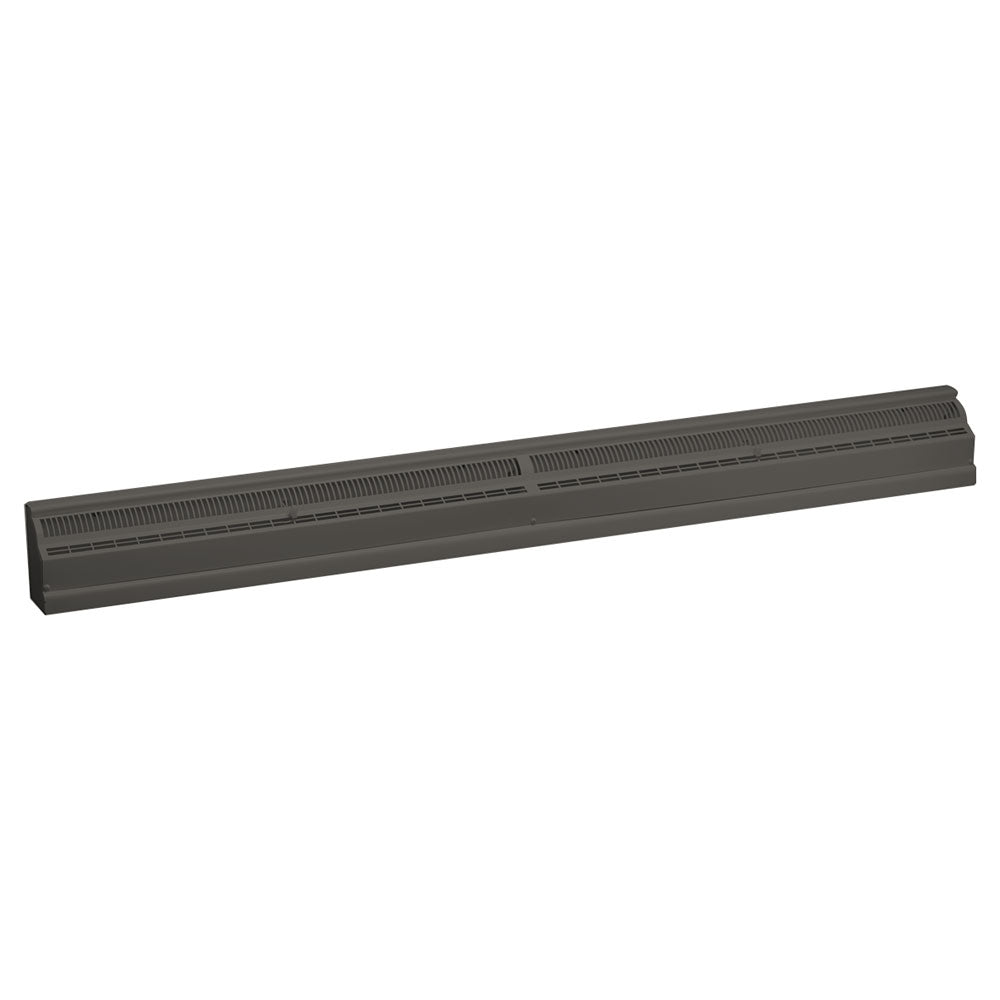

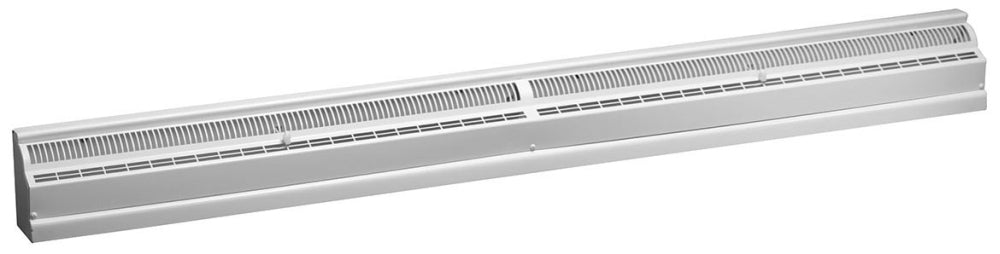

The HART & COOLEY 010727 Baseboard Diffuser is designed for residential applications. Constructed from steel, it measures 48 inches in length, 2-23/32 inches in width, and 4-1/2 inches in height, with a free area size of 54 square inches. It features dual valves and provides an airflow rating of 55 to 150 CFM and a face velocity of 300 to 800 FPM.

• Airfoil valves reduce resistance
• Equal air distribution over the length of the diffuser
• Dual valves

Product Highlights

All steel construction with airfoil valves to reduce resistance and dual valves for equal air distribution. Face can be easily removed.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 010727
• Country of Origin: MEXICO

Technical Specifications

• CATALOG NUMBER: 010727
• CUSTOMER UPC: 68404810727
• Category: HVAC/R & Fans
• Description: Baseboard Diffuser; Type Baseboard; Overall Dimensions 48 Inch Length x 2-23/32 Inch Width x 4-1/2 Inch Height; Free Area Size 54 Square Inch; Material Steel; Finish/Color Golden Sand; Inclusions/Features Dual Valve; Nominal Size 4 Foot Length; Bottom Opening Size 24 Inch Length x 2-5/16 Inch Width; Air Flow Rating 55 to 150 CFM; Face Velocity 300 to 800 FPM; Application Residential
• Features/Benefits: Airfoil valves reduce resistance; Equal air distribution over the length of the diffuser; Dual valves; Face can be easily removed
• Finish Color: Golden Sand
• Free Area Size: 54 Square Inch
• Inclusions Features: Dual Valve
• Manufacturer Name: Hart & Cooley
• Manufacturer Part Number: 464GS
• Material: Steel
• Overall Dimensions: 48 Inch Length x 2-23/32 Inch Width x 4-1/2 Inch Height
• Series/Model: 464
• Type: Baseboard
• Nominal Size: 4 Foot Length
• Bottom Opening Size: 24 Inch Length x 2-5/16 Inch Width
• Air Flow Rating: 55 to 150 CFM
• Face Velocity: 300 to 800 FPM
• Application: Residential
• Length: 4'
• Base Projection: 2-23/32 in
• Height: 4-1/2 in
• Overall Length: 48 in
• Product Type: Baseboard Diffuser
• Series: 464
• Size: 4 ft
• Brand: Hart & Cooley
• Finish: Golden Sand
