Hart and Cooley 016314 Gas Vent Increaser (6 in to 7 in) Replacement 16314

Product Description

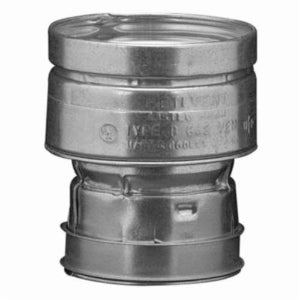

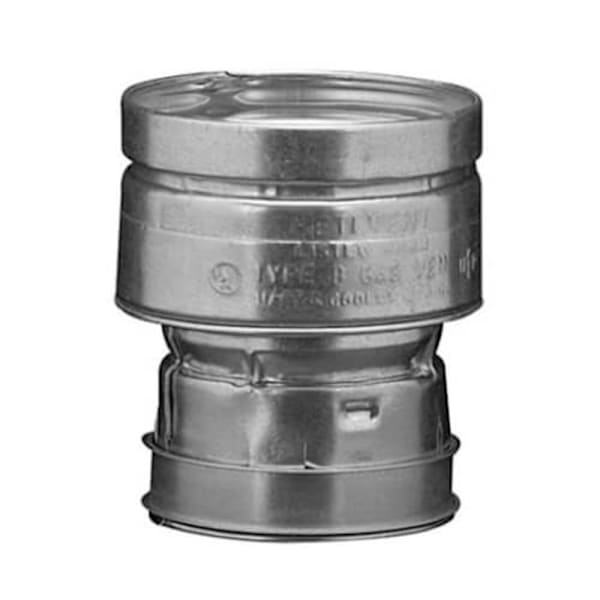

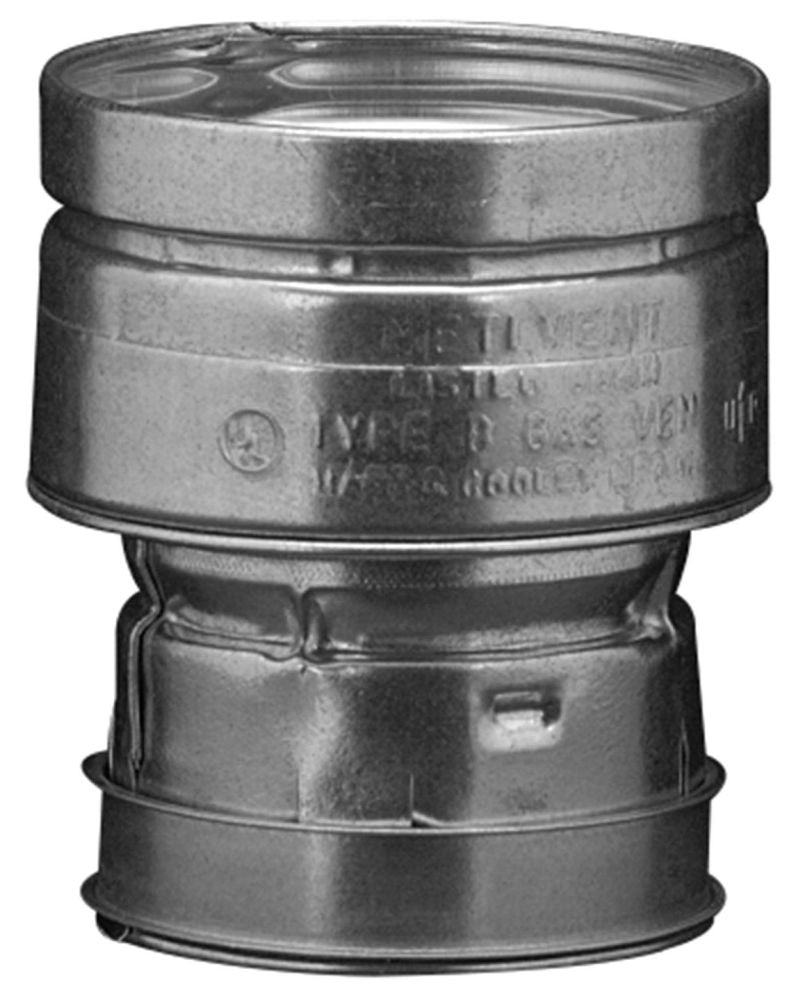

Hart and Cooley 016314 is a double-wall round gas vent increaser that adapts 6-inch Type B gas vent to 7-inch vent. It features a corrosion-resistant 0.012 inch aluminum inner wall, a 0.018 inch G90 galvanized steel outer wall, and a 5-1/4 inch overall length. The fitting uses a deep locking groove and locking tabs/band for a positive-fit joint and meets UL 441 for Category I, negative pressure applications with flue gas temperatures up to 400 F above ambient.

• Double-wall round construction with 0.012 in aluminum inner wall and 0.018 in G90 galvanized steel outer wall
• Adapts 6 in B-vent to 7 in B-vent; overall length 5-1/4 in
• Deep locking groove, locking tabs and sliding band provide a secure, 360-degree positive-fit joint; UL 441 listed

Product Highlights

Double-wall Type B gas vent increaser, 6 in to 7 in, 5-1/4 in length, UL 441 listed, secure locking band connection

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 016314
• Country of Origin: Mexico

Technical Specifications

• Brand: Hart and Cooley
• Manufacturer: Hart and Cooley
• Manufacturer Part Number: 016314
• Alternate Part Number: 6RN7
• Replacement Part Number: 16314
• Product Name: Gas Vent Increaser
• Model/Series: RN
• Type: Double wall, round
• Application: Type B gas vent
• Larger End Size: 7 Inch
• Smaller End Size: 6 Inch
• Size: 6 in to 7 in
• Length: 5-1/4 Inch
• Inner Material: Aluminum
• Inner Material Thickness: 0.012 Inch
• Outer Material: G90 galvanized steel
• Outer Material Thickness: 0.018 Inch
• Finish: G90 galvanized
• Certifications: UL Listed
• Applicable Standard: UL 441
• Operating Conditions: Negative pressure applications; flue gas temperatures not exceeding 400 F above ambient for Category I appliances
• UNSPSC Code: 40141900
• UPC: 68404816314
• Weight: 1.45 lb
• Country of Origin: Mexico
• Unit of Measure: Each
