Hart and Cooley 010715 Floor Diffuser 421-02X14-WH (2 x 14) 421-02X14-WH

Product Description

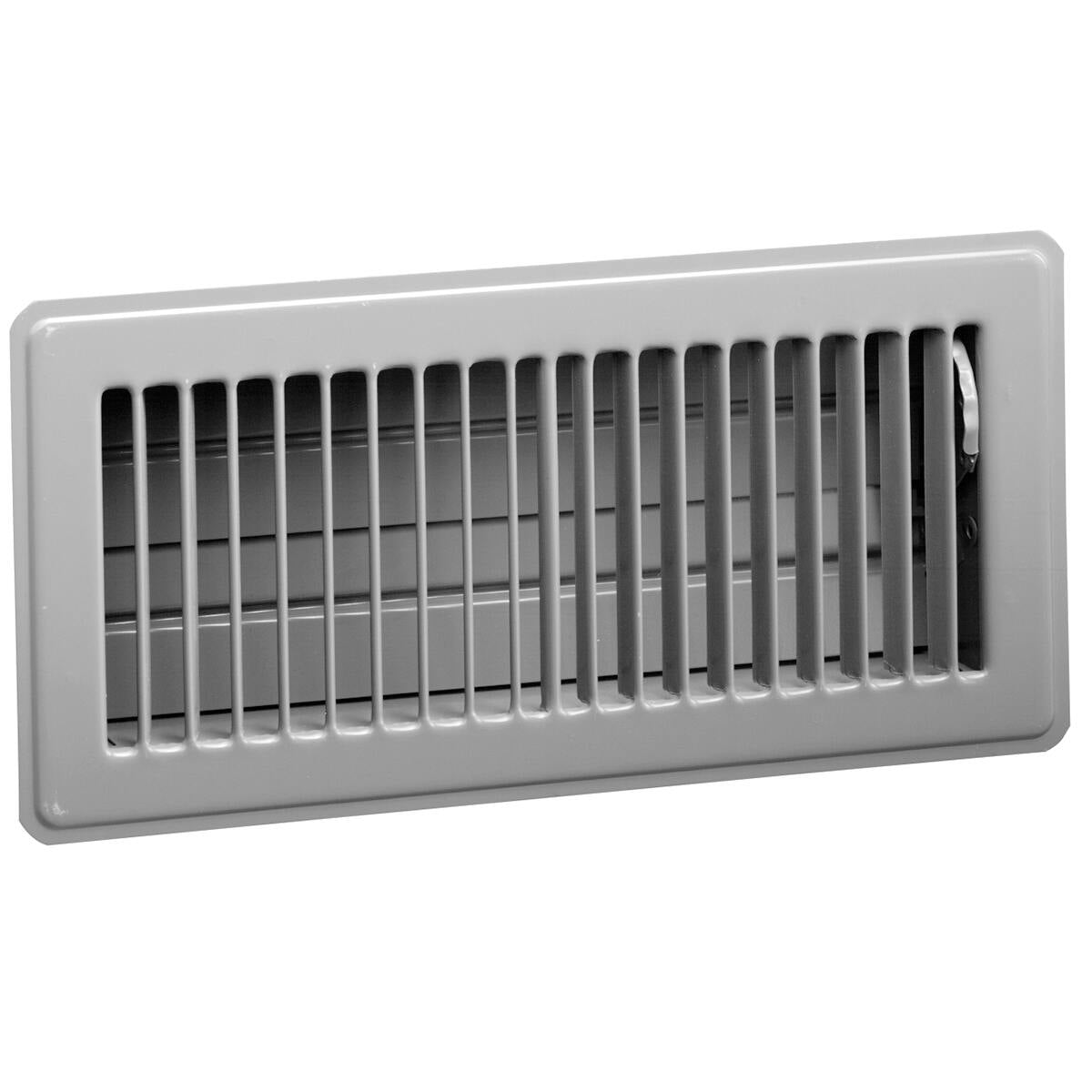

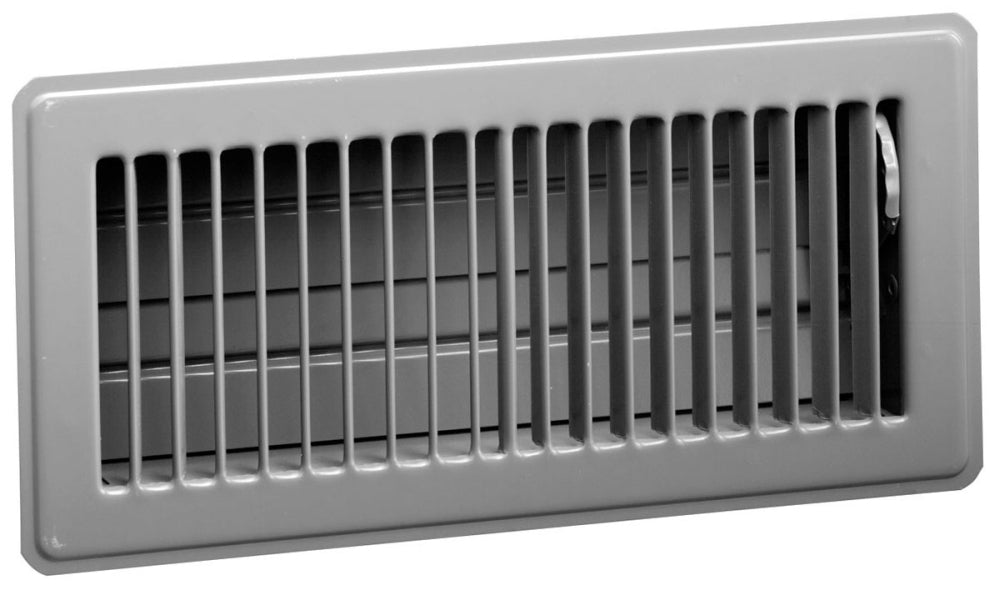

Hart and Cooley 010715 is a rolled-fin floor diffuser for residential HVAC installations, sized for a nominal 2 x 14 inch opening with multi-angle fin setting and foot-operated dial control. The unit features an all-steel heavy-gauge stamped face with welded construction and a rolled flange, includes an opposed blade damper, and provides a free area of 20 square inches; overall dimensions are 15-1/2 in by 2-1/4 in by 3-3/4 in.

• All-steel heavy-gauge stamped face with welded construction and rolled flange for strength and safety
• Multi-angle fin setting with foot-operated dial control; provides 2-way airflow and includes opposed blade damper
• Nominal size 2 x 14 in; overall dimensions 15-1/2 in W x 2-1/4 in D x 3-3/4 in H; free area 20 sq in; blade spacing 1/2 in

Product Highlights

Rolled-fin 2-way floor diffuser, nominal 2 x 14 in, steel construction, foot-operated dial control, opposed blade damper, free area 20 sq in.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 010715
• Country of Origin: United States

Technical Specifications

• Brand: Hart and Cooley
• Manufacturer Part Number: 010715
• Alternate Part Number: 421-02X14-WH; 4212X14W; HY421W-2X14
• Series: 421
• Type: Floor diffuser (rolled fin, 2-way)
• Nominal Size: 2 x 14 in
• Size/Opening: 2 x 14 in
• Overall Dimensions: 15-1/2 in W x 2-1/4 in D x 3-3/4 in H
• Free Area: 20 square inch
• Blade Spacing: 1/2 in
• Material: Steel
• Face/Vane Details: Welded heavy-gauge stamped face
• Construction: Welded, all-steel heavy-gauge
• Actuation Type: Foot-operated dial control
• Inclusions: Opposed blade damper
• Deflection: Multi-angle / 2-way airflow
• Finish: Bright white enamel
• Weight: 1.03 lb (per each)
• Country of Origin: United States
• UPC: 684048107152
