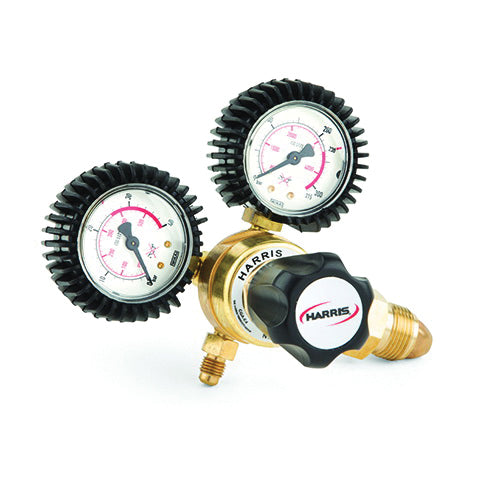

Harris 3000648 1-Stage Light to Medium Duty Purging Regulator Gas Service Argon/Helium/Nitrogen CGA 580 Inlet x 1/4 in 45 deg Flare SAE Outlet

Product Description

The Harris 3000648 is a 1-stage light to medium-duty purging regulator designed for gas services including argon, helium, and nitrogen. This regulator is equipped with a CGA 580 inlet connection and a one-quarter inch 45-degree flare SAE outlet. It includes a fifty millimeter gauge for easy pressure monitoring and operates with a maximum delivery pressure rating of six hundred psig.

• Compact design for efficient use in tight spaces
• Neoprene diaphragm for increased safety and operational longevity
• Rubber gauge guards for enhanced protection

Product Highlights

This regulator is commonly used in HVAC purging, pressure testing, and inert gas blanketing applications. The plastic knob ensures easy grip and precise adjustment, making it user-friendly even in tough working conditions.

Product Information

Standard Information

• Brand: Harris
• Manufacturer: Harris Products Group

Technical Specifications

• Type: 1-Stage Light to Medium Duty
• Gas Service: Argon/Helium/Nitrogen
• Inlet Connection: CGA 580
• Outlet Connection: 1/4 in 45 deg Flare SAE
• Pressure Rating: 600 psig
• Gauge Size: 50 mm
• Diaphragm Material: Neoprene
• Country of Origin: PL
