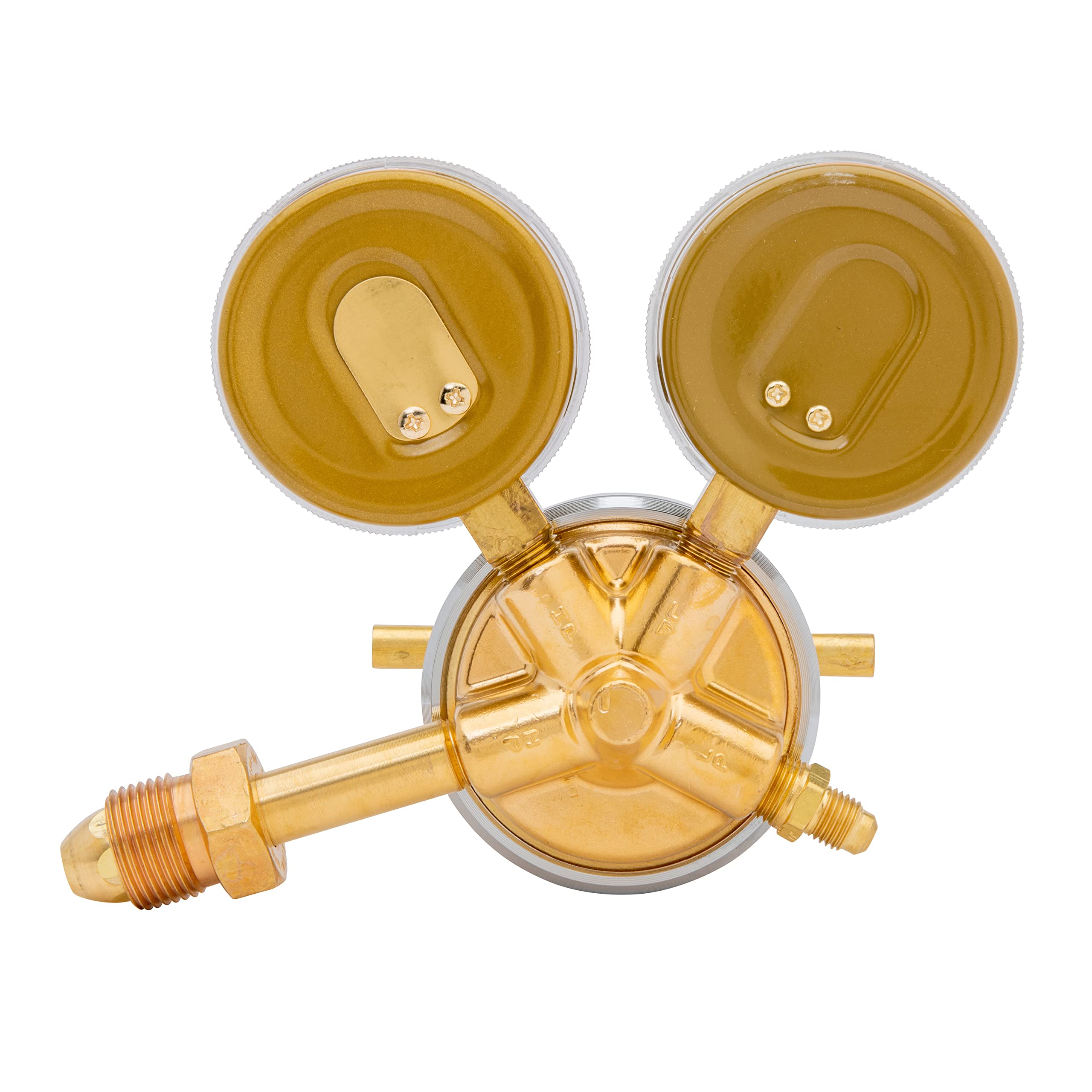

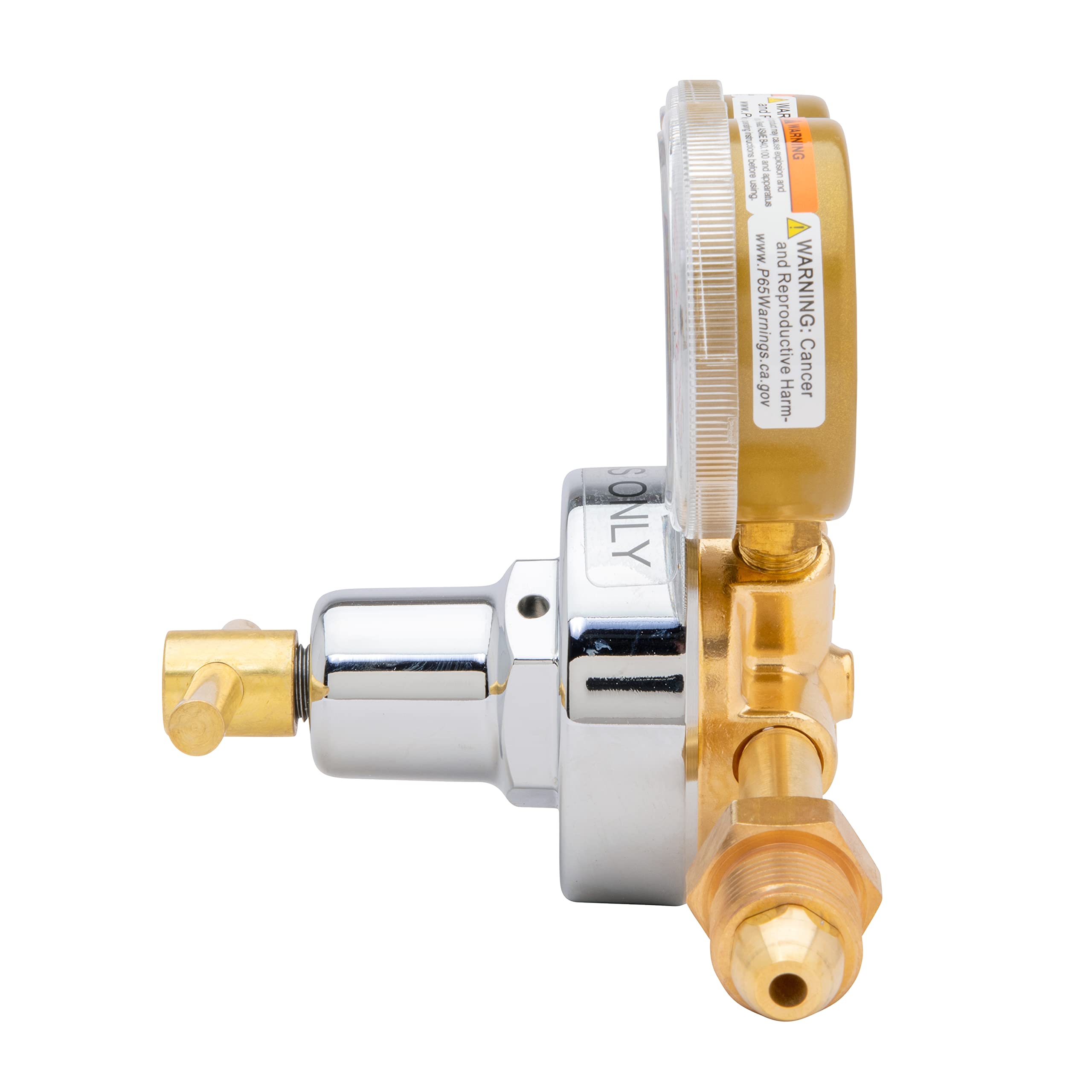

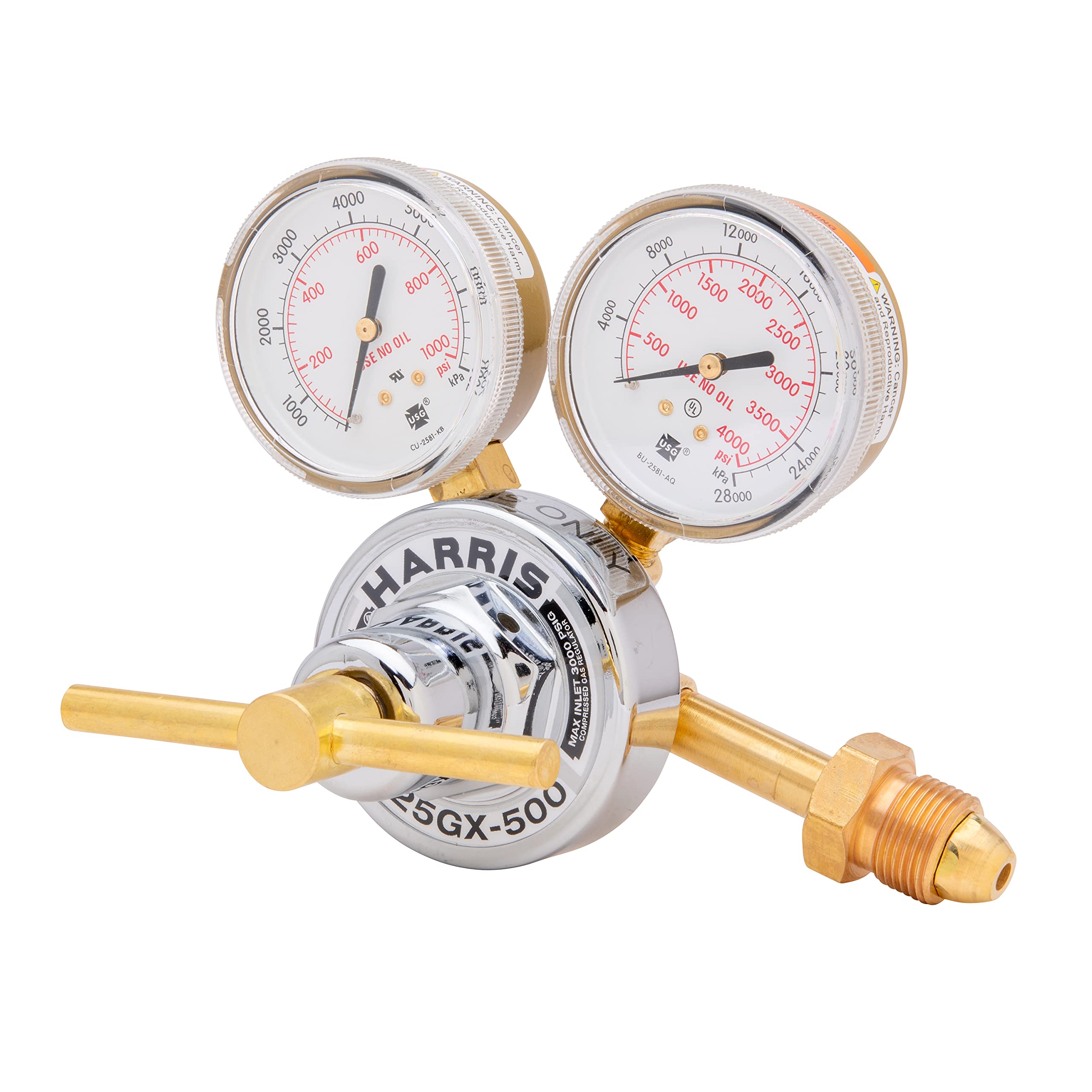

Harris 3000606 25GX Regulator 500-580 Brass Medium

Product Description

The Harris 3000606 25GX Regulator is designed for performance and economy. This single-stage nitrogen purging regulator is ideal for HVAC and other nitrogen pressure testing and blanketing applications.

• Model 25GX
• Ar, He, N2
• CGA 580 Connection

Product Highlights

The Harris 25GX Regulator offers high-end features at an economical price. It is designed for HVAC and other nitrogen pressure testing and blanketing applications. The brass body and chrome-plated zinc bonnet ensure a longer service life, and the neoprene diaphragm provides better pressure control.

Product Information

Standard Information

• Manufacturer: The Harris Products Group
• Brand: Harris
• Model: 25GX

Technical Specifications

• Body Material: Brass
• Capacities: Medium to Heavy
• Diaphragm Material: Neoprene
• Gas Type: Argon, Helium, Nitrogen
• Gauge Size: 2.5 inches (steel)
• Inlet Connection: CGA 580
• Inlet Pressure Max: 3000 psi
• Length: 4.99 inches
• Width: 7.2 inches
• Weight: 2.9 lbs
