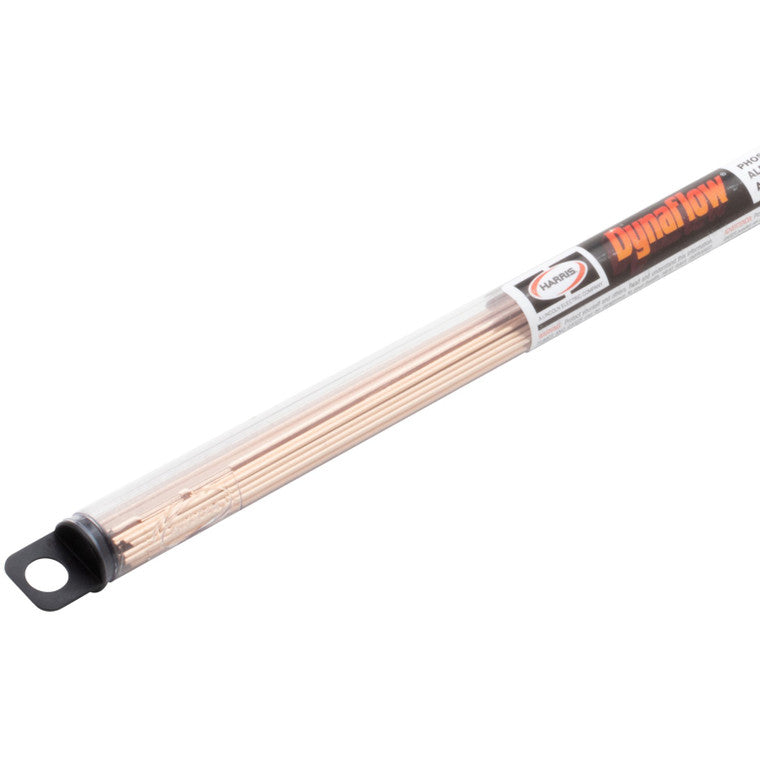

Harris D620F1 Dynaflow Phos-Copper-Silver Brazing Rod 1 lb Tube (28 Sticks, 0.05 x 1/8 x 20 in)

Product Description

The Harris D620F1 is a Dynaflow phos-copper-silver brazing alloy supplied in a 1 lb stick tube. The alloy composition is 6% silver, 6.1% phosphorus, and 87.9% copper, provided as .050 x 1/8 in cross-section sticks, 20 in length, typically supplied as 28 sticks per tube. It melts and flows at temperatures close to Stay-Silv 15 (about 1300 to 1500 F) and is intended for brazing copper and brass connections.

• Composition: 6% silver, 6.1% phosphorus, 87.9% copper; phos-copper-silver alloy with melting range ~1300 to 1500 °F
• Format: 1 lb stick tube containing 28 sticks, each approximately 0.05 x 0.125 in cross-section and 20 in long
• Application: Designed for brazing copper-to-copper and copper-to-brass; self-fluxing on copper and copper-to-copper joints

Product Highlights

6% silver phos-copper alloy; 28 sticks per 1 lb tube; 0.05 x 1/8 in cross-section, 20 in length; RoHS/REACH compliant

Product Information

Standard Information

• Brand: HARRIS
• Manufacturer Part Number: D620F1
• Country of Origin: US

Technical Specifications

• Brand: Harris
• MPN: D620F1
• Product Name: Dynaflow Phos-Copper-Silver Brazing Alloy
• Alloy Type: Phos-copper-silver
• Material Composition: 6% silver, 6.1% phosphorus, 87.9% copper
• Form: Stick
• Container Size: 1 lb
• Container Type: Stick tube
• Stick Count: 28 sticks per tube
• Stick Length: 20 in
• Stick Cross-Section: 0.05 x 0.125 in (0.050 x 1/8 in)
• Diameter: 1/8 in
• Melting Temperature Range: 1300 to 1500 °F
• Typical Use: Brazing copper-to-copper and copper-to-brass
• Fluxing: Self-fluxing on copper and copper-to-copper; use appropriate flux for brass or copper-to-brass
• Not Recommended For: Steel and other ferrous base metals
• Country of Origin: US
• Weight: 1.00 lb
• UPC: 684032006454
• Standards / Compliance: RoHS compliant; conforms to EU REACH
