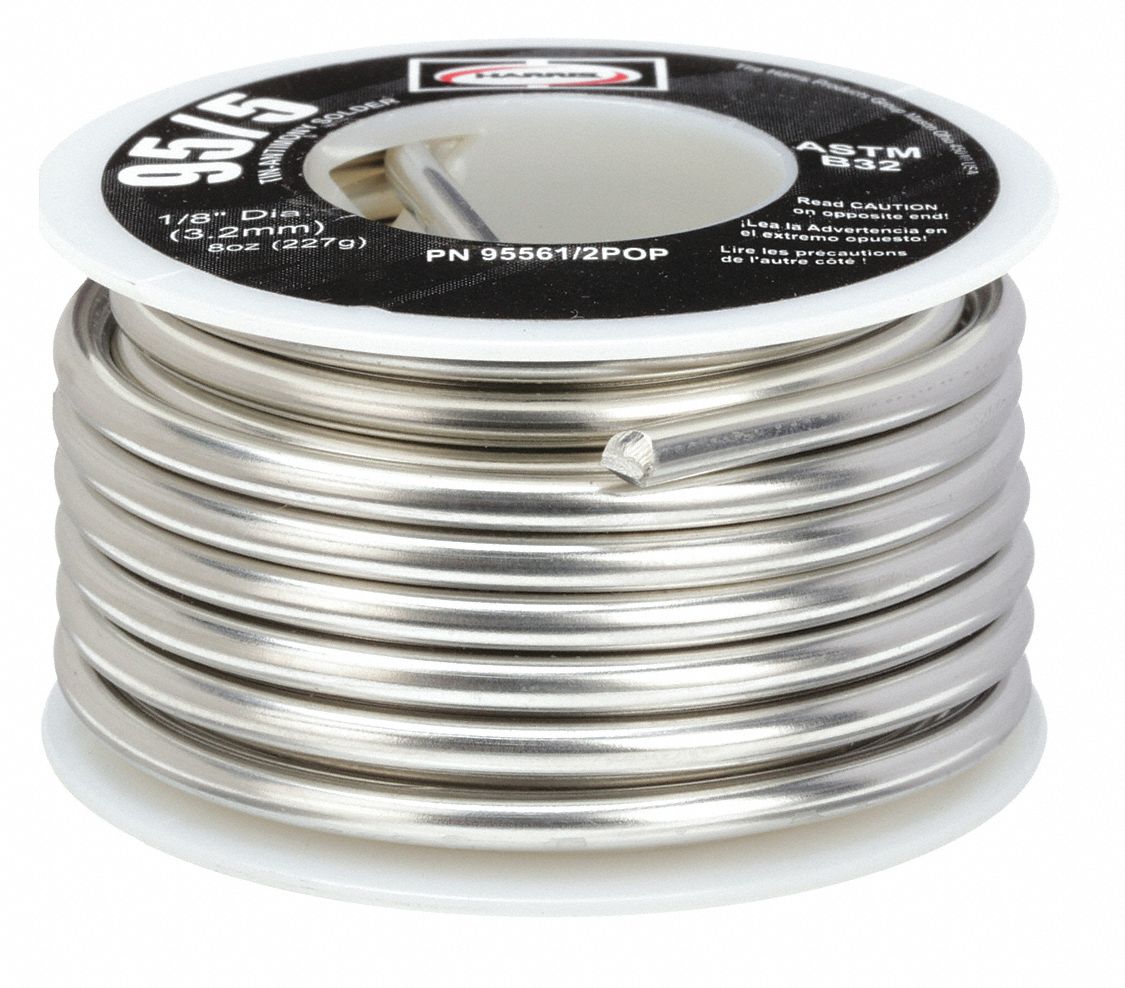

Harris 95561/2POP Solid Wire Lead-Free Solder (0.125 in x 8 oz) 331760

Product Description

Harris 95561/2POP is a solid wire lead-free solder composed of 95% tin and 5% antimony with a narrow melting range of 452 to 464 °F. It is supplied on an 8 oz spool with 0.125 in (1/8 in) wire diameter and requires flux for proper wetting. The alloy meets ASTM B-32 and J-STD-006 and is used for electrical and small-connection applications as well as copper plumbing and general soldering.

• Composition: 95% tin, 5% antimony (95/5 Sb5) lead-free alloy.
• Melting range 452 to 464 °F (solidus 452 °F / 233 °C; liquidus 464 °F / 240 °C); narrow pasty range.
• Form: 0.125 in (1/8 in) solid wire on an 8 oz spool; flux required; meets ASTM B-32 and J-STD-006; RoHS and NSF/ANSI/CAN 372 compliant.

Product Highlights

95/5 tin-antimony solid wire; 0.125 in diameter; 8 oz spool; melting range 452–464 °F; flux required.

Product Information

Standard Information

• Brand: HARRIS
• Manufacturer Part Number: 95561/2POP
• Country of Origin: United States

Technical Specifications

• Brand: Harris
• Manufacturer Part Number: 95561/2POP
• Alternate MPNs: 331760, 327940
• Alloy/Composition: 95% Tin, 5% Antimony (95/5 Sb5)
• Solder Series: 95/5
• Form: Solid wire
• Wire Diameter: 0.125 in (1/8 in)
• Net Weight: 8 oz (0.5 lb)
• Container Type: Spool
• Melting Range (°F): 452 to 464 °F
• Solidus (°F / °C): 452 °F / 233 °C
• Liquidus (°F / °C): 464 °F / 240 °C
• Flux Requirement: Flux required
• Recommended Flux: Harris Water Soluble Plumbing Flux (ASTM B813) for copper/brass; Harris Stay Clean Liquid Flux for steel/ferrous metals
• Standards: ASTM B-32 (Alloy Sb5); J-STD-006
• Certifications/Compliance: RoHS; NSF/ANSI/CAN 372; US Safe Drinking Water Act Amendments; EU REACH
• Primary Applications: Electrical and small-connection applications; copper plumbing; general soldering
• Country of Origin: United States
• UPC: 684032064553
• Packaging: 8 oz spool
