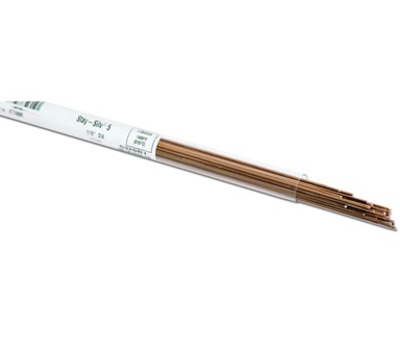

HARRIS 5620F15P Stay-Silv 5% 5 lb. Tube 0.05 x 1/8 x 20 in. Brazing Alloy - 28 Sticks

Product Description

The HARRIS 5620F15P is a brazing alloy that comes in a five-pound tube. It measures 0.05 inches by 1/8 inches and is twenty inches long. This product is designed for applications where a close fit cannot be maintained. It is slightly more ductile compared to Harris 0 or Stay-Silv 2, making it suitable for medium-range brazing tasks.

• 1350 to 1550 degrees Fahrenheit brazing range

• Solidus point at 643 degrees Celsius

• Liquidus point at 815 degrees Celsius

Product Highlights

This alloy is perfect for bridging gaps in joints with minimal clearance, enhancing the effectiveness of the brazing process.

Product Information

Standard Information

• Brand: HARRIS

• Product ID: 111051330

Technical Specifications

• MPN: 5620F15P

• Container Size: 5 lb

• Quantity: 28 sticks

• Material Composition: 5% Silver, 6% Phosphorus, 89% Copper

• Application: Used to bridge gaps where close fit-up cannot be maintained; recommended joint clearance is 0.003 to 0.006 inches

• Specifications Met: AWS A5.8 BCuP-3, ASME SFA 5.8 BCuP-3, ISO 17672 CuP 281, RoHS Certified

• Package Quantity: 28 per tube

• Fluidity Rating: 3
