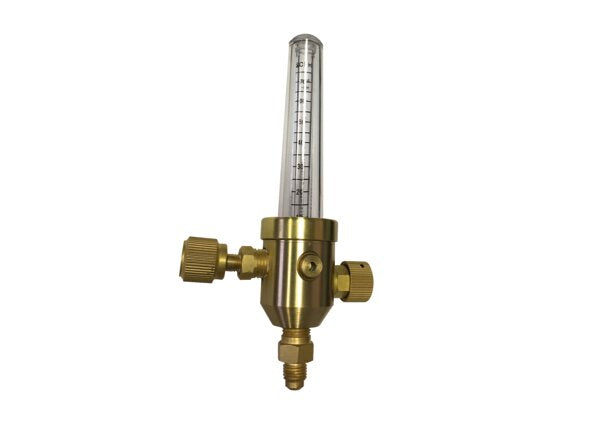

HARRIS 5400855 Model 31 Nitrogen-Purging Flowmeter

Product Description

The HARRIS 5400855 Model 31 is a flowmeter that allows for regulated flow of nitrogen gas. It is built to prevent oxidation and contamination during gas service. This model is compensated to fifty psig, ensuring stable performance. The construction features a durable brass body and includes a needle valve for precise flow control. The flowmeter is designed with 1/4 inch SAE flare inlet and outlet connections, suitable for various applications requiring nitrogen gas.

• Light-duty nitrogen flowmeter
• Compensated for up to fifty psig
• Vertical mounting required

Product Highlights

This flowmeter is optimal for light-duty applications involving nitrogen gas. It is engineered for easy installation and reliable operation in a vertical position.

Product Information

Standard Information

• Brand: HARRIS
• MPN: 5400855

Technical Specifications

• Equipment: Flowmeters
• Body Ports: Brass
• Compensated PSIG: 50
• Duty: Light
• Flow Capacity (SCFH): 0 - 70
• Gas / Gas Service: Nitrogen
• Inlet Connection: 1/4 in. SAE (F) flare
• Maximum Inlet Pressure (PSIG): 100
• Outlet Connection: 1/4 in. SAE (M) flare
• Warranty: 1 Year
