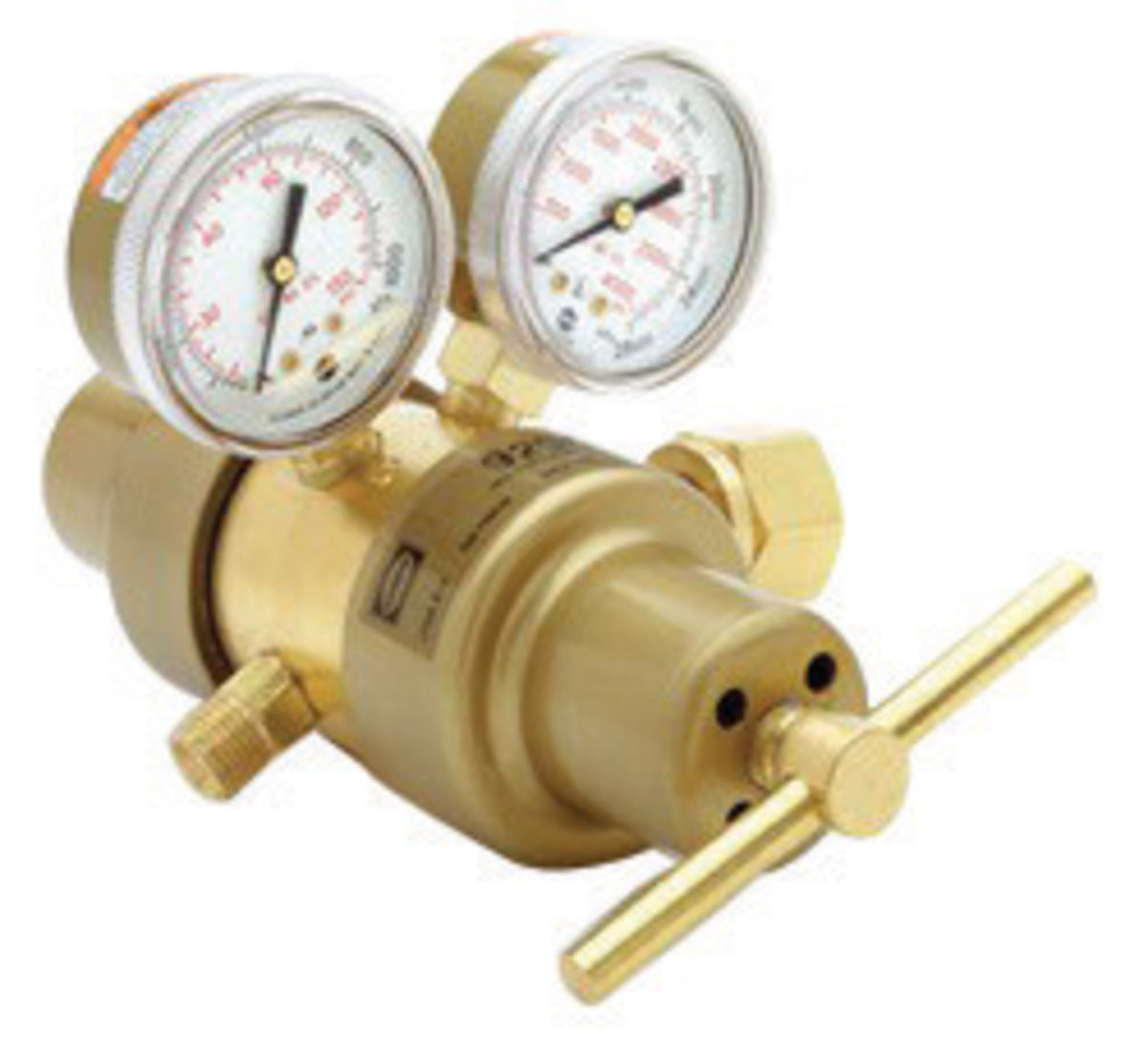

Harris 3302687 9296ss-50-580 Regulator

Product Description

The HARRIS 3302687 9296SS-50-580 regulator is designed for applications requiring constant delivery pressure across a range of inlet pressures. This heavy-duty two-stage flow gauge regulator is suitable for gaseous withdrawal from argon, helium, and nitrogen cylinders. It features a 2 1/2" brass scale gauge and a self-reseating internal H.P. safety valve.

• Brass body construction
• One piece encapsulated seat design with an internal filter and a PTFE teflon seat
• Self seating internal H.P. safety valve

Product Highlights

Designed for constant delivery pressure, the HARRIS 3302687 regulator is ideal for laboratory, industrial, and welding applications.

Product Information

Standard Information

• Brand: HARRIS
• Manufacturer Part Number: 3302687
• Country of Origin: Mexico

Technical Specifications

• Regulator Type: Two Stage Regulator
• Brand: Harris
• Manufacturer Part Number: 3302687
• Gas: Ar, He, N2
• Maximum inlet: 3000 psig
• Delivery pressure range: 0 to 50 psig
• Delivery pressure gauge: 60 psig
• Supply pressure gauge: 4000 psig
• Inlet connection: CGA 580
• Outlet connection: 5/8”-18 RH(F)
• Country of Manufacture: Mexico
