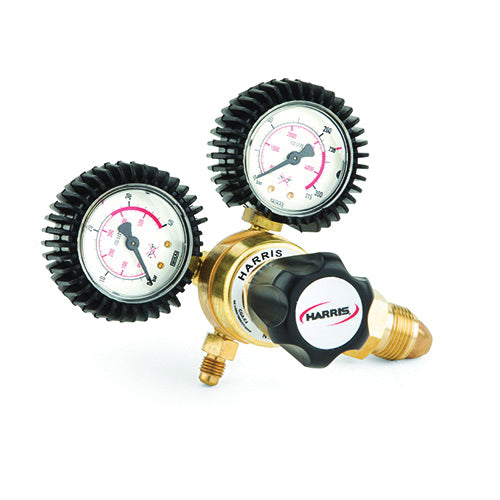

Harris 3000648 1-Stage Light to Medium Duty Purging Regulator Gas Service Argon/Helium/Nitrogen CGA 580 Inlet x 1/4 in 45 deg Flare SAE Outlet 50 mm Gauge

Product Description

The Harris 3000648 1-Stage Light to Medium Duty Purging Regulator is designed for efficient gas control in various applications such as HVAC purging, pressure testing, and blanketing with nitrogen or other inert gases. This regulator features a CGA 580 inlet connection and a 1/4 inch 45-degree flare SAE outlet. It includes a 50 mm gauge and is built to handle up to 600 psig pressure. The regulator is compact and lightweight, making it ideal for situations where weight and size are crucial considerations.

• Compact and lightweight design
• Ergonomic plastic knob for precise adjustment
• Durable brass body and bonnet

Product Highlights

The Harris 3000648 regulator is equipped with large, easy-to-read gauges and rubber gauge guards for added protection. It has a neoprene diaphragm for enhanced safety and longevity. The plastic knob ensures easy grip and fine adjustment. This regulator is a versatile tool perfect for various gas control tasks in industrial and HVAC settings.

Product Information

Standard Information

• Brand: Harris
• Manufacturer: Harris Products Group
• Model: 3000648
• UPC: 725636316799
• Country of Origin: PL

Technical Specifications

• Type: 1-Stage Light to Medium Duty
• Gauge Size: 50 mm
• Gas Service: Argon/Helium/Nitrogen
• Pressure Rating: 600 psig
• Inlet Connection: CGA 580
• Outlet Connection: 1/4 in 45 deg Flare SAE
• Diaphragm Material: Neoprene
• Standards: CGA E-4
• Application: HVAC Purging, Pressure Testing and Blanketing
