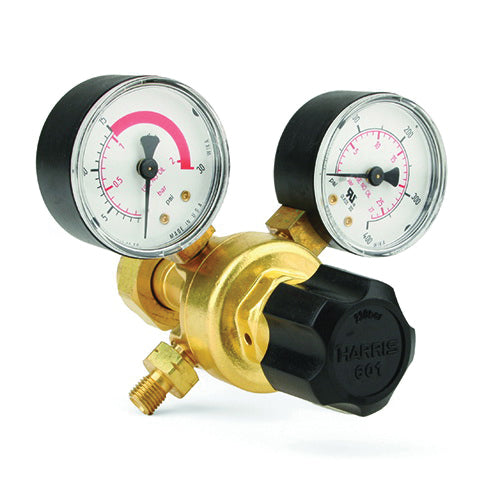

Harris 3000412 1-Stage Light to Medium Duty General Purpose Regulator, Gas Service Oxygen, CGA 540 Inlet x A 3/8-24 LH Outlet, 50 mm Gauge

Product Description

The Harris 3000412 is a 1-stage regulator designed for light to medium duty operation with oxygen gas service. This unit features a CGA 540 inlet connection, a three-eighths inch twenty-four left-hand outlet, and a fifty millimeter gauge. It is compact, economical, and ideal for various applications where size and cost are important factors.

• 1-stage design suitable for light to moderate tasks
• Large, easy-to-read fifty millimeter gauge
• Neoprene diaphragm for enhanced reliability

Product Highlights

This regulator is part of the Harris expert series and is built for long service life with essential features usually found in more expensive units.

Product Information

Standard Information

• Brand: Harris Products Group
• Country of Origin: US

Technical Specifications

• Type: 1-Stage Light to Medium Duty
• Gas Service: Oxygen
• Inlet Connection: CGA 540
• Outlet Connection: A 3/8-24 LH
• Pressure Rating: 100 psig
• Diaphragm Material: Neoprene
• Gauge Size: 50 mm
• Warranty: 7 Years
