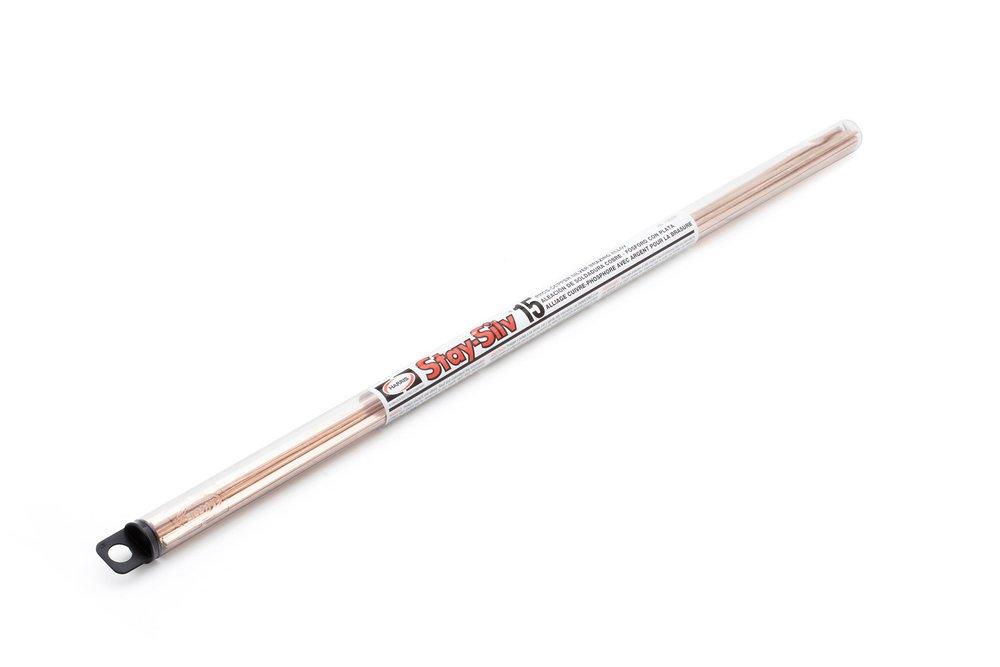

Harris 15620S1 Stay-Silv 15 20 in Brazing Ring

Product Description

The Harris Stay-Silv 15 Brazing Ring, with MPN 15620S1, is suitable for brazing applications in HVAC and refrigeration. It is a preferred choice for brazing copper and other non-ferrous metals. The wide melting range allows for filling loose connections and capping finished joints. When heated above its liquidus point, it can penetrate tighter joints, making it versatile for various uses.

• Ideal for brazing air conditioning and refrigeration connections.
• Corrosion resistance similar to copper base metal.
• Suitable for brazing low nickel copper/nickel base metals.

Product Highlights

The Stay-Silv 15 is designed to perform effectively in challenging situations, such as thermal expansion and service vibration.

Product Information

Standard Information

• Brand: Harris
• MPN: 15620S1

Technical Specifications

• Length: 20 inches
• Diameter: 1/8 inches
• Series: Stay-Silv 15
• Brazing Range: 1300 to 1500 degrees Fahrenheit
• Container Size: #11
• Container Type: Stick
• Manufacturer Name: Harris Products Group
• Applicable Materials: Copper/Brass
