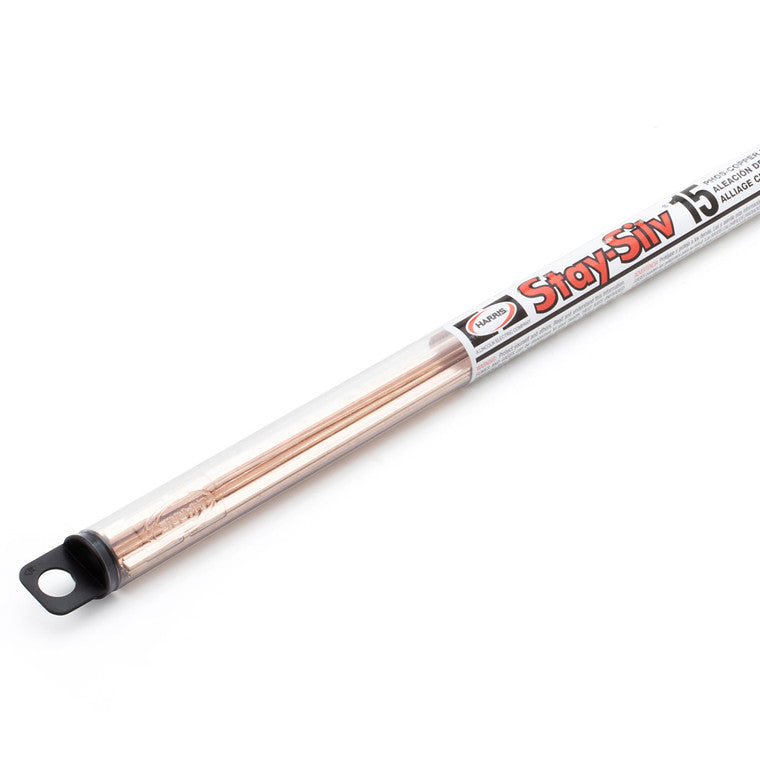

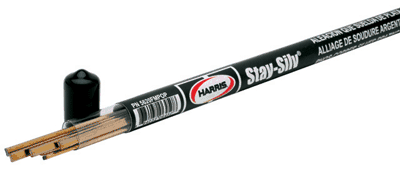

HARRIS 15620F1 Stay-Silv 15 Silver Phos-Copper Brazing Rod 15% 1/8 inch

Product Description

The HARRIS 15620F1 Stay-Silv 15 phos-copper brazing rod is a reliable choice for air conditioning and refrigeration tasks. It has a melting range designed for filling larger gaps, allowing for good ductility under service conditions.

• Ideal for brazing copper in HVAC and refrigeration systems.
• Effective in tight spaces when heated above the liquidus temperature.
• Features a wide melting range suited for loose connections and joint building.

Product Highlights

This brazing alloy is perfect for copper-to-copper applications and is compatible with low zinc brass using Stay Silv white brazing flux.

Product Information

Standard Information

• Brand: HARRIS
• MPN: 15620F1

Technical Specifications

• Material: Silver
• Weight: 16 ounces
• Length: 20 inches
• Chemical Composition: 15% Silver, 5% Phosphorus, Balance Copper
• Liquidus Temperature: 1480°F (804°C)
• Solidus Temperature: 1190°F (643°C)
• Product Height: 20 inches
• Product Width: 0.050 inches
• Diameter: 0.125 inches
