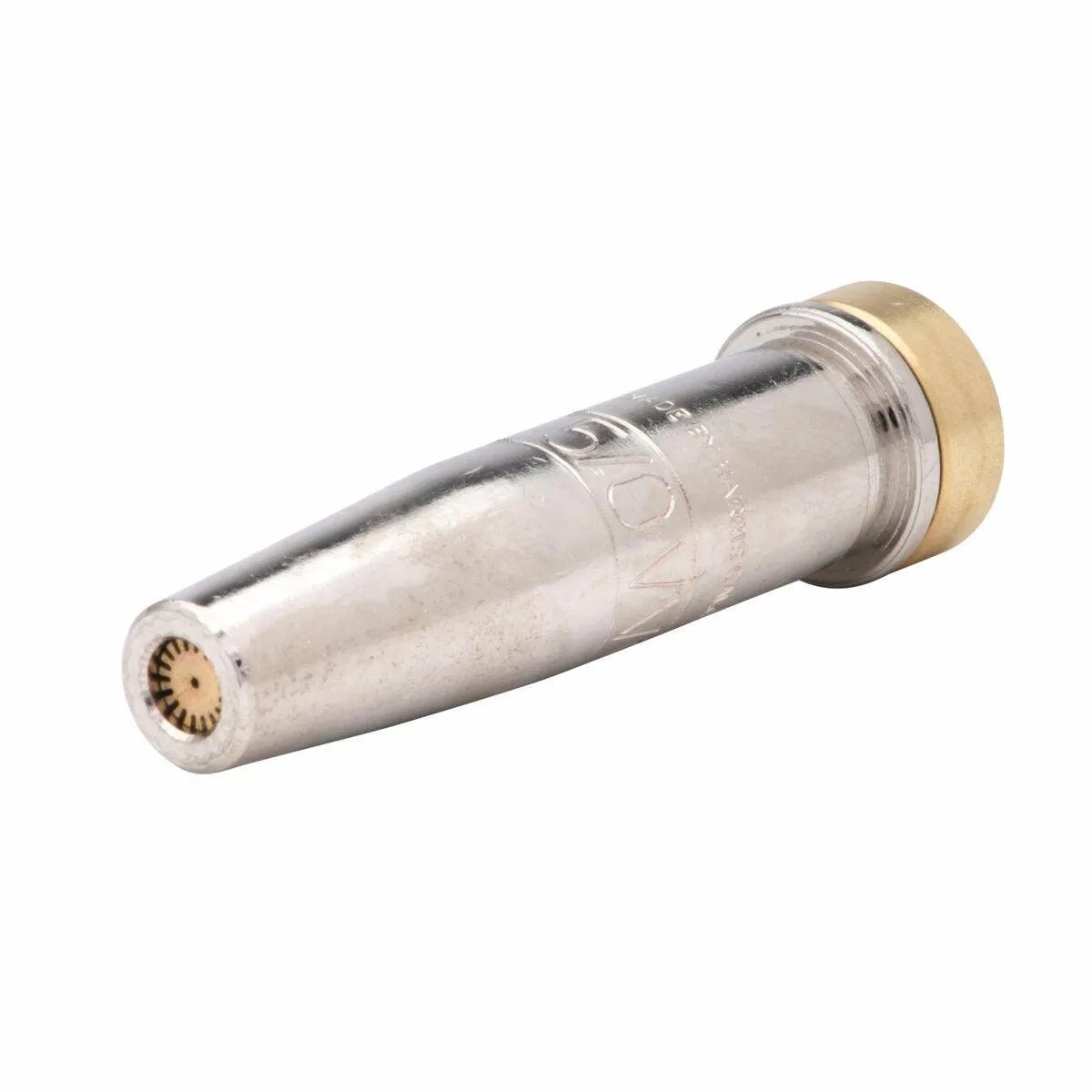

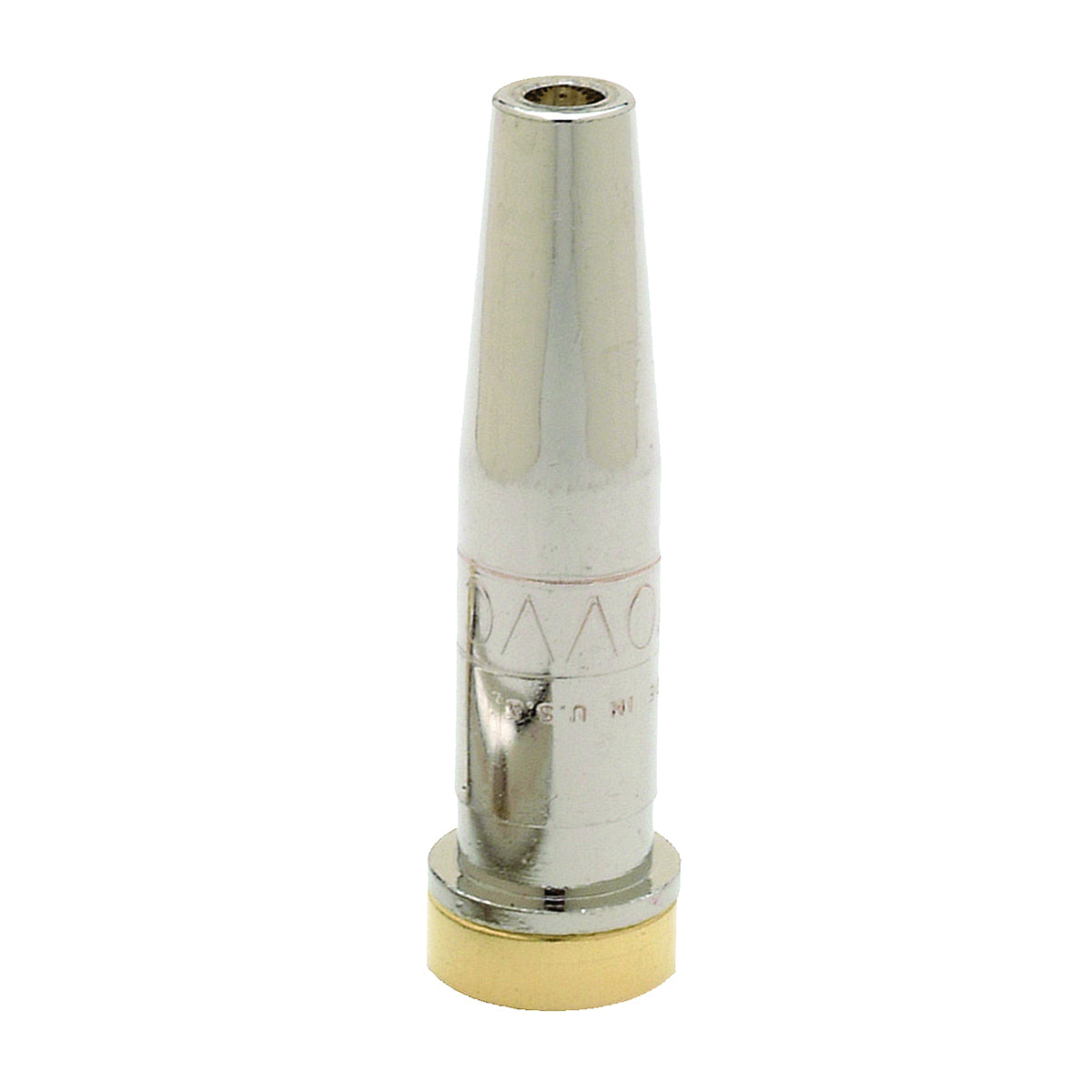

Harris 1502214 6290vvcp-1.5 Cutting Tip

Product Description

The HARRIS 1502214 6290VVCP-1.5 Cutting Tip is a two-piece, propylene, chrome-plated machine cutting tip. It cuts up to 3 in. thick plate at a cutting speed of 9 in. per minute (I.P.M.) and requires 100 PSIG of cutting oxygen. This tip has a 250 SCFH cutting oxygen flow rate and a .11 in approximate kerf. Best when used with Harris machine cutting torch model 98-6F.

• Two-piece construction
• Propylene compatible
• Chrome-plated finish

Product Highlights

The HARRIS 6290VVCP-1.5 cutting tip is suitable for machine cutting and cuts up to 3 inches thick plate.

Product Information

Standard Information

• Brand: HARRIS
• Manufacturer Part Number: 1502214
• Country of Origin: USA

Technical Specifications

• Cutting Thickness: Up to 3 in
• Cutting Speed: 9 in per minute (I.P.M.)
• Cutting Oxygen: 100 PSIG
• Oxygen Preheat: 10 - 25 PSIG low-high
• Preheat Fuel: 4 oz. - 2 PSIG
• Cutting Oxygen Flow Rate: 250 SCFH
• Low Preheat Oxygen Flow Rate: 40 SCFH
• Propylene Flow Rate: 16 SCFH
• Approximate Kerf: .11 in
• Tip Type: Two-Piece Machine Cutting Tip
• Gas Service: Propylene
• Chrome Plated: Yes
• Tip Series: 6290-VVCP
• Tip Size: 1.5
• Fuel Gas: Propylene
• Compatible Torch Harris - Model Number: 98-6E; 98-6F
• Construction: Two-piece - Electroless nickel-plated (outer shell) and Brass (inner shell)
• Style: Machine cutting
• Typical Application: Machine cutting; Demolition; Fabrication; Maintenance; Shipbuilding
• Brand: Harris Products
• For Maximum Material Thickness: 3 in
• Tip Material: Brass, Chrome Plated
• MFG: 1502214
• Type: Cutting Tip
• Used with: 598C-1200080; 98-3; 98-6; BV98-1200124; TH98-12000
• Applications: Cutting
• Pressure [Nom]: 100 psig
• Gas Type: Propylene
