Product Description
The HARRIS 0620FMPOP brazing alloy is designed for brazing processes, specifically for joining brass to brass, copper to copper, and copper to brass. This phos copper alloy contains 0% silver and conforms to AWS classification BCuP-2. It is often used in HVAC and refrigeration applications.
- Alloy form is rod with a bare finish/coating.
- Solidus temperature of 1,310 Degrees F and liquidus temperature of 1,460 Degrees F.
- Fluidity rating of 5.
Product Highlights
This brazing rod is suitable for copper-to-copper or brass joints where close tolerance can be maintained.
Product Information
Standard Information
-
Brand: HARRIS
-
Manufacturer Part Number: 0620FMPOP
-
Country of Origin: United States
Technical Specifications
-
Item: Brazing Alloy
-
Series: Harris 0
-
Process: Brazing
-
Solidus: 1,310 Degrees F
-
Contents: 7.2% Phosphorus, 92.8% Copper
-
Diameter: 1/8 in
-
Liquidus: 1,460 Degrees F
-
Material: 0 Phos Copper
-

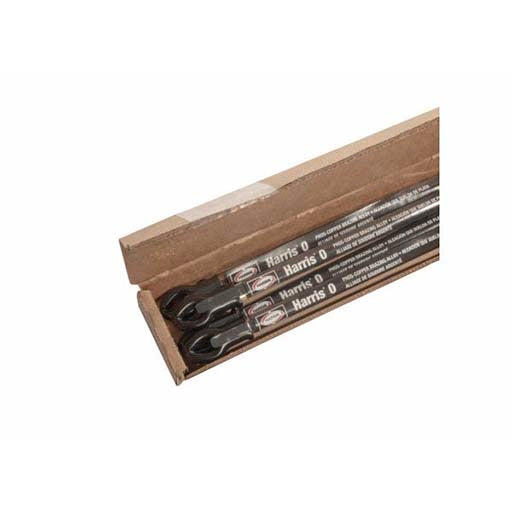

Container: Tube
-
Standards: AWS A5.8, BCuP-2
-

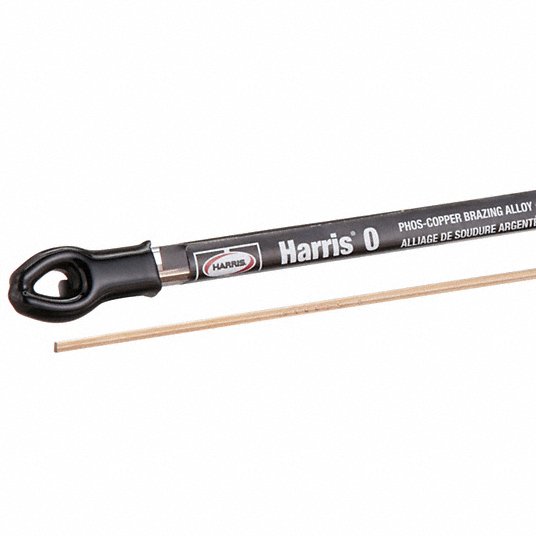

Alloy Form: Rod
-
Alloy Type: Phos Copper
-
Application: Copper to Copper or Brass Joints for Good Fit-Up
-
For Joining: Brass to Copper, Copper to Copper
-
Length (In.): 20 in
-
Container Type: Tube
-
Finish/Coating: Bare
-
For Metal Type: Brass to Brass, Brass to Copper, Copper to Copper
-
Overall Length: 20 in
-
Silver Content: 0 %
-
Fluidity Rating: 5.0
-
Flux Application: Flux Required for Brass to Brass, Flux Required for Brass to Copper, Self-Fluxing for Copper to Copper
-
Package Quantity: 7.0
-
Alloy Composition: 92.75% Copper, 7.1% Phosphorus, 0% Silver, 0.15% Other
-
Brazing Range (F): 1310 to 1475
-
AWS Classification: BCuP-2
-
Joining Applications: Brass to Brass, Brass to Copper, Copper to Copper
-
Series (Description): Harris 0
-
Brazing Temperature Range: 1,345 Degrees F to 1,500 Degrees F
-
Maximum Brazing Temperature: 1,500 Degrees F
-
Minimum Brazing Temperature: 1,345 Degrees F
-
Minimum Soldering Temperature: 1,345 Degrees F
-
Silver Content (Description): 0% Silver
-
Brand: HARRIS
-
Model Number: 0620FMPOP
-
Manufacturer: Harris
-
Product Type: Solder Stick
-
Mfr. Part Number: 0620FMPOP
