Product Description

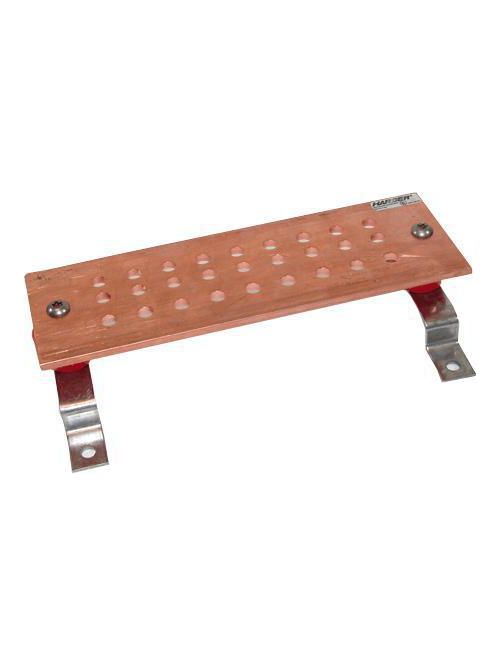

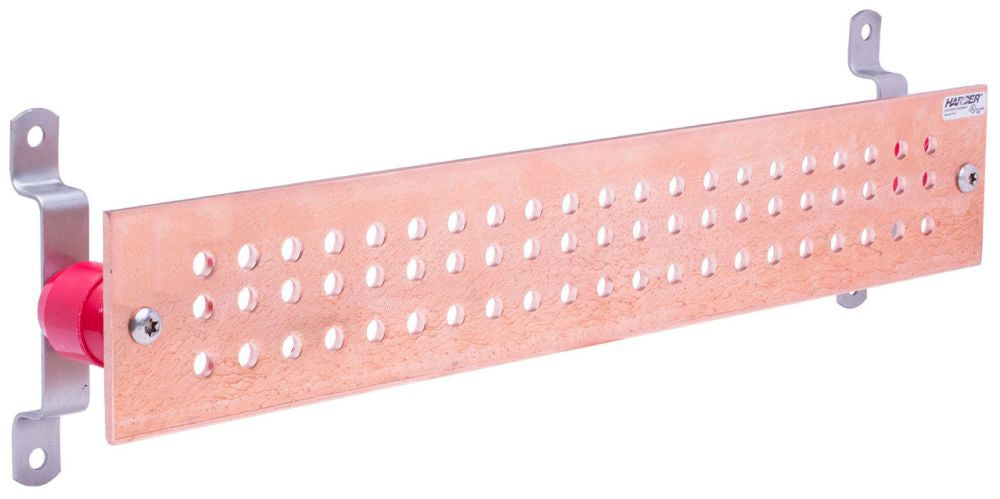

The Harger GBI14424J is a 1/4 x 4 x 24 inch electrotinned ground bar designed for effective grounding applications. This ground bar features a J-hole pattern and is made from electrolytic tough pitch copper alloy, ensuring durability and conductivity. It is ideal for use in electric utility and outside plant environments.
- Stainless steel finish for enhanced durability
- UL listed for safety compliance
- 63 mounting holes for flexible installation
Product Highlights
Use this product for grounding connections in various electrical setups. The GBI14424J provides reliable electrical performance for your grounding needs.
Product Information
Standard Information
-
Brand: Harger Lightning & Grounding
-
Material: Copper
Technical Specifications
-
Size: 14 x 4 x 24 inches
-
Type: Ground Bar Assembly
-
Finish: Stainless Steel
-
Temperature Rating: 2000 degrees Fahrenheit
-
Vertical Hole Spacing: 3/4, 1, and 1 inch on center
-
Horizontal Hole Spacing: 1 inch on center
-
Insulation Class: 2 - 1.88 insulators
-
UL Listing: UL 467
