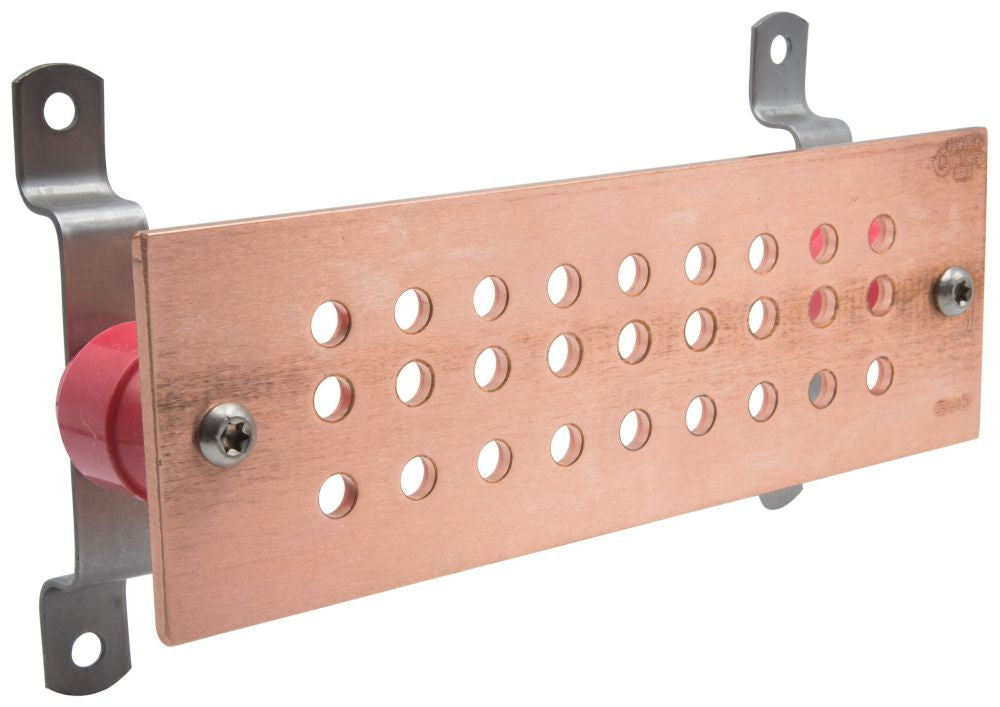

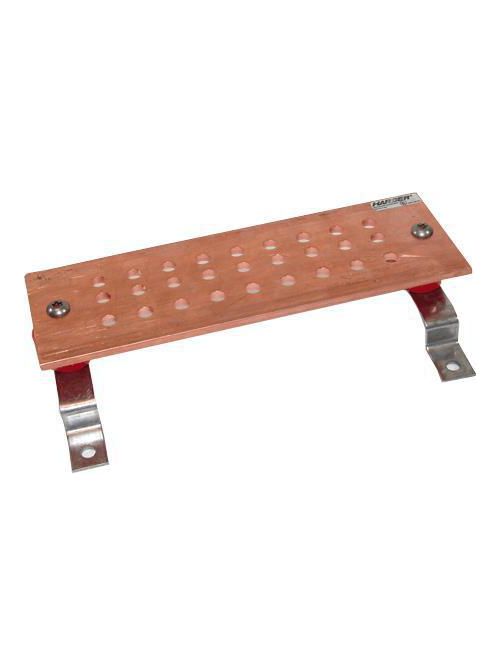

Harger GBI14412J 1/4X4X12 Ground Bar

Product Description

The Harger Lightning & Grounding GBI14412J is a 1/4 x 4 x 12 inch ground bar designed for effective grounding solutions. This ground bar is made from electrolytic tough pitch copper alloy and features a J-pattern configuration for easy installation. It is an ideal choice for professionals looking to ensure safe electrical connections.

• Material: Copper
• 27 mounting holes; hole diameter of 7/16 inches
• UL listed for compliance in both Canada and the US

Product Highlights

For use in utility and electrical applications where reliable grounding is necessary, this ground bar supports a temperature rating of 2000 degrees Fahrenheit and is designed with insulators and mounting brackets.

Product Information

Standard Information

• Brand: Harger Lightning & Grounding
• Model Number: GBI14412J

Technical Specifications

• Type: Ground Bar Assembly
• Size: 1/4 x 4 x 12 inches
• Material: Copper
• Finish: Stainless Steel
• Temperature Rating: 2000 degrees Fahrenheit
• Mounting: 27 - 7/16 mounting holes
• Packaging: 1 per box
• Insulation Class: Class 2 - 1.88 insulators
• UPC: 808475001634
