Product Description
The Tjernlund AS1 AireShare Room-To-Room Fan Ventilator offers efficient air transfer from one room to another. This fan ventilator is designed for hardwired installation and has an air flow capacity of 70 cubic feet per minute. It is ideal for use with ductless HVAC systems to enhance air distribution across rooms.
- Transfer air to rooms that are too hot or cold

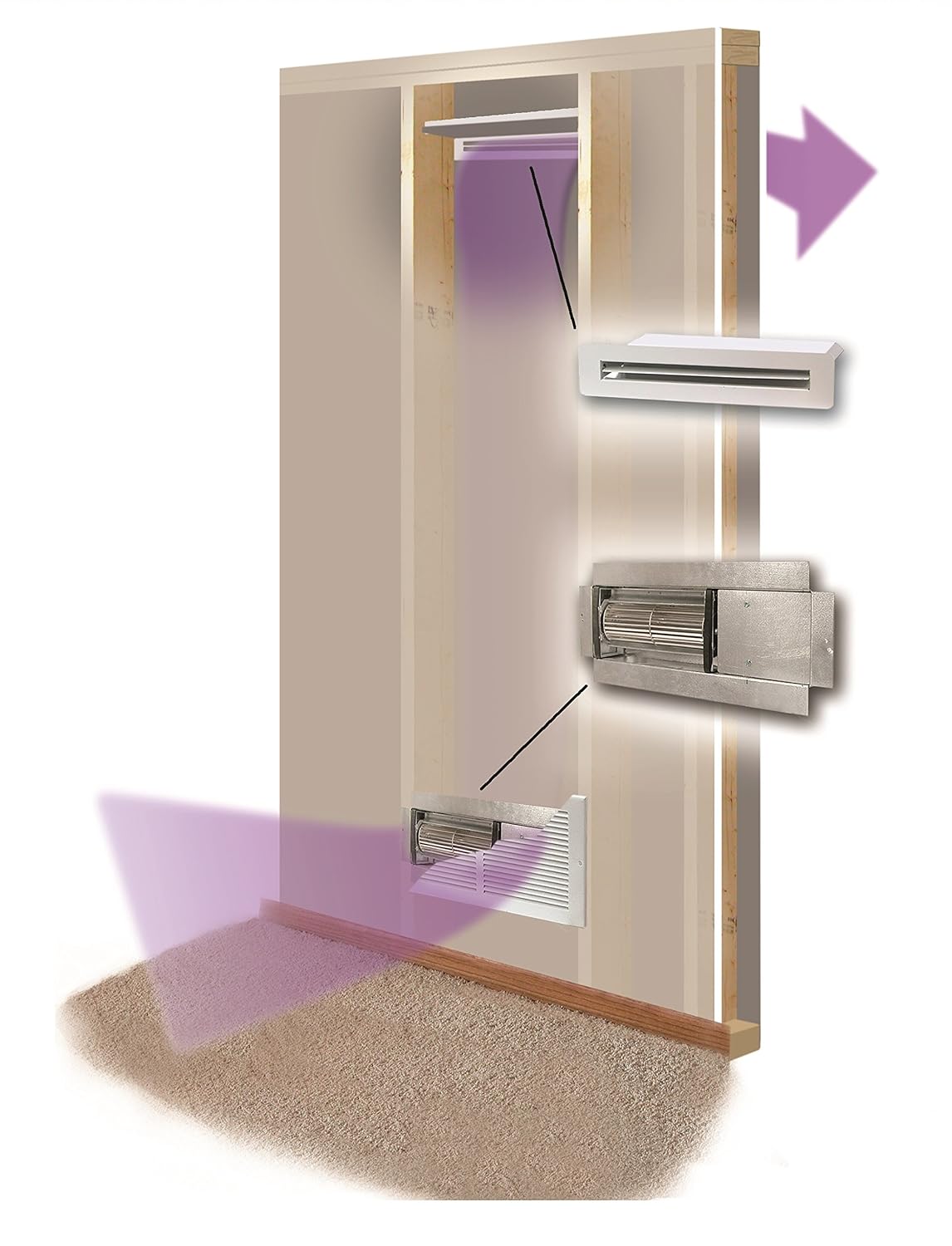

- Quiet tangential blower fits into walls as little as 3 inches deep
- Requires hard wiring to 120 volts AC
Product Highlights

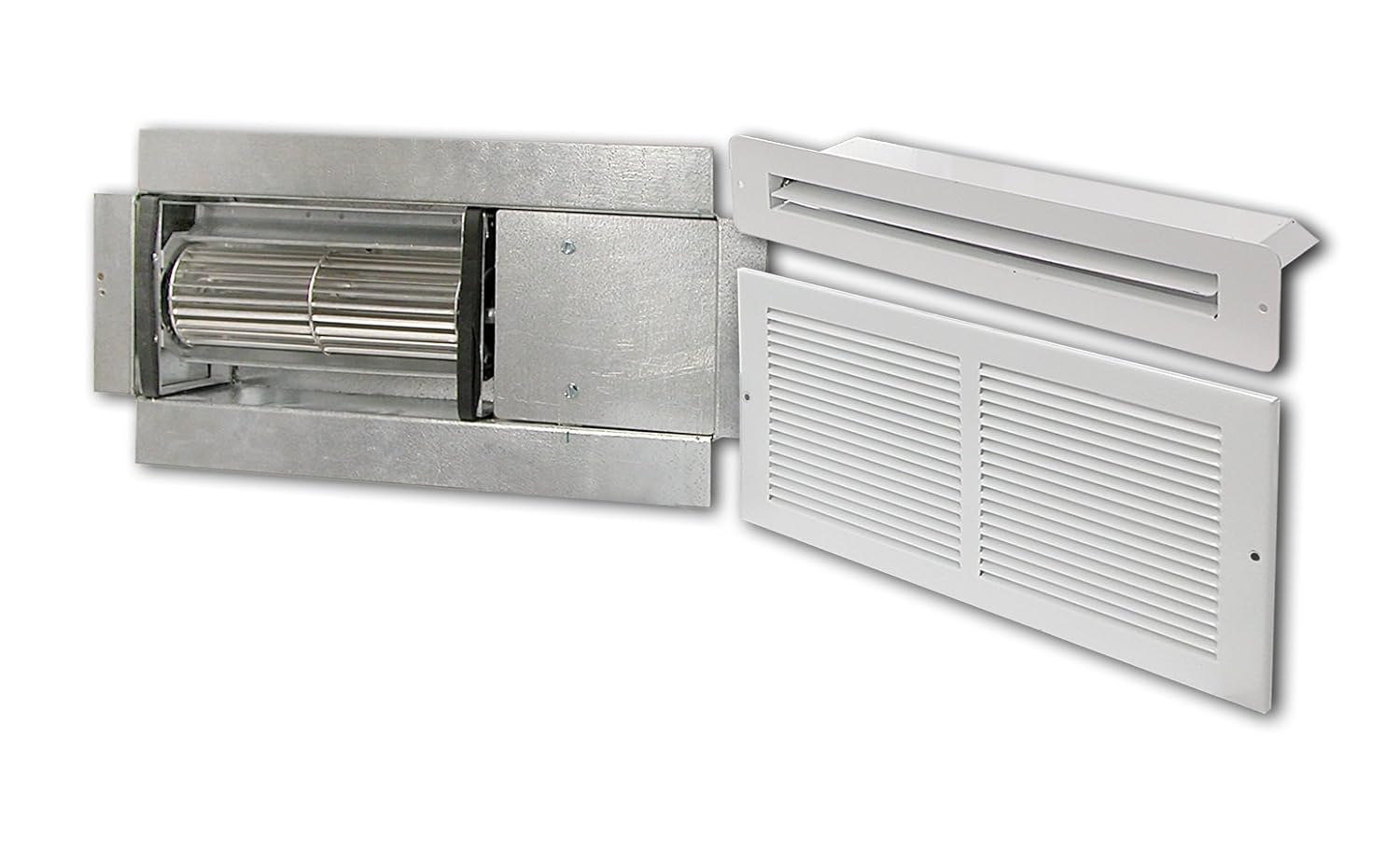

The AS1 AireShare Fan Ventilator is perfect for redistributing heat from fireplaces, stoves, or ductless split systems. It includes all necessary grilles and has a compact, low-profile design. The quiet blower minimizes noise transfer while maintaining efficient air circulation.
Product Information
Standard Information
-
Brand: Tjernlund
-
Model: AS1
-
Color: Red
-
Power Source: Hardwired
-
Air Flow Capacity: 70 CFM
Technical Specifications
-
Voltage: 120 V AC
-
Wattage: 25 W
-
Amplitude: 0.5 A
-
Maximum Airflow: 60 CFM
-

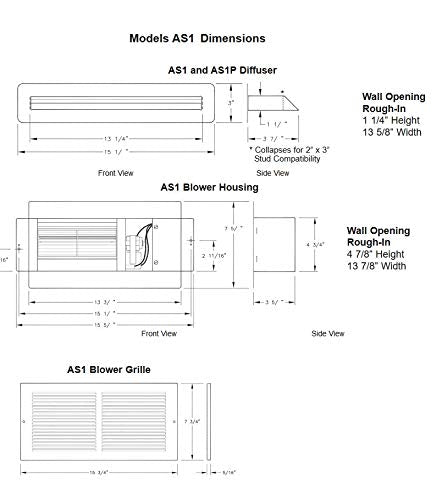

Dimensions: 3 inches (Depth) x 15 inches (Width) x 4.75 inches (Height)
-
Coverage Area: 150 sq ft
-
Noise Level: 1 Sone
-
Grille Included: Yes
