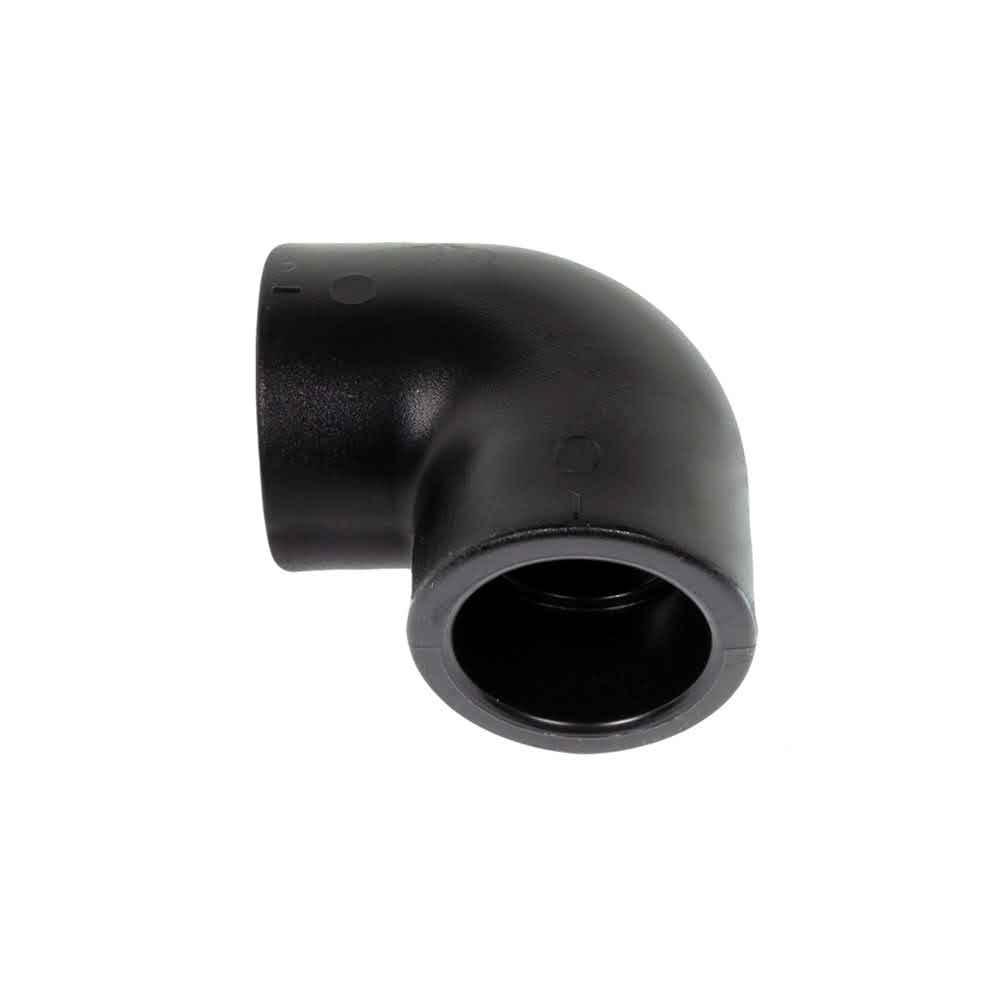

Harco 69-3119D Hdpe 90 Degree Elbow Socket Fusion 1.25 in

Product Description

The HARCO 69-3119D is a 1.25-inch HDPE 90-degree elbow fitting designed for socket fusion water service installations. Made from high-density polyethylene (HDPE), this black fitting is joined using the socket fusion process, which thermally bonds the fitting to compatible HDPE pipe for a leak-free, monolithic joint. HDPE fittings in this configuration are commonly installed by licensed plumbers and water service contractors working on underground or buried potable water lines, well water systems, and municipal water service laterals.

This elbow is suited for residential and light commercial water service applications requiring a 90-degree directional change in a 1.25-inch HDPE piping system. Socket fusion fittings in this size range are typical in well water supply lines, rural water distribution, and service lateral installations where HDPE is specified for corrosion resistance and long service life. Installation must follow manufacturer and industry socket fusion procedures to achieve a proper bond.

Key Features

• 1.25-inch socket fusion connection for thermal bonding to compatible HDPE pipe
• 90-degree elbow geometry for directional changes in water service piping
• Black HDPE construction provides resistance to corrosion and chemical degradation
• Suitable for buried water service and underground potable water applications
• Order increment of 1 for flexible quantity purchasing

Compatibility

Designed as an OEM-style socket fusion fitting for use with 1.25-inch HDPE pipe in water service applications. Confirm pipe SDR rating and HDPE material compatibility before installation.

Installation Notes

Socket fusion fittings must be installed by a qualified plumber or pipefitter using proper socket fusion tooling, including a fusion iron set to the correct temperature for HDPE. Always shut off and depressurize the water supply line before cutting and preparing pipe ends. Pipe and fitting surfaces must be clean, dry, and free of contamination before fusion. Follow applicable local plumbing codes and ASTM or manufacturer socket fusion procedures for joint preparation, heating, and assembly.

Technical Specifications

• Connection Size: 1.25 inches
• Connection Type: Socket Fusion
• Fitting Angle: 90 degrees
• Material: HDPE (High-Density Polyethylene)
• Color: Black
• Application: Water Service
• Order Increment: 1

Standard Information

• Brand: HARCO
• Manufacturer Part Number: 69-3119D
