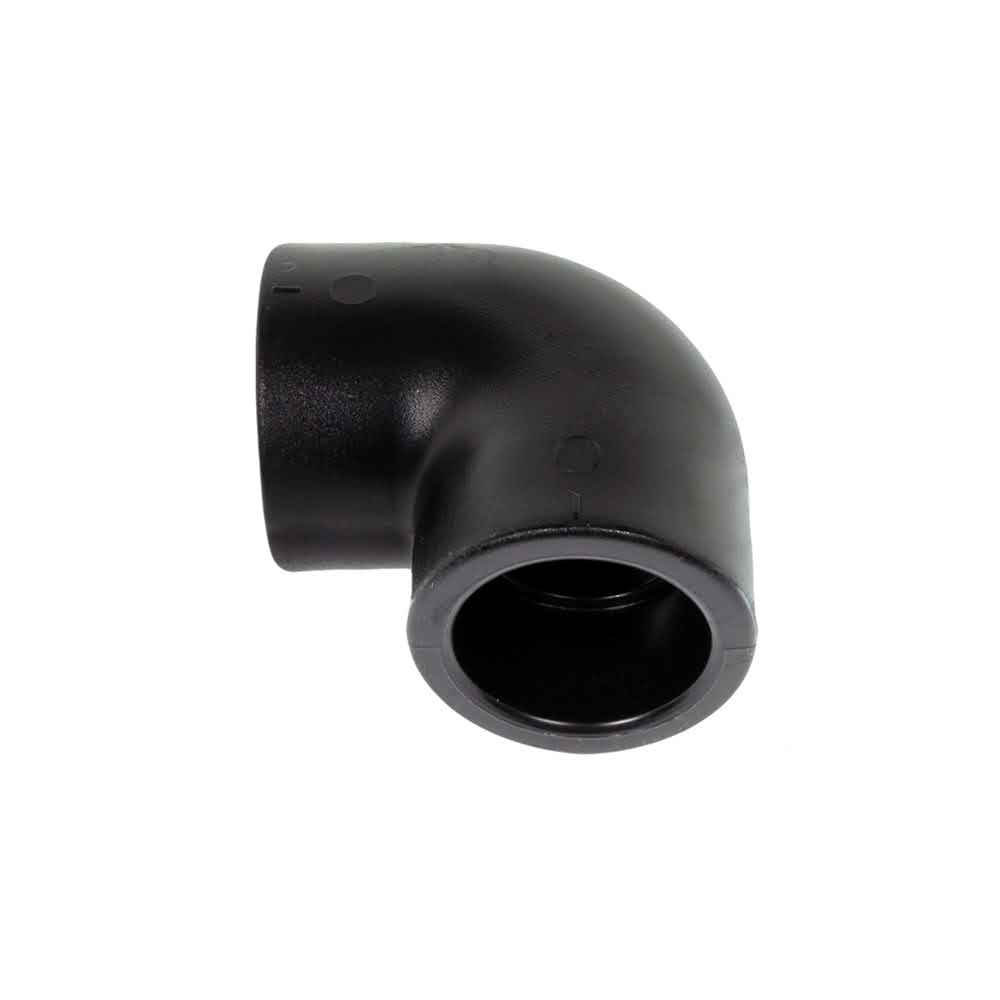

Harco 69-3119B Hdpe 90 Degree Elbow Socket Fusion 3/4 in

Product Description

The HARCO 69-3119B is a 3/4-inch HDPE socket fusion 90-degree elbow designed for water service piping applications. This black high-density polyethylene fitting connects two pipe runs at a right angle using the socket fusion joining method, which produces a strong, leak-free bond when performed with the correct fusion tooling. It is intended for use in buried or above-grade potable water distribution systems and is installed by plumbers, irrigation contractors, and utility pipe crews working with HDPE piping systems.

This fitting is suited for residential and light commercial water service lines where HDPE pipe is specified. Socket fusion HDPE fittings are commonly installed in direct-bury water mains, well water supply lines, and rural water distribution laterals. The black colorway is standard for water service HDPE, providing UV resistance when exposed sections are present. Contractors working with 3/4-inch HDPE systems will find this elbow appropriate for directional changes in tight routing conditions.

Key Features

• 3/4-inch socket fusion end connections for a full-bore, monolithic joint
• 90-degree change of direction for water service pipe routing
• High-density polyethylene (HDPE) construction for corrosion and chemical resistance
• Black material provides inherent UV stabilization for exposed installations
• Order increment of 1, allowing single-piece purchasing

Compatibility

Designed as an OEM-style socket fusion fitting for 3/4-inch HDPE water service pipe systems following standard HDPE socket fusion dimensions.

Installation Notes

Socket fusion HDPE fittings are installed by trained plumbers or pipe fusion technicians using calibrated socket fusion tools that simultaneously heat the pipe OD and fitting socket to the correct melt temperature before joining. Shut off and depressurize the water line before cutting into any live service. Follow the pipe and fitting manufacturer fusion time, heat, and cooling guidelines as required by ASTM F2389 and applicable local plumbing codes. Do not disturb the joint until the full cool-down period has elapsed.

Technical Specifications

• Material: High-Density Polyethylene (HDPE)
• Color: Black
• Connection Type: Socket Fusion
• Pipe Size: 3/4 inches
• Angle: 90 degrees
• Application: Water Service
• Order Increment: 1

Standard Information

• Brand: HARCO
• Manufacturer Part Number: 69-3119B
