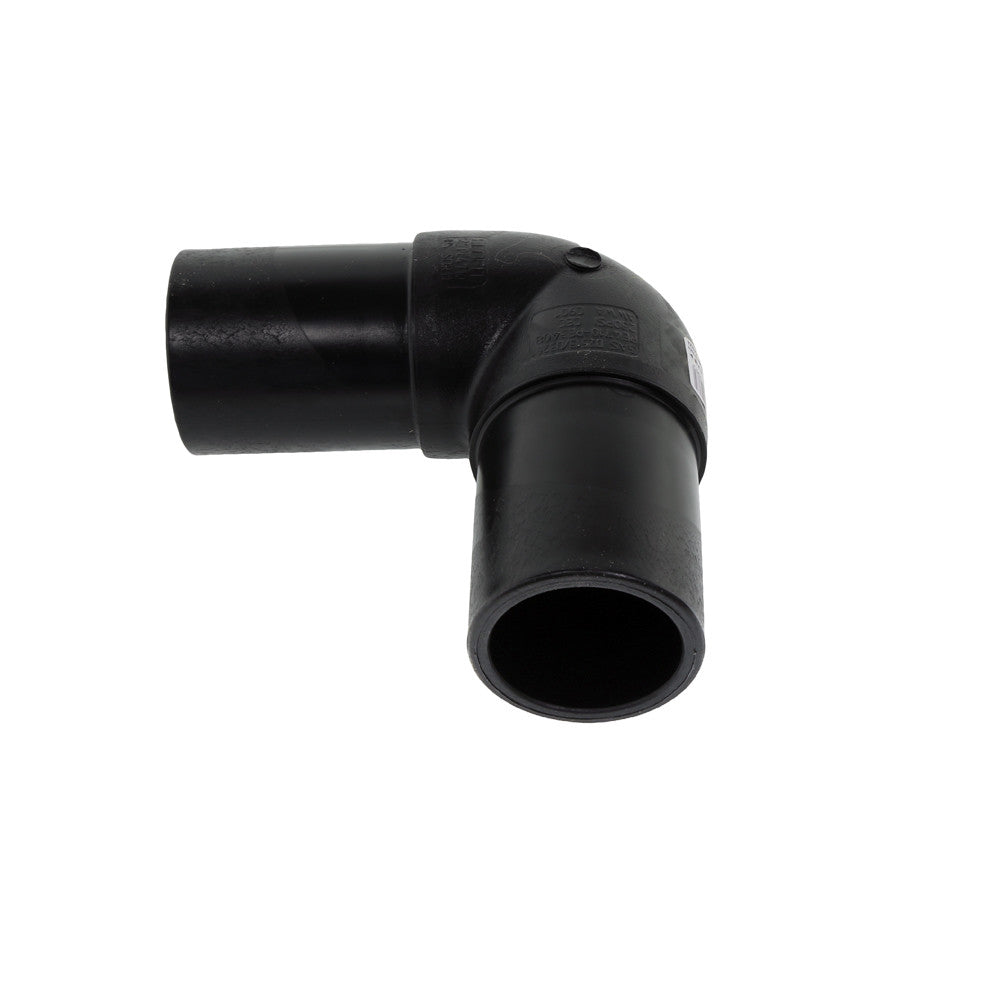

Harco 66-3119E Hdpe Butt Fusion 90 Degree Elbow 1.5 in

Product Description

The HARCO 66-3119E is a 1.5-inch HDPE butt fusion 90-degree elbow designed for water service piping applications. This fitting joins two pipe runs at a right angle using the butt fusion joining method, which creates a continuous, monolithic connection with no mechanical fasteners and no potential leak points at the joint. Made from black high-density polyethylene, it is suited for underground and direct-bury water distribution installations. Licensed plumbers and utility contractors are the primary installers of this fitting type.

This elbow is used in residential and commercial water service lines where directional changes are required in the piping layout. Black HDPE coloring indicates UV-stabilized material suitable for outdoor and below-grade environments. The butt fusion connection method requires compatible fusion equipment sized for 1.5-inch pipe and fittings, making this component appropriate for projects where fusion jointing is the specified installation method.

Key Features

• 1.5-inch nominal size for standard water service pipe runs
• 90-degree elbow geometry for right-angle direction changes
• Butt fusion joining method for leak-free, monolithic connections
• Black HDPE construction with UV stabilization for outdoor and direct-bury use
• No mechanical fasteners or gaskets required at the fusion joint

Compatibility

Designed as an OEM-style butt fusion fitting compatible with 1.5-inch HDPE water service pipe joined by the butt fusion method.

Installation Notes

Installation requires a qualified plumber or piping contractor using properly sized and calibrated butt fusion equipment. All water service lines must be depressurized and drained before cutting into existing pipe. Follow applicable local plumbing codes and ASTM or AWWA standards for HDPE butt fusion procedures, including proper pipe end facing, fusion temperature, and hold time. Do not attempt to install this fitting using solvent cement or mechanical compression methods.

Technical Specifications

• Nominal Size: 1.5 inches
• Fitting Type: 90-Degree Elbow
• Joining Method: Butt Fusion
• Material: High-Density Polyethylene (HDPE)
• Color: Black
• Application: Water Service
• UPC: 512190190082
• Order Increment: 1

Standard Information

• Brand: HARCO
• Manufacturer Part Number: 66-3119E
