Hanwha Vision SBD-180PMW Pole Mount Base (187.1 x 50.5 mm)

Brand: HANWHA VISION
SKU: SBD-180PMW
Availability: In Stock

Ships same day if ordered by 12 pm
$153.81
$153.81
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

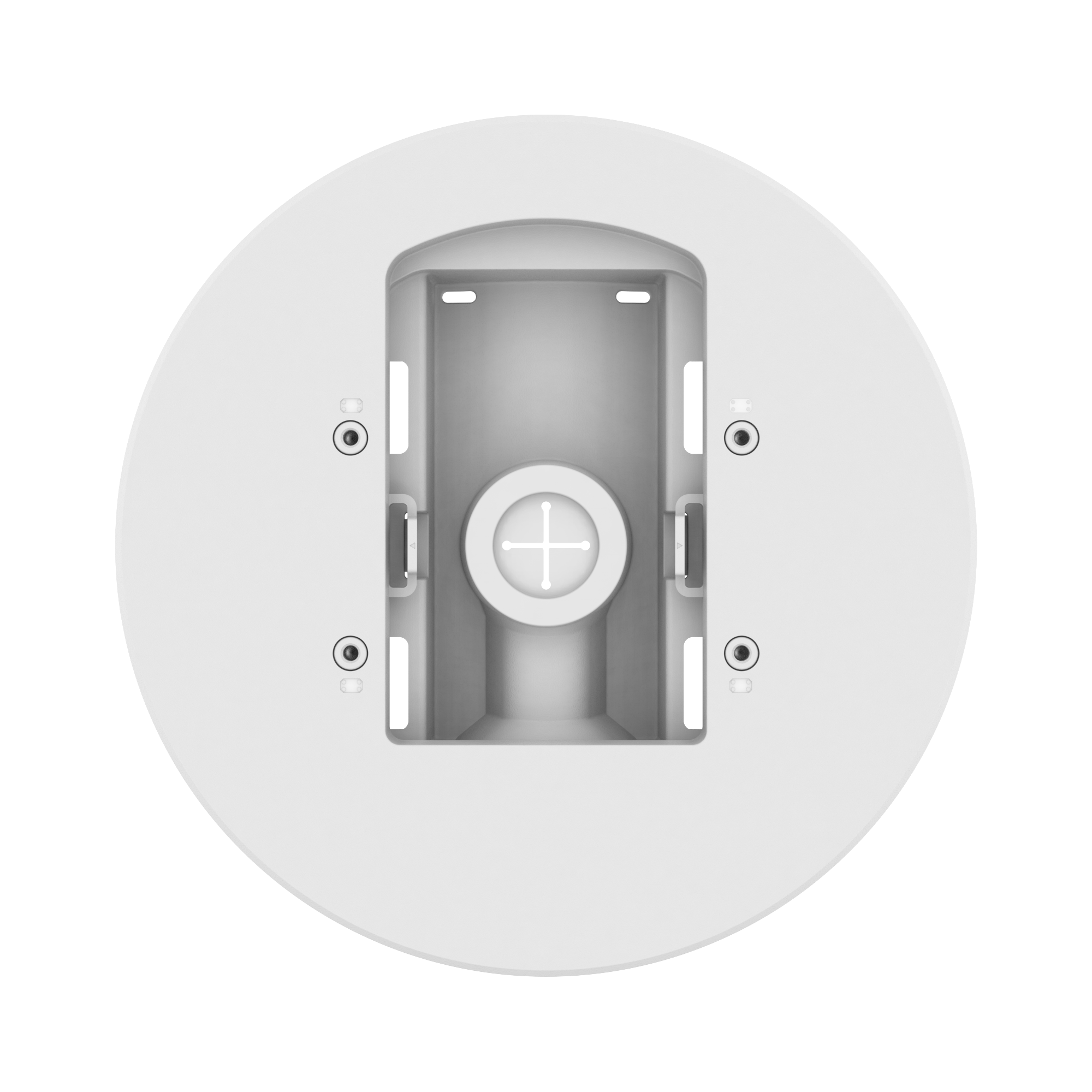

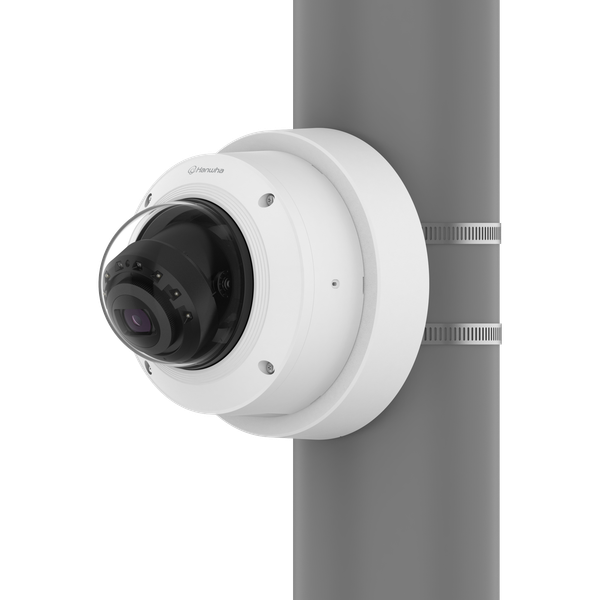

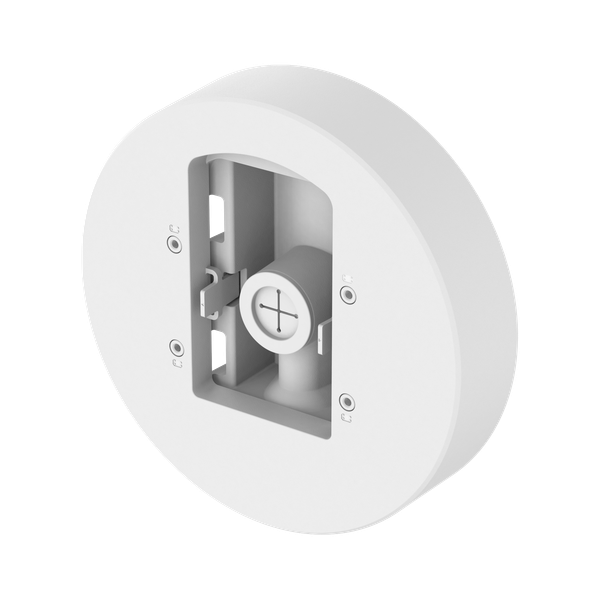

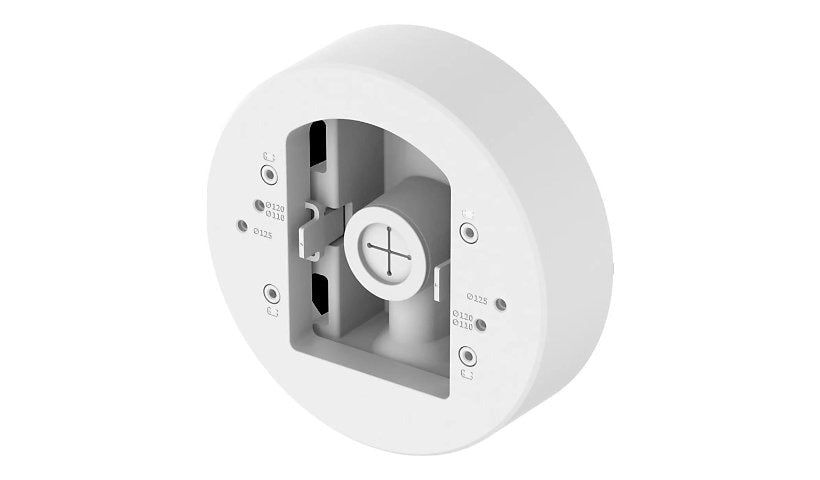

The Hanwha Vision SBD-180PMW is a pole mount base for surveillance cameras with an aluminum core and polycarbonate (plastic) cap designed for outdoor pole installation. It measures 187.1 x 50.5 mm, weighs about 370 g, and supports up to 5 kg. The fixed mount accepts TR20 camera screws and TR30 steel strap screws and provides an M25 (19.1 mm) conduit entry for wiring. It is compatible with multiple Hanwha Vision dome and bullet camera models.

  • Aluminum core with polycarbonate plastic cap; designed for outdoor pole mounting and supports up to 5 kg
  • Dimensions 187.1 x 50.5 mm; weight approximately 370 g; conduit hole 19.1 mm (M25)
  • Mount screw sizes TR20 for camera and TR30 for steel strap; compatible with many Hanwha Vision dome and bullet cameras

Product Highlights

Aluminum-core pole mount base, 187.1 x 50.5 mm, 370 g, supports 5 kg, TR20/TR30 mounting, M25 conduit

Product Information

Standard Information

  • Brand: HANWHA VISION
  • Manufacturer Part Number: SBD-180PMW
  • Country of Origin: Vietnam
Technical Specifications
Brand
Hanwha Vision
Manufacturer
Hanwha Group
Manufacturer Part Number
SBD-180PMW
Model
SBD-180PMW
Product Type
Pole mount base
Product Series
SBD
Materials
Aluminum (core), Polycarbonate / Plastic (cap)
Core Material
Aluminum
Cap Material
Polycarbonate (Plastic)
Dimensions
Ø7.37 x 1.99 inches (187.1 x 50.5 mm)
Diameter
7.37 inches (187.1 mm)
Height
1.99 inches (50.5 mm)
Weight
0.82 lb (370 g)
Max Load
5 kg
Conduit Hole
19.1 mm (M25)
Conduit
M25
Mount Screw Size
TR20 (camera), TR30 (steel strap)
Mount Type
Pole mount
Adjustments
Fixed
Environment
Indoor, Outdoor
Compatibility
Compatible with multiple Hanwha Vision / WiseNet dome and bullet models including PNV-A6081R/A9081R; PND-A6081RV/A9081RV; XNV-6083R/8083R/8093R/9083R; XNV-6123R; XNV-6083Z/8083Z; XNV-6083RZ/8083RZ/9083RZ; XND-8082RV/9082RV; XND-6083RV/8083RV/8093RV/9083RV; XNF-9010RV/9013RV; XNO-6083R/8083R/9083R and select C-series models
Country of Origin
Vietnam
Certifications
NDAA, CE, EAC, FCC, UL
Packaged Quantity
1
UPC
8801089220608
UNSPSC Code
31162308
