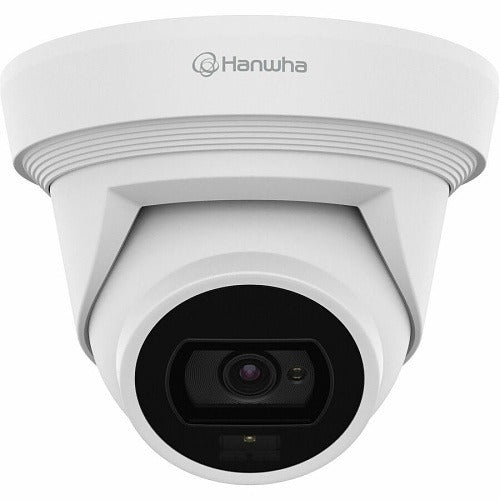

Hanwha Vision QNE-C9013RL 8MP Fisheye Ip Dome Camera

Product Description

The HANWHA VISION - US QNE-C9013RL is an 8-megapixel fisheye IP dome camera built for professional surveillance installations. It features a 3mm fixed focal length lens that delivers a wide panoramic field of view, white LED illumination for low-light and nighttime coverage, and an IP67-rated housing for protection against dust and water ingress. The integrated AI processing supports on-camera analytics, making it a capable option for sites where edge-based detection is preferred over server-side processing. Licensed security integrators and surveillance technicians are the primary installers of this unit.

This camera is suited for indoor and outdoor deployment in commercial and light-industrial environments where broad-area coverage is needed from a single mount point. The fisheye lens geometry allows a single camera to cover large open spaces such as lobbies, warehouses, retail floors, and parking areas. AI-enabled analytics help reduce false alerts and support occupancy and motion-based event triggers without additional server licenses.

Key Features

• 8MP image sensor for high-resolution panoramic video capture
• 3mm fisheye lens provides wide-area coverage from a single install point
• Built-in white LED illumination for full-color low-light performance
• IP67-rated enclosure resists dust ingress and water exposure
• On-board AI processing supports edge-based video analytics
• IP dome form factor suits ceiling-mount applications in commercial spaces

Compatibility

Designed as an OEM-style IP dome camera for integration into professional IP video surveillance systems supporting standard ONVIF-compliant network video recorders and video management software.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with local codes and the NEC. Power down the network switch port or PoE injector before making cable connections. Use a shielded Cat5e or Cat6 cable run and ensure the RJ45 termination is weatherproofed when the camera is mounted in an exposed outdoor location. Do not force the dome housing threads; hand-tighten and follow the manufacturer torque guidance in the installation sheet.
