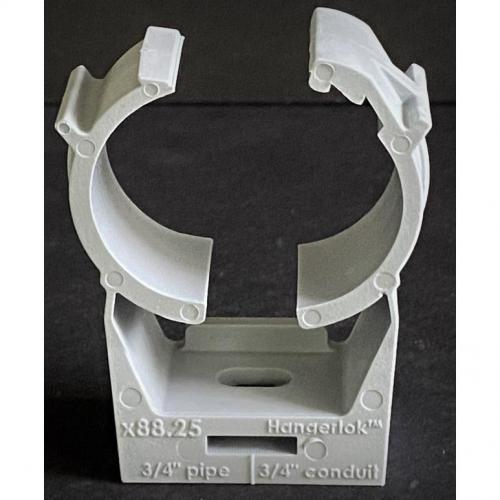

Hangerlok h88.25-lok 3/4 Inch Ips Nylon Pipe Hanger and Conduit Support

Product Description

The Hangerlok H88.25-LOK is a 3/4 inch IPS nylon pipe hanger and conduit support designed for use in construction, OEM, and mechanical systems applications. This one-piece, auto-locking support is built from Nylon 6/6 polymer, a high-performance thermoplastic material that offers strength, flexibility, and long service life. The H88.25-LOK is engineered to meet the demands of HVAC installers, plumbers, electricians, and mechanical contractors who need a reliable, code-friendly hanger that installs quickly and holds securely. The hanger accepts pipe or conduit with an outside diameter ranging from 0.98 inches minimum to 1.09 inches maximum, making it a precise fit for standard 3/4 inch IPS pipe. The overall width of the hanger is 1.21 inches, with a body thickness of 0.80 inches, giving it a compact profile that works well in tight spaces. The Nylon 6/6 construction includes both a UV inhibitor and a flame retardant additive. This means the H88.25-LOK can be used indoors in mechanical rooms, utility areas, and commercial buildings, as well as in exposed outdoor environments where sunlight and weather are a concern. The material is halogen free and non-conductive, which makes it suitable for use with copper, PVC, CPVC, and metal conduit alike. The auto-locking design allows for fast, tool-free installation. The hanger snaps securely onto the pipe or conduit and stays in place without additional hardware. This speeds up installation time on large runs and reduces labor costs. Trade professionals who work on multi-unit residential, commercial, or industrial projects will find the H88.25-LOK to be a consistent, dependable choice for pipe and conduit support at the 3/4 inch size. It is a direct replacement for standard thermoplastic hangers and is compatible with threaded rod suspension systems.

• Nylon 6/6 construction with UV inhibitor and flame retardant for indoor and outdoor use
• Auto-locking one-piece design for fast, tool-free installation on pipe and conduit
• Non-conductive and halogen free, compatible with copper, PVC, CPVC, and metal conduit

Product Highlights

The Hangerlok H88.25-LOK delivers a durable, code-friendly pipe and conduit support solution for 3/4 inch IPS applications. Its Nylon 6/6 material, UV resistance, and snap-lock design make it a practical choice for both interior mechanical systems and exposed outdoor installations.

Product Information

Standard Information

• Brand: HANGERLOK
• Manufacturer Part Number: H88.25-LOK

Technical Specifications

• Size: 3/4 inch IPS
• Material: Nylon 6/6
• Width: 1.21 inches
• Minimum Pipe Outside Diameter: 0.98 inches
• Maximum Pipe Outside Diameter: 1.09 inches
• Body Thickness: 0.80 inches
