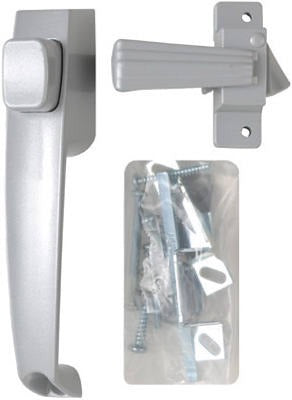

Hampton Products-wright V333 Aluminum Push Button Latch

Product Description

The HAMPTON PRODUCTS-WRIGHT V333 is an aluminum push button latch designed for out-swinging wood or metal doors. It fits doors ranging from 1 inch to 1-1/4 inches in thickness and installs through three 5/16-inch holes with a hole spacing of 1-3/4 inches. The latch includes two sizes of strikes and shims to allow field adjustment for positive latching. A no-lockout feature prevents accidental lockouts during operation. For applications requiring keyed entry, the V333 can be converted to a key locking set using a V3 cylinder, sold separately. Licensed contractors and door hardware installers typically handle this type of installation.

The V333 is suited for residential and light commercial gate or door applications where a simple, tool-operable latch is required on out-swinging wood or metal door panels. Its adjustable strike system makes it a practical choice in new construction and retrofit situations where door alignment may vary. The push button operation provides straightforward, hardware-level access control without requiring a full lockset.

Key Features

• Aluminum construction for corrosion resistance in exterior door applications
• Fits door thicknesses from 1 inch to 1-1/4 inches
• Installs in three 5/16-inch holes with 1-3/4-inch hole spacing
• Includes two sizes of strikes and shims for field-adjustable latching
• No-lockout feature prevents accidental lockouts
• Convertible to key locking set using V3 cylinder (sold separately)

Compatibility

Designed for out-swinging wood or metal doors with a thickness between 1 inch and 1-1/4 inches. Compatible with key locking conversion using the V3 cylinder.

Installation Notes

Installation is performed by door hardware technicians or general contractors following standard door prep procedures. Ensure the door is fully closed and stable before marking hole locations. Use a drill with a 5/16-inch bit for the three required mounting holes spaced at 1-3/4 inches. Select the appropriate strike and shim size from the included hardware to achieve proper latch engagement before final fastening.
