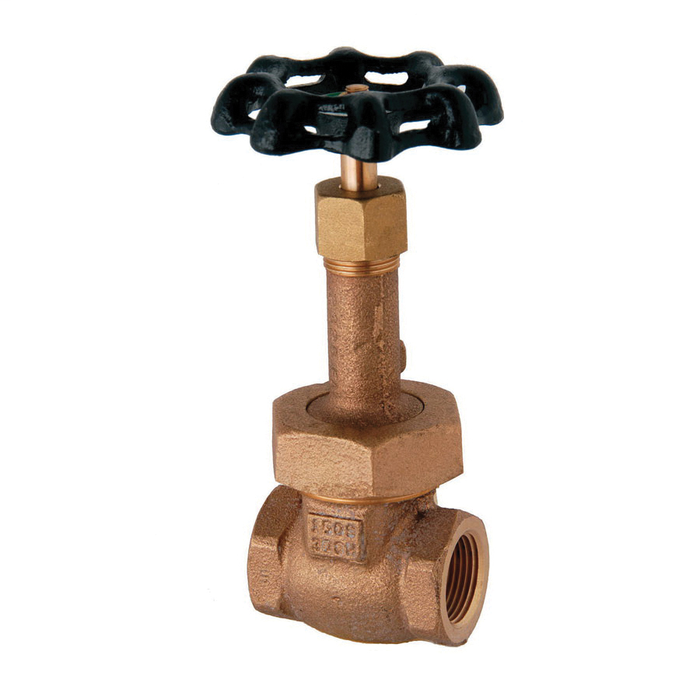

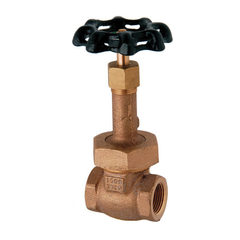

Hammond Valve 629000200 Bronze Gate Valve 2 in Threaded

Product Description

The HAMMOND VALVE 629000200 is a 2-inch rising stem bronze gate valve designed for threaded pipe connections in commercial and industrial fluid control applications. Rated at 150 psi steam working pressure (SWP) and 300 psi water-oil-gas (WOG), this valve delivers dependable full-bore shutoff in demanding service conditions. The rising stem design provides a clear visual indication of valve position, making it easy for technicians to confirm open or closed status at a glance. Bronze construction offers strong resistance to corrosion in water, oil, and gas service environments.

This gate valve is suited for plumbing, HVAC hydronic systems, fire protection, and light industrial piping where a full-bore isolation valve with threaded end connections is required. The 2-inch NPT threading makes it compatible with standard schedule pipe in both residential and light commercial mechanical systems. Licensed plumbers and pipefitters are the primary installers of this valve in new construction and retrofit service work.

Key Features

• Rising stem design provides visual open/closed position indication
• 150 psi steam working pressure (SWP) rating
• 300 psi water-oil-gas (WOG) pressure rating
• Bronze body construction for corrosion resistance in water, oil, and gas service
• Threaded end connections for standard NPT pipe installation
• Full-bore design minimizes flow restriction when fully open

Compatibility

Designed as an OEM-style replacement or new-installation gate valve for 2-inch threaded pipe systems rated for steam, water, oil, or gas service up to the listed pressure ratings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC). Isolate and depressurize the system completely before removing an existing valve or making any pipe connections. Use appropriate pipe thread sealant or PTFE tape on all NPT threads and verify joint integrity before returning the system to service. Do not exceed the rated SWP or WOG pressure limits for the application.

Technical Specifications

• Pipe Size: 2 inches
• Valve Type: Gate Valve
• Stem Type: Rising Stem
• End Connection: Threaded (NPT)
• Body Material: Bronze
• Steam Working Pressure (SWP): 150 psi
• Water-Oil-Gas Pressure (WOG): 300 psi

Standard Information

• Brand: HAMMOND VALVE
• Manufacturer Part Number: 629000200
