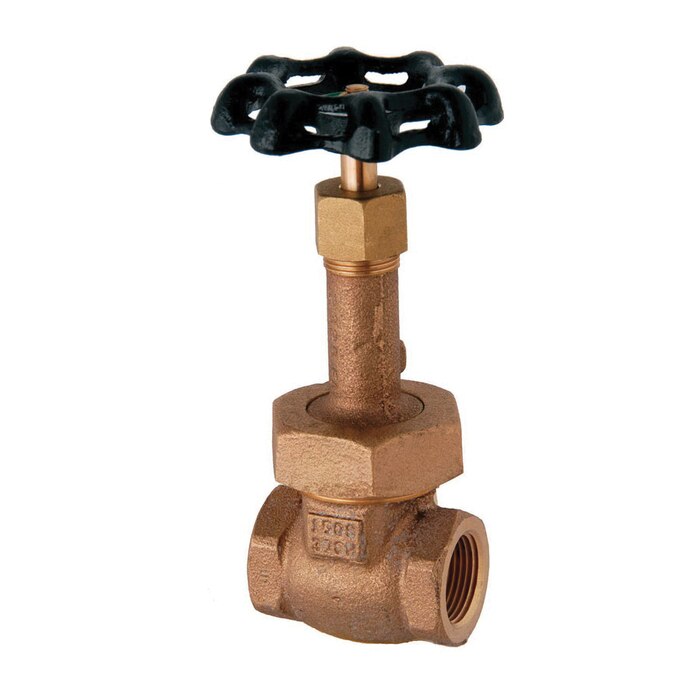

Hammond Valve 629000100 Bronze Gate Valve 1 Inch

Product Description

The HAMMOND VALVE 629000100 is a bronze gate valve designed for fluid isolation in commercial and residential plumbing, heating, and industrial piping systems. Built with a rising stem configuration, this valve provides a clear visual indicator of open or closed position during operation. The threaded end connections allow for straightforward integration into standard pipe assemblies. Rated at 150 SWP and 300 WOG, this valve handles demanding service conditions across a wide range of cold and hot water applications. Licensed plumbers and pipefitters install this type of valve as a reliable shutoff point in distribution and process lines.

This gate valve is suited for use in water distribution, HVAC hydronic systems, industrial piping, and general plumbing service lines. The 1-inch nominal pipe size fits common residential and light commercial branch and main line applications. The threaded connection style is compatible with standard NPT pipe fittings, making it a practical choice for retrofit and new construction work alike.

Key Features

• Rising stem design provides visible open or closed indication at a glance
• 150 SWP rating suitable for steam and high-pressure service
• 300 WOG rating for cold water, oil, and gas service applications
• Bronze body construction offers corrosion resistance in wet service environments
• Threaded NPT ends for direct integration with standard pipe fittings
• 1-inch nominal size fits common branch and main line configurations

Compatibility

Designed as an OEM-style replacement or direct installation gate valve for 1-inch threaded NPT piping systems in plumbing, HVAC, and light industrial applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and IFGC codes. Shut off and depressurize the system fully before removing any existing valve or making threaded connections. Use appropriate thread sealant or PTFE tape on all NPT connections and avoid overtightening, which can crack bronze fittings. Verify the valve is oriented correctly for the intended flow direction before returning the system to service.

Technical Specifications

• Valve Type: Gate Valve
• Stem Type: Rising Stem
• End Connection: Threaded NPT
• Body Material: Bronze
• Nominal Size: 1 inch
• Pressure Rating: 150 SWP / 300 WOG

Standard Information

• Brand: HAMMOND VALVE
• Manufacturer Part Number: 629000100
