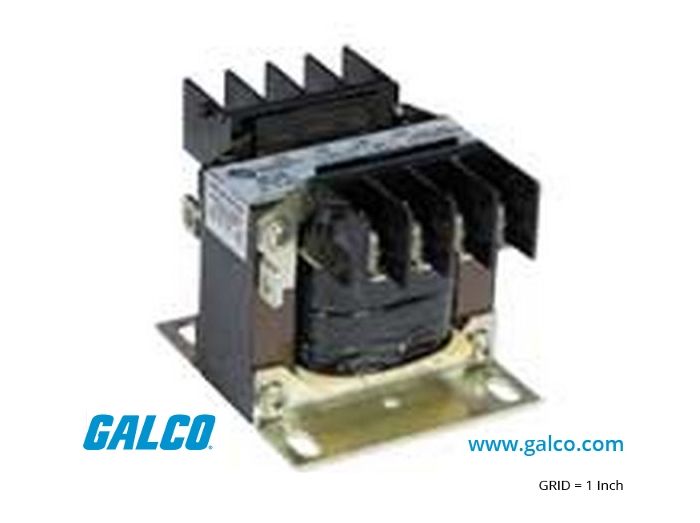

Hammond SP150SR Control Power Transformer 150 VA HPS Spartan Series

Product Description

The Hammond SP150SR is a control power transformer with a capacity of one hundred fifty VA from the HPS Spartan series, suitable for general purpose and light duty applications. This transformer is designed to operate effectively without high inrush or machine tool duty requirements. The single-phase transformer features a multi-voltage primary setup, accommodating voltages of two hundred eight to four hundred sixteen volts. It has a secondary voltage of twelve to twenty-four volts and is equipped with molded terminal blocks for ease of installation.

• Single-phase control power transformer
• Primary voltage: 208x416V, Secondary voltage: 12x24V
• Open style with molded terminal blocks

Product Highlights

This transformer includes a vacuum-impregnated polyester resin and is oven cured to enhance durability. The unit is designed for environments that require reliable performance in control power applications.

Product Information

Standard Information

• Manufacturer: Hammond Power Solutions
• MPN: SP150SR

Technical Specifications

• Type of Transformer: Control Power
• VA Rating: 150 VA
• Phase: Single Phase
• Primary Voltage: 208 V, 416 V
• Secondary Voltage: 12 V, 24 V
• Insulation Class: Class B
• Temperature Rise: 176 °F
• Net Weight: 4.3 lbs
• Dimensions: 2.99 inches H x 2.85 inches W x 4.29 inches D
