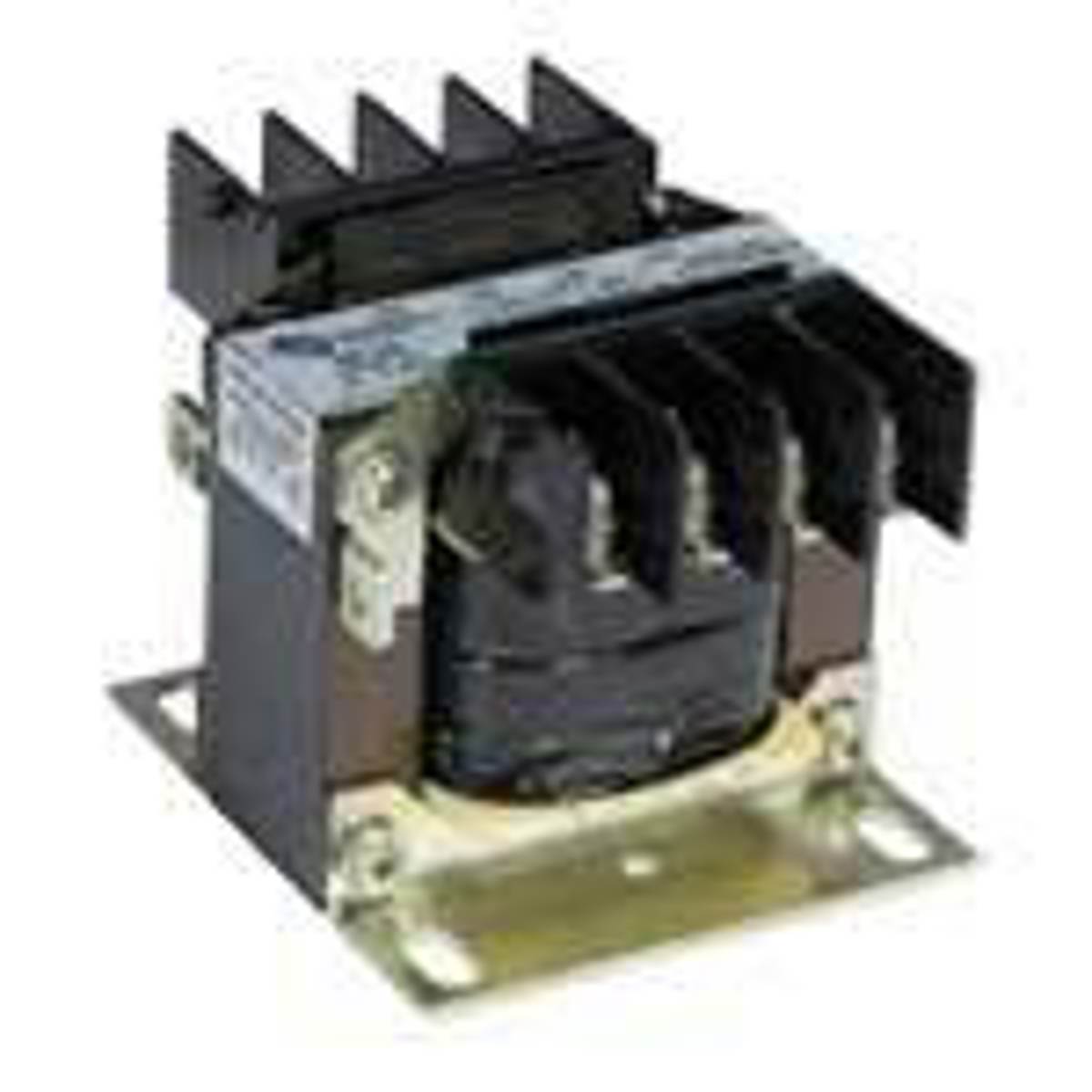

Hammond SP100PR 100 VA 120 x 240 Primary Volt 120 x 240 Secondary Volt Control Transformer

Product Description

The Hammond SP100PR is a reliable control transformer designed for general use. It operates with a primary voltage of one hundred twenty to two hundred forty volts and a secondary voltage of eleven to twenty-two volts at one hundred VA. This transformer is ideal for various applications such as HVAC, alarm systems, and motor control circuits.

• Functions well for HVAC and lighting circuits.
• Utilizes an open style core and coil design.
• Rated for operation at 50/60 Hz frequency.

Product Highlights

This industrial open-style control transformer ensures consistent performance for standard commercial loads without high inrush current.

Product Information

Standard Information

• Brand: Hammond Power Solutions
• Sub Brand: Industrial Open-Style Control Transformer

Technical Specifications

• Catalog Number: SP100PR
• Primary Voltage: 120 - 240 V
• Secondary Voltage: 12 - 24 V
• Wattage: 100 VA
• Temperature Rating: 40 C
• Height: 2.85 inches
• Width: 3.74 inches
• Length: 2.99 inches
• Frequency Rating: 50/60 Hz
• Enclosure: Core and Coil
• Mounting Type: Panel Mount
• Applications: HVAC, signals and alarm systems, motor control circuits, lighting and circuit isolation
