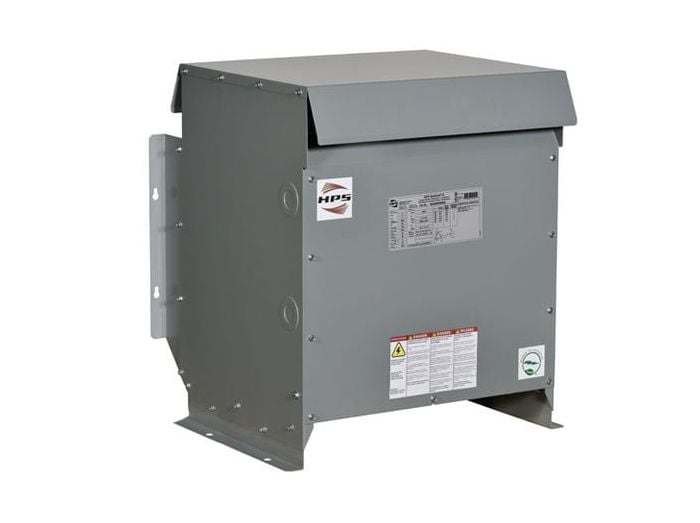

Hammond SG3N0037LE D16 SNTL-G3 1PH37.5kVA 240X480-120/240V AL 60Hz150C 3R

Product Description

The Hammond SG3N0037LE D16 SNTL-G3 is a 1PH 37.5kVA transformer with 240X480 primary voltage and 120/240V secondary voltage, operating at 60Hz. It features an aluminum winding and a NEMA 3R enclosure. This energy-efficient distribution transformer is designed for ventilated construction and is suitable for wall or ceiling mounting.

• Energy Efficient Distribution Transformer
• Primary Voltage 240 x 480 Volt AC
• Secondary Voltage 120/240 Volt AC

Product Highlights

This Hammond transformer is ideal for supplying power to appliances, lighting, heating, and motorized machine loads from electrical distribution systems.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: SG3N0037LE

Technical Specifications

• Brand: HAMMOND
• MPN: SG3N0037LE
• Phase: 1 Phase
• Mounting: Wall/Ceiling
• Standard: UL, CSA
• Enclosure: NEMA 3R
• Construction: Ventilated
• Power Rating: 37.5 Kilovolt Amp
• Product Name: Energy Efficient Distribution Transformer
• Primary Voltage: 240 x 480 Volt AC
• Frequency Rating: 60 Hertz
• Number Of Phases: 1 phase
• Secondary Voltage: 120/240 Volt AC
• Type: Distribution
• VA Rating: 37,000 VA
• Configuration: Dual Primary/Dual Secondary
• NEMA Rating: NEMA 3R
• Insulation Class: Class R
• Temperature Rise (F): 302 °F
