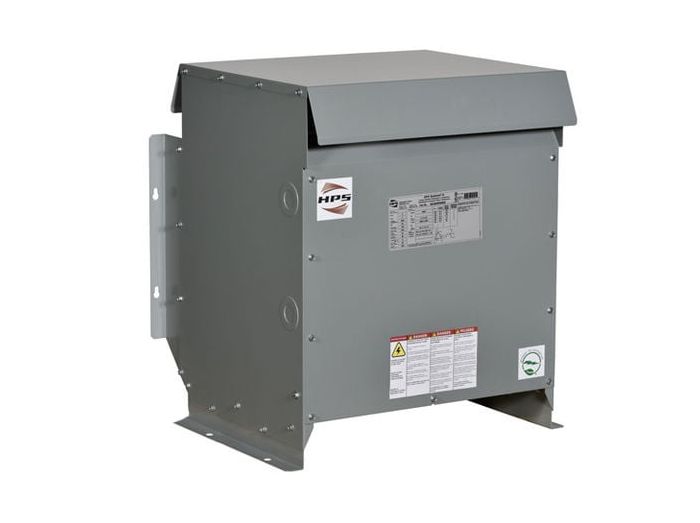

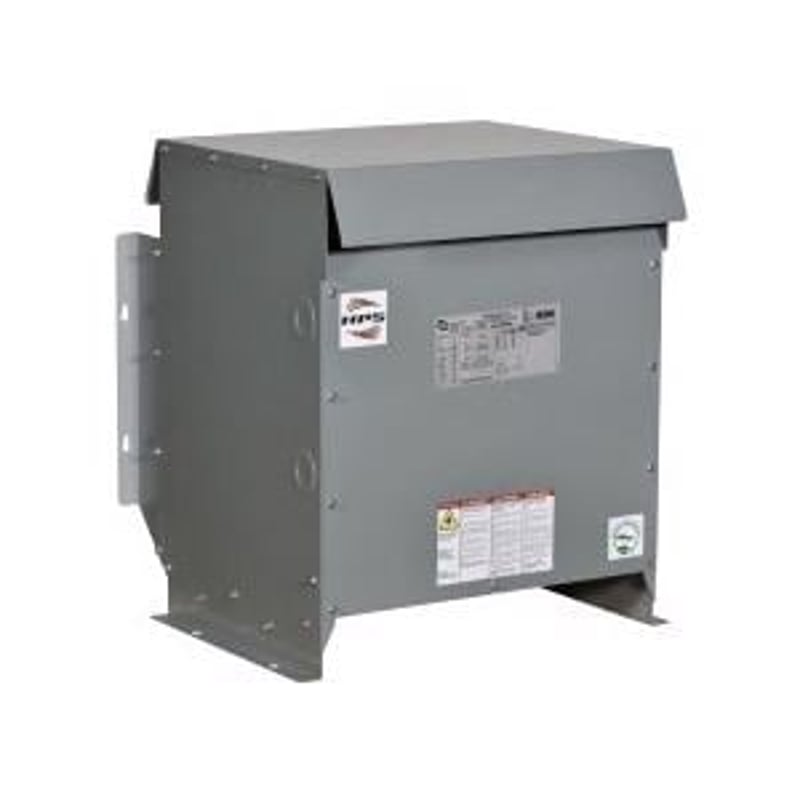

Hammond SG3C0045KD D16 SNTL-G 3PH 45kVA480D-240D/120CT AL 60Hz 150C 3R

Product Description

The Hammond SG3C0045KD D16 SNTL-G is an energy-efficient distribution transformer with a ventilated construction. This 3-phase transformer has a power rating of 45 kVA and a frequency rating of 60 Hz. It is designed for indoor or outdoor applications and can be mounted on the floor or wall. The transformer's primary voltage is 480 V Delta, and the secondary voltage is 240 V Delta/120 V.

• Energy Efficient Distribution Transformer
• Primary Voltage 480 V Delta, Secondary Voltage 240 V Delta/120 V
• NEMA Type 3R Enclosure for indoor/outdoor use

Product Highlights

The Hammond SG3C0045KD is a 45 kVA, 3-phase distribution transformer with a NEMA Type 3R enclosure, suitable for indoor and outdoor applications.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: SG3C0045KD
• Country of Origin: CA|IN|MX|US

Technical Specifications

• MPN: SG3C0045KD
• Brand: HAMMOND
• Phase: 3 Phase
• Mounting: Floor/Wall
• Standard: UL, CSA
• Enclosure: NEMA Type 3R
• Application: Indoor/Outdoor
• Construction: Ventilated
• Power Rating: 45 kVA
• Primary Voltage: 480 V Delta
• Frequency Rating: 60 Hz
• Number Of Phases: 3 Phase
• Secondary Voltage: 120 V, 139 V, 240 V
• Efficiency: 98.40%
• Enclosure Type: DH2-N3R - Indoor/Outdoor
• Connection type: Lug/Pad
• Electrical Phase: 3 Ph
• Material: Aluminum
• Maximum Voltage: 480V, 120V/240V
• Series: Sentinel G
• Product Series: Sentinel G (Gen. 3)
• Family Series: Hammond Power Solutions Transformers, Sentinel G (Gen. 3) Series
• Description: TRANSFORMER
• Type: Distribution
• VA Rating: 45,000 VA
• Configuration: Delta Primary/Delta Secondary
• Enclosed: Yes
• Primary Fuseholder: Not Available
• Secondary Fuseholder: Not Available
• Termination: Connecting Cable
• Insulation Class: Class R
• Temperature Rise (F): 302 °F
• Approvals: CSA, UL
