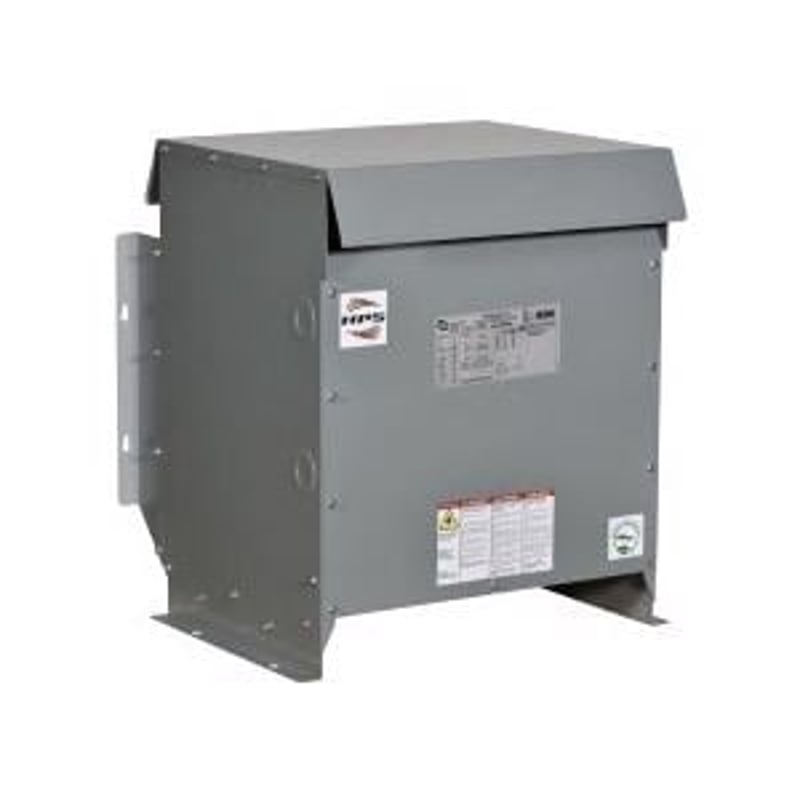

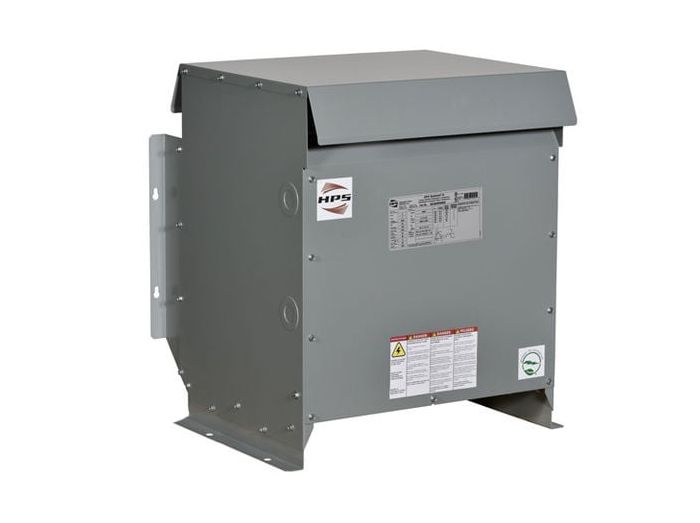

Hammond SG3C0030KD D16 SNTL-G 3PH 30kVA 480D-240D/120CT AL 60Hz 150C 3R

Product Description

The Hammond SG3C0030KD is a D16 SNTL-G energy efficient distribution transformer. This ventilated unit features a primary voltage of 480 V Delta and a secondary voltage of 240 V Delta/120 V. It is designed for indoor or outdoor applications. The transformer has a frequency rating of 60 Hz and a power rating of 30 KVA.

• Energy Efficient Distribution Transformer
• Ventilated Construction
• Suitable for indoor and outdoor applications

Product Highlights

This Hammond transformer is ideal for supplying power to appliances, lighting, heating, and motorized equipment from electrical distribution systems.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: SG3C0030KD
• Country of Origin: CA|IN|MX|US

Technical Specifications

• Brand: Hammond
• MPN: SG3C0030KD
• Phase: 3 Phase
• Mounting: Floor/Wall
• Standard: UL, CSA
• Enclosure: NEMA Type 3R
• Application: Indoor/Outdoor
• Construction: Ventilated
• Power Rating: 30 KVA
• Product Name: Energy Efficient Distribution Transformer
• Primary Voltage: 480 V Delta
• Frequency Rating: 60 Hz
• Number Of Phases: 3 Phase
• Secondary Voltage: 240 V Delta/120 V
• Efficiency: 98.23%
• Enclosure Type: DH2-N3R - Indoor/Outdoor
• Mounting Type: Ceiling/Floor
• Type: Energy Efficient General Purpose
• Connection type: Lug/Pad
• Manufacturer Name: Hammond Power Solutions
• Temperature Rating: 220 Deg C
• Electrical Phase: 3 Ph
• Material: Aluminum
• Maximum Voltage: 480V, 120V/240V
• NEMA Rating: NEMA 3R
• Termination: Connecting Cable
• Insulation Class: Class R
• Temperature Rise (F): 302 °F
• Approvals: CSA, UL
