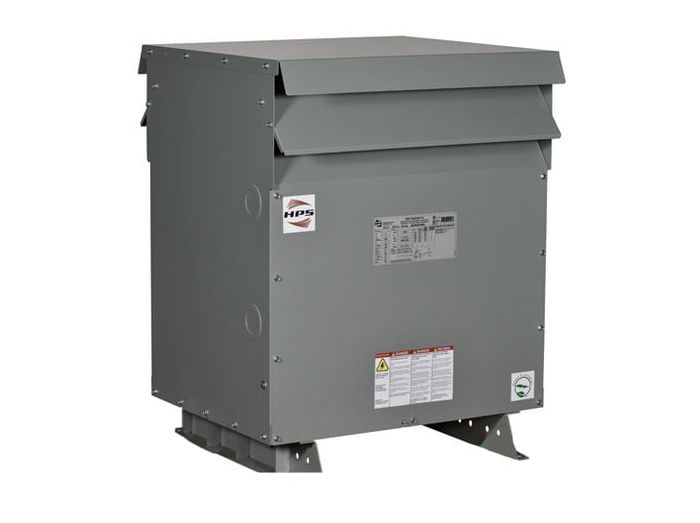

Hammond SG3A0150KB D16 SNTL-G 3PH 150KVA 480D-208Y/120V AL 60HZ 150C 3R Distribution Transformer

Product Description

The HAMMOND SG3A0150KB is a D16 SNTL-G 3PH 150KVA 480D-208Y/120V AL 60HZ 150C 3R distribution transformer. This general-purpose transformer is used for supplying appliance, lighting, heating, motorized machine, and power loads from electrical distribution systems and meets DOE 10 CFR Part 431 efficiency standards.

• Suitable for indoor or outdoor applications with a NEMA 3R enclosure.
• Features precision-wound copper or aluminum conductors.
• Meets North American Efficiency Standards.

Product Highlights

This Hammond Power Solutions distribution transformer has a 150 kVA rating, a primary voltage of 480D V, and a secondary voltage of 208Y/120 V.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: SG3A0150KB
• Country of Origin: MUL

Technical Specifications

• Manufacturer Part Number: SG3A0150KB
• Manufacturer: Hammond Power Solutions
• Product Series: Sentinel G (Gen. 3)
• Family Series: Hammond Power Solutions Transformers, Sentinel G (Gen. 3) Series
• Description: D16 SNTL-G 3PH 150kVA 480D-208Y/120V AL 60Hz 150C 3R
• Phase: 3
• Type: Distribution
• VA Rating: 150,000 VA
• Primary Voltage: 480D V
• Configuration: Delta Primary/Wye Secondary
• Secondary Voltage: 208Y/120 V
• Enclosed: Yes
• Mounting: Ceiling, Floor, Wall
• NEMA Rating: NEMA 3R
• Termination: Connecting Cable
• Insulation Class: 220°C
• Temperature Rise (F): 302 °F
• Approvals: CSA, UL
• Volt Amps: 150kVA
• Alternate Part Number: HPS Sentinel Series
• Series: HPS Sentinel
• Type of Transformer: Distribution
• Application: General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems.
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: SG3A0150KB
• Connection Type: Lug/Pad
• Cooling: Convection cooled
• Country of Origin: MUL
• Efficiency: 99.00 %
• Enclosure: DH4-N3R - Indoor or Outdoor
• Enclosure Type: NEMA 3R
• EU RoHS Indicator: Y
• Height: 44.5 in
• Length: 29.5 in
• Mounting Type: Floor
• Number Of Phases: 3
• Standard: CSA, UL
• Standards: RoHS CompliantUL File No.E112313CSA File No. LR3902
• Sub Brand: Energy efficient General Purpose Distribution Transformer
• Temperature Rating: Typical 30 Average/ 40 Maximum °C
• UNSPSC: 39121001
• UPC 11: 80342312367
• UPC 12: 803423123673
• Width: 31.5 in
• Winding: ALUMINUM
• Brand: HPS (Hammond Power Solutions)
• Frequency Rating: 60 Hz
• Power Rating: 150 kVA
