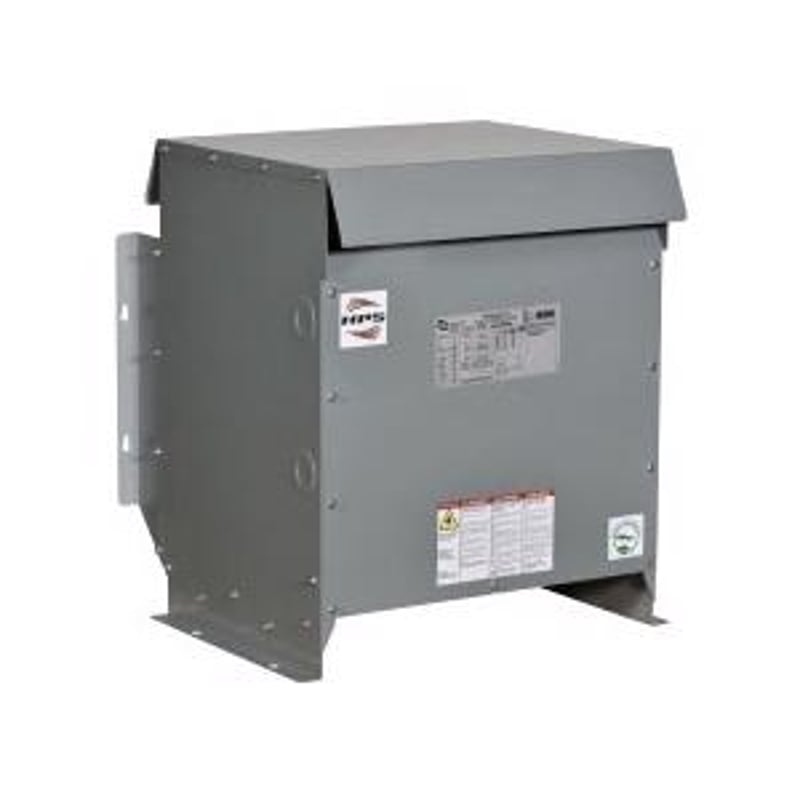

Hammond SG3A0112KB D16 SNTL-G 3PH 112.5kVA 480D-208Y/120V AL 60Hz150C 3R

Product Description

The Hammond SG3A0112KB D16 SNTL-G is an energy-efficient distribution transformer with a ventilated construction. This 3-phase transformer has a primary voltage of 480V Delta and a secondary voltage of 208V Star/120V, operating at 60 Hz. It is suitable for indoor and outdoor applications and can be mounted on the floor or wall.

• Energy Efficient Distribution Transformer
• Primary Voltage 480 V Delta, Secondary Voltage 208 V Star/120 V
• NEMA Type 3R Enclosure for Indoor/Outdoor Use

Product Highlights

This Hammond transformer is ideal for supplying power to appliances, lighting, heating, and motorized equipment from electrical distribution systems.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: SG3A0112KB
• Country of Origin: CA|IN|MX|US

Technical Specifications

• MPN: SG3A0112KB
• Supplier Item #: 415023
• Brand: Hammond
• Phase: 3 Phase
• Mounting: Floor/Wall
• Standard: UL, CSA
• Enclosure: NEMA Type 3R
• Application: Indoor/Outdoor
• Construction: Ventilated
• Power Rating: 112.5 KVA
• Product Name: Energy Efficient Distribution Transformer
• Primary Voltage: 480 V Delta
• Frequency Rating: 60 Hz
• Number Of Phases: 3 Phase
• Secondary Voltage: 208 V Star/120 V
• Enclosure Type: DH3-N3R - Indoor/Outdoor
• Type: Energy Efficient General Purpose
• Connection type: Lug/Pad
• UNSPSC: 39121001
• Volt Amps: 112.500kVA
• Temperature Rise: 150 Deg C
• Winding Type: Aluminum
• Insulation Class: Class R
• Electrical Phase: 3 Ph
• Material: Aluminum
• Maximum Voltage: 480V, 120V/208V
• Certificate: cUL/UL Listed, CSA US
